Can somebody help me draw this part out on solidworks??
It would be soo thank full much if someone would be able to draw this drawing using Solidworks.
4 Answers
This could - literally - be done in one single step...
Just draw half of it, then use the "Revolve" feature to make the part.
It would be great to be drawn out on the software since i don't have Solidworks available to use.
The major diameter is wrong.
A .75-20 UNEF thread should have a major diameter of: 0.7487" - 0.7405". .75" is too large, and out of the acceptable tolerance range.
Also uploaded a SW2019 file if anyone wants to see how to make the 3/4-20 thread without using the Thread tool (since that thread count/pitch is not an option).

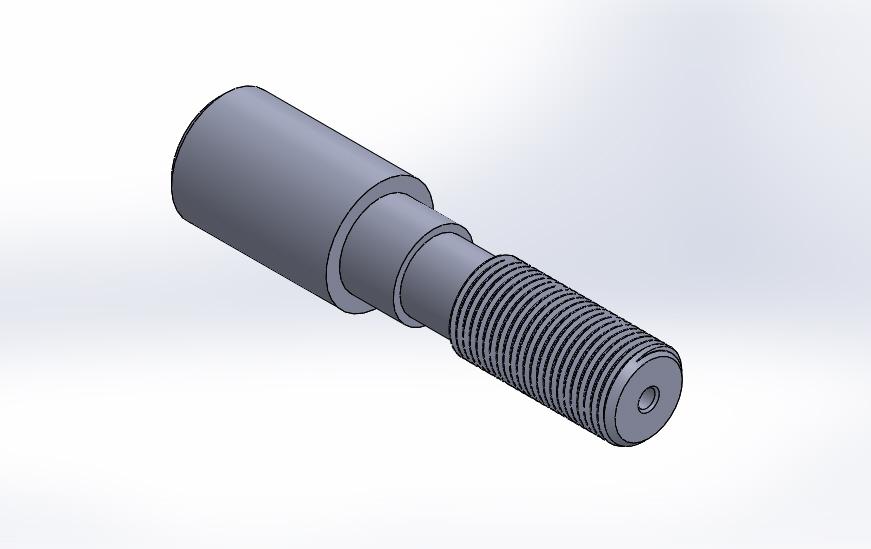

This the model that i can make. I can not make 3/4 - 20 UNF. I'm using thread 3/4 - 16
