Can someone solve this.

Mansourxl
Mansourxl
12 Sep, 2024 10:17 AM

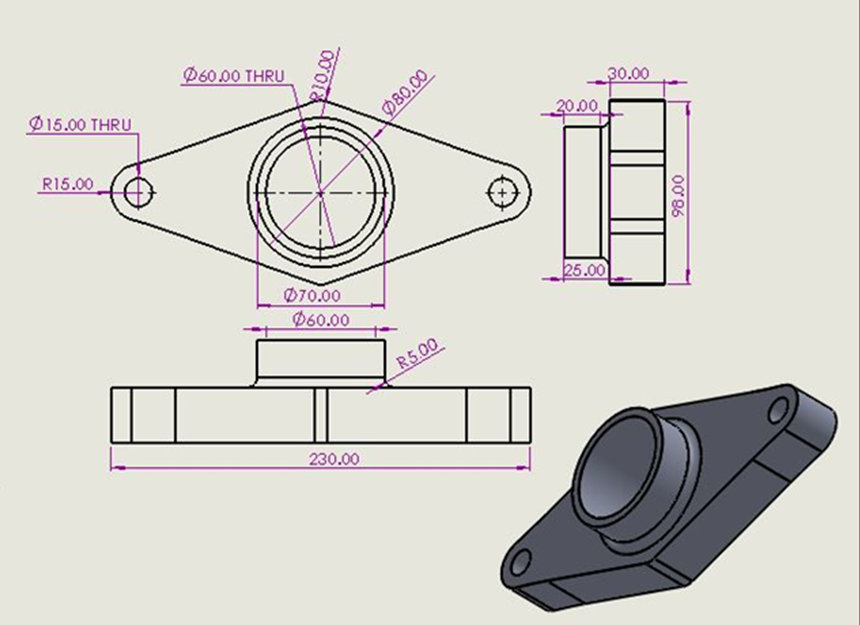

Drawing to solidworks

Screenshot 2024-09-12 140935.png Screenshot 2024-09-12 140935.png

1 Answer

Jack K
Jack K
Answered on 12 Sep, 2024 12:28 PM

This looks like a very simple part to model that most people can do after their first day of training. What problem are you having?

PS: The drawing is terribly dimensioned!
