Catia Explode-Update problem

jiwoo kim
jiwoo kim
23 May, 2020 06:35 PM

Catia updated it after the Explode, but it does not gather in its original shape.
The divided parts get together, but the product doesn't get together.

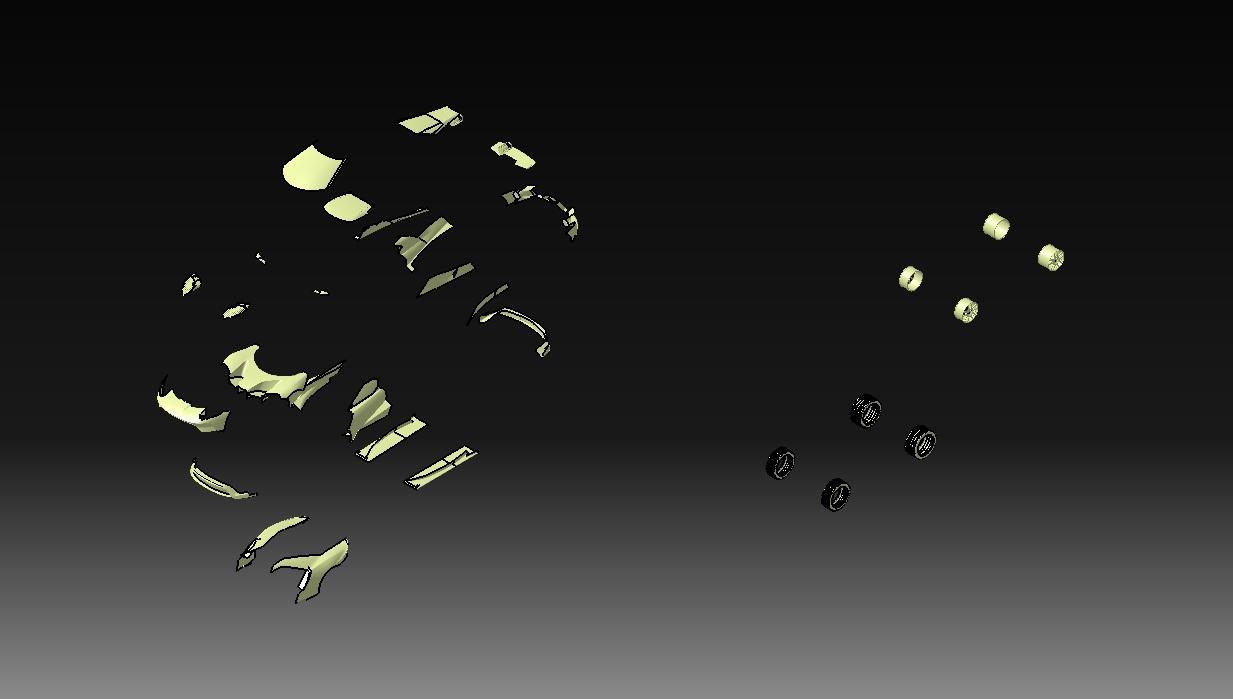

I attached picture
In this case, what should I do?

제목 없음.jpg 제목 없음.jpg

1 Answer

Jack K
Jack K
Answered on 25 May, 2020 02:26 AM

Check the assembly constraints
