Draw the front , Top and R.side view of the following object.

abdallah alshjrawi
abdallah alshjrawi
17 Dec, 2020 03:22 PM

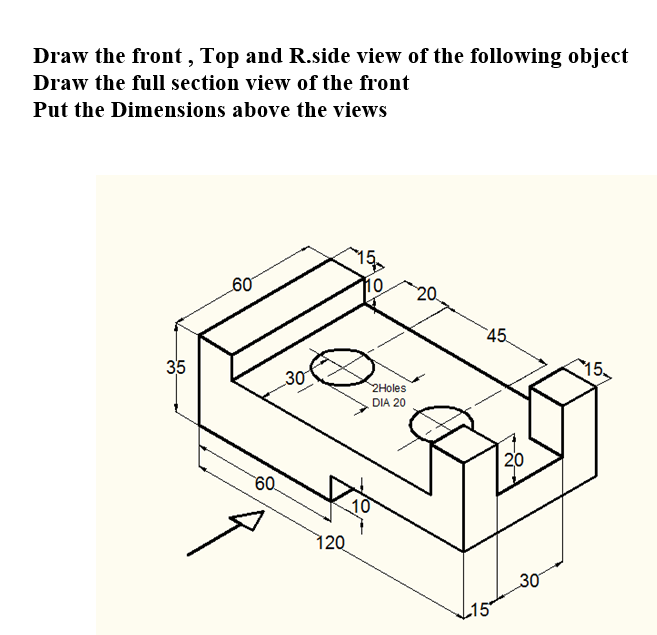

Draw the front , Top and R.side view of the following object
Draw the full section view of the front
Put the Dimensions above the views

Captsadsdadasure.PNG Captsadsdadasure.PNG

2 Answers

GAURAV SRINIVAS
GAURAV SRINIVAS
Answered on 18 Dec, 2020 10:16 AM

PFA the file

Part1.PDF
only aec
only aec
Answered on 18 Dec, 2020 05:16 AM

More than half work is done. Please dimension yourself.
Thankyou!

1 18-12-20.DXF
