Drawing Name
4 Answers
if you know how to edit pdf, this will help you change the name and also other option you like to edit so form my side use pdf editor to change what you want, hope so this answer help you

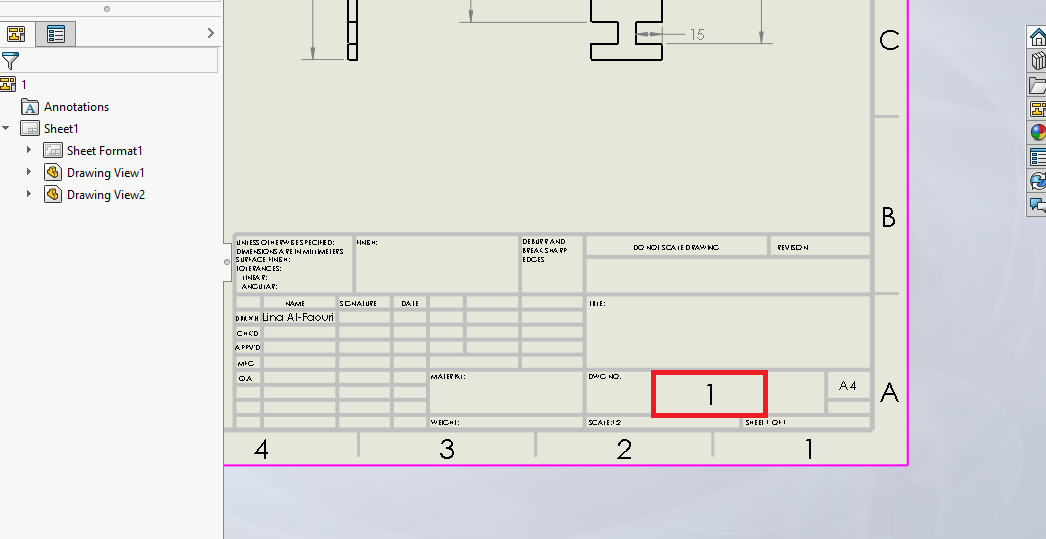

yes you can, there are a couple ways. The best way is to remake your standard part and drawing to include a property "Name" and "Drawing Number" associated to the model and then re-link the title block fields with the new properties. This will make it all meta data that can be handled and used in BOM's and exported to reports. IF you are looking for a quick and dirty way. You need to right click in empty space within the drawing. In the menu select "Edit Sheet Format". The model drawing should disappear and the title block lines will turn blue. You should then be able to delete out the "1" and type whatever you want in there. Or delete that text box all together, exit the "Sheet format" and add in a new text box in the same location that you can edit without need to go into editing the sheet format in the future.
If you want I can post a full Tutorial on designing a better and more useful title block with meta data.
just go down find sheet name and right click on sheet tab, choose option edit sheet format , now hover your mouse where you want to change the name, double click on it and change it. Done
Good Day,
Sorry. I am not good at this. It took me awhile to stumble through it. Here is a tutorial going through how my title block is set up. I don't know if it's 100% the "right way" to get it done, but I have used this at two companies and in my own work.
This seems like a lot of work, but if you have more then 3 people working in the same system, I think it's worth setting it up the right way.
