Exploded View of subassembly visible in main assembly.

Tom
Tom
26 Nov, 2016 02:59 PM

I have an assemly with an exploded view. This assembly i put in a larger assembly so that it becomes a subassembly. Possible to enable the exploded view of that subassembly in the larger assembly?

2 Answers

Roger Couture
Roger Couture
Answered on 27 Nov, 2016 02:19 PM

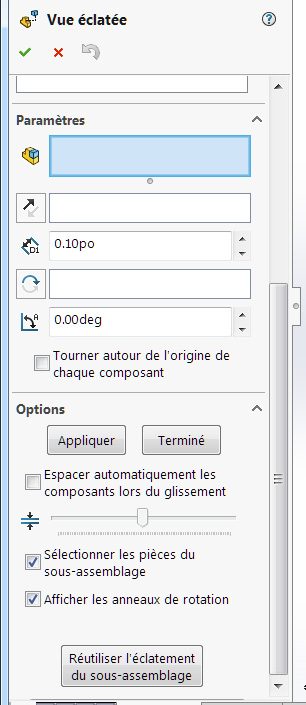

See "reusing the bursting of the subassembly" below in the Property manager "Exploded view"

éclaté.jpg éclaté.jpg
Tom
Tom
Answered on 26 Nov, 2016 03:08 PM

I should use the feature re-use exploded view- can't find that though.
But found another way, so no answer is needed really.
