How do I create a Pipe collarring, Inventor

Paw Bo Koch
Paw Bo Koch
4 Nov, 2016 02:59 PM

How do I create a Pipe collarring in Inventor?

I have currently. not seen any example of how this shaping of a pipe takes place.
Missing a practical guide to 3D CAD to solve the problem
There are plenty of clips showing the proceedings of the workshop

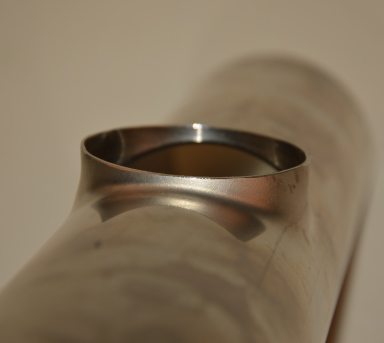

DSC01400_srcset-large.JPG DSC01400_srcset-large.JPG

3 Answers

Steendelaar
Steendelaar
Answered on 7 Nov, 2016 06:53 AM

You mean this?

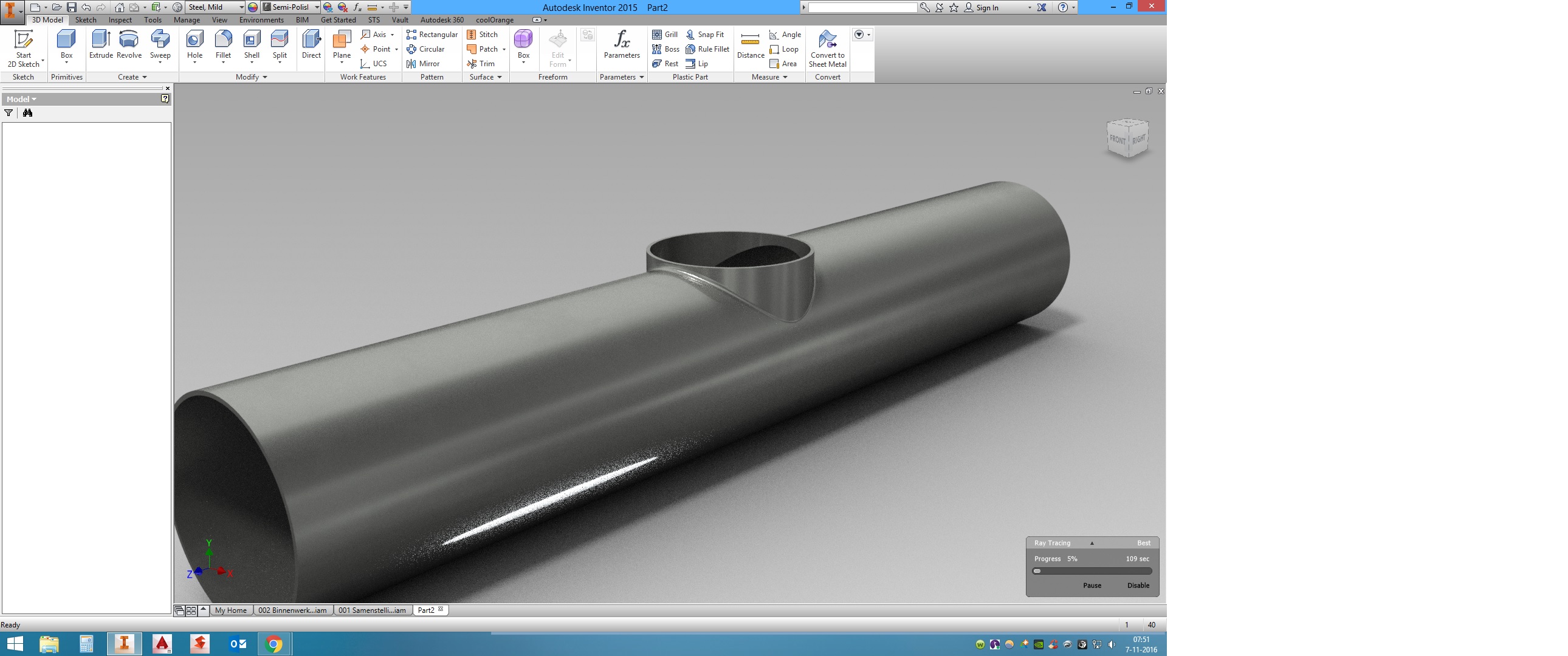

Afbeelding buis-kraag.jpg Afbeelding buis-kraag.jpg
Paw Bo Koch
Paw Bo Koch
Answered on 7 Nov, 2016 07:12 PM

Yes

Steendelaar
Steendelaar
Answered on 8 Nov, 2016 07:51 AM

I can send you the ipt. file, so you can see how i did it

Part2.ipt
