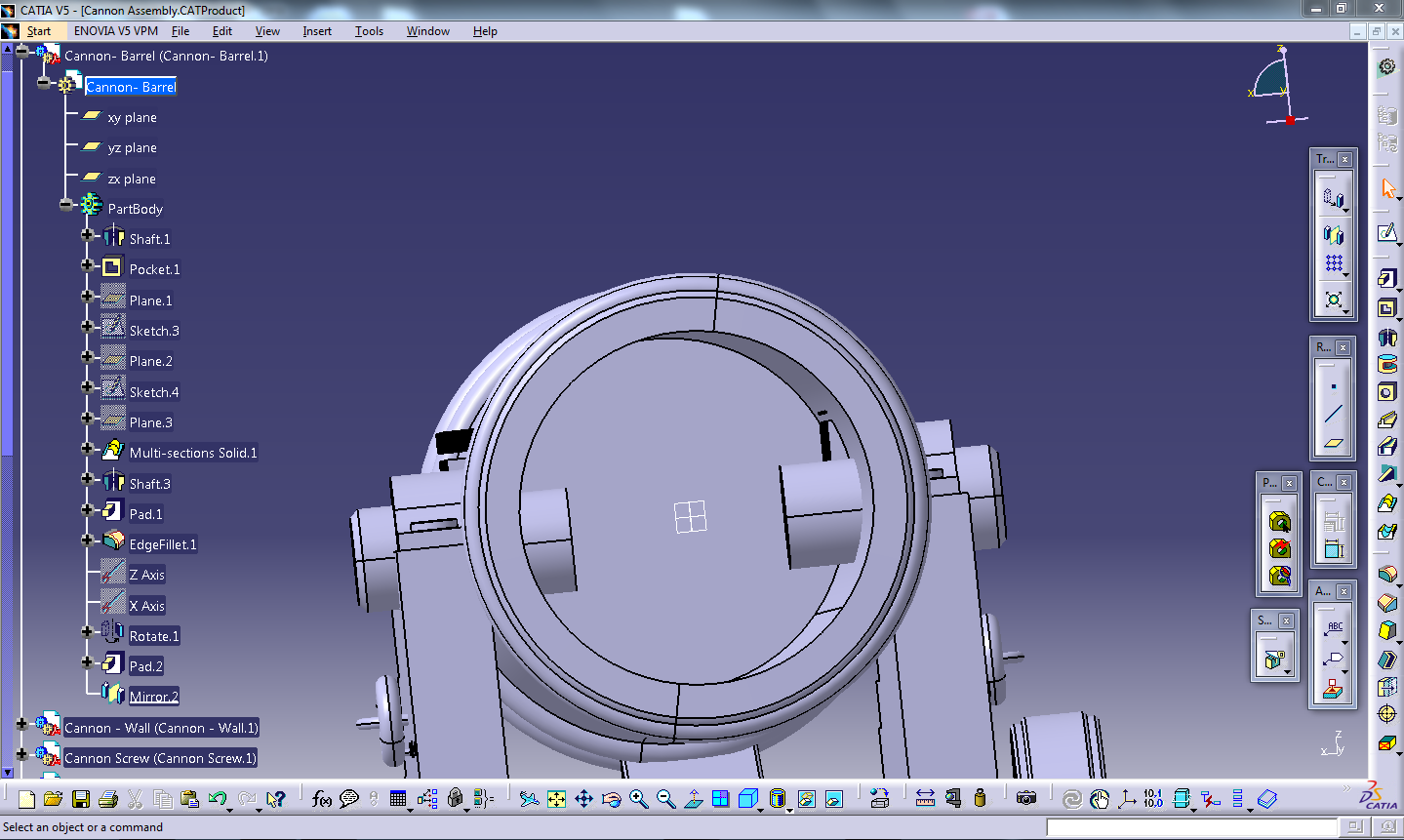

How do i trim 2 intersecting 3D objects in Catia V5 I have tried to pad the objects to up to next but apprently they dont work, I attached a photo for you to see

By shusuh ka on 31 Jul 21:37 4 answers 1358 views 5 comments

I am trying to trim 2 3D objects.

Added images

Square

4 answers

  • özgür kesebir
    özgür kesebir about 2 years ago

    Which area is trim area?

    Please show clear screen shot.

  • shusuh ka
    shusuh ka about 2 years ago

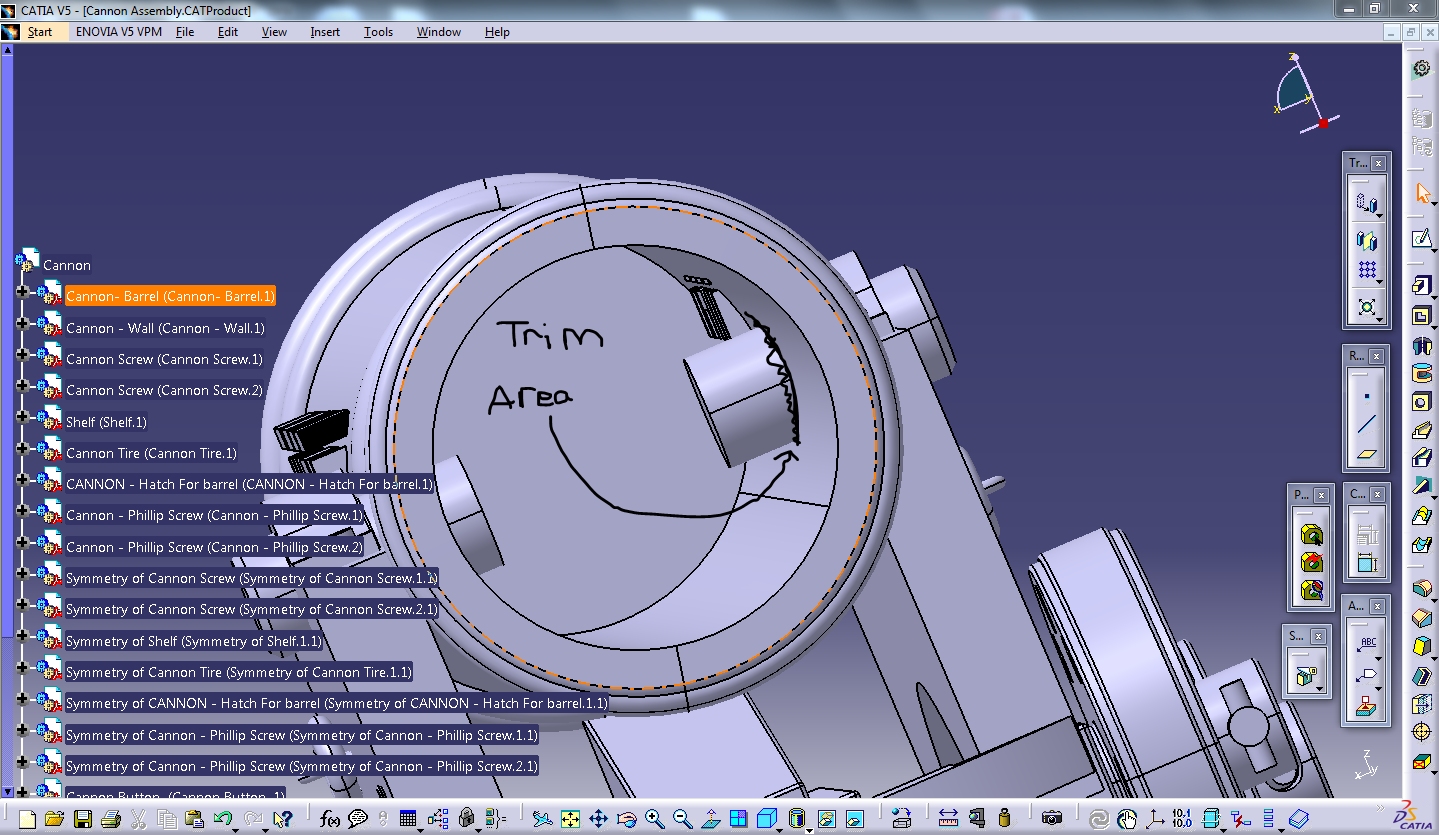

    The Trim area is shown in black

  • shusuh ka
    shusuh ka about 2 years ago

    It is not an "imagine & shape" I drew half of the part then did a revolve
