How to add callout to blueprint? solidworks.

How do I make the callout appear on the side view?

Answer

Comments 1

2 Answers

Insert - Annotations?
What sort of a callout?


Comments 1

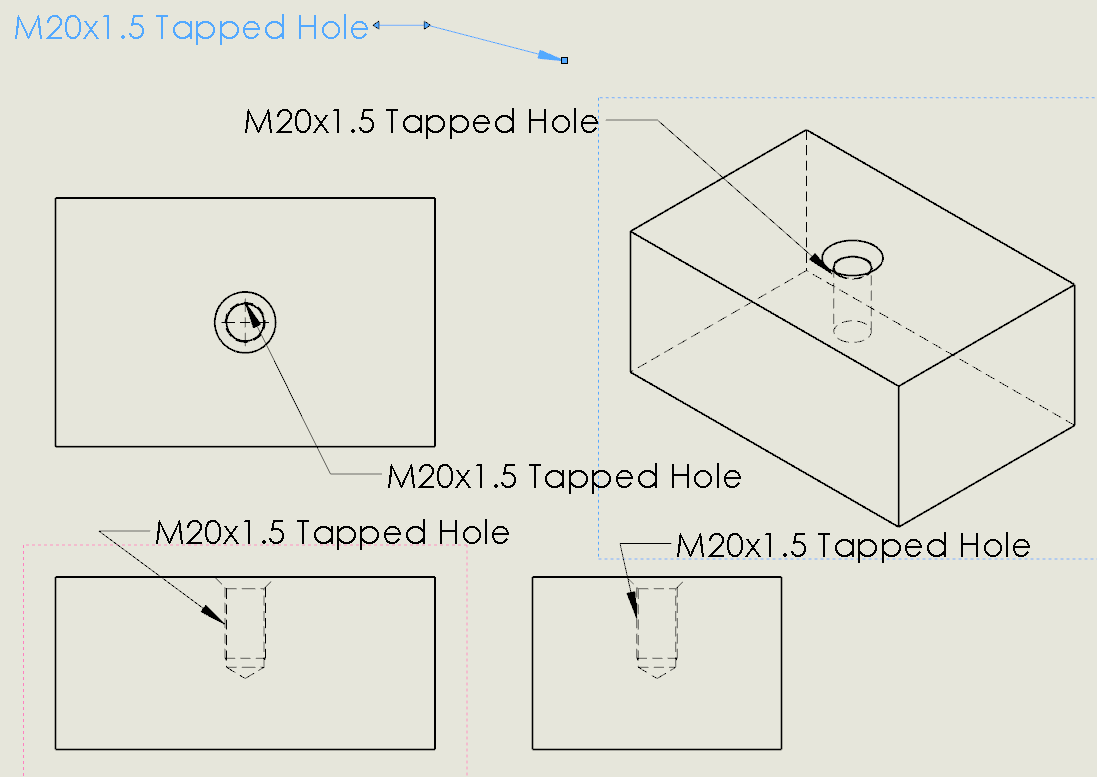

Callouts can be moved to different views by holding Shift, and left mouse click dragging the annotation to a new view.

Or you can copy callouts by using the Ctrl key instead of shift.
I think you could likely use Ctrl +C and Ctrl +V to copy/paste as well.

Once the annotation is moved or copied, you'll likely need to reattach it. Just drag the connector at the arrow tip to the hole feature.

I'm pretty sure that having a hole callout in a side view like that is non-standard. But, I guess you have a need for it.


Comments 0
