how to analysis a part in nx for cam operations

lovely manolian
lovely manolian
9 Feb, 2018 05:33 AM

how to analysis a part in nx for cam operations like. its minimun radius max. depth etc.

1 Answer

cmalco
cmalco
Answered on 9 Feb, 2018 04:47 PM

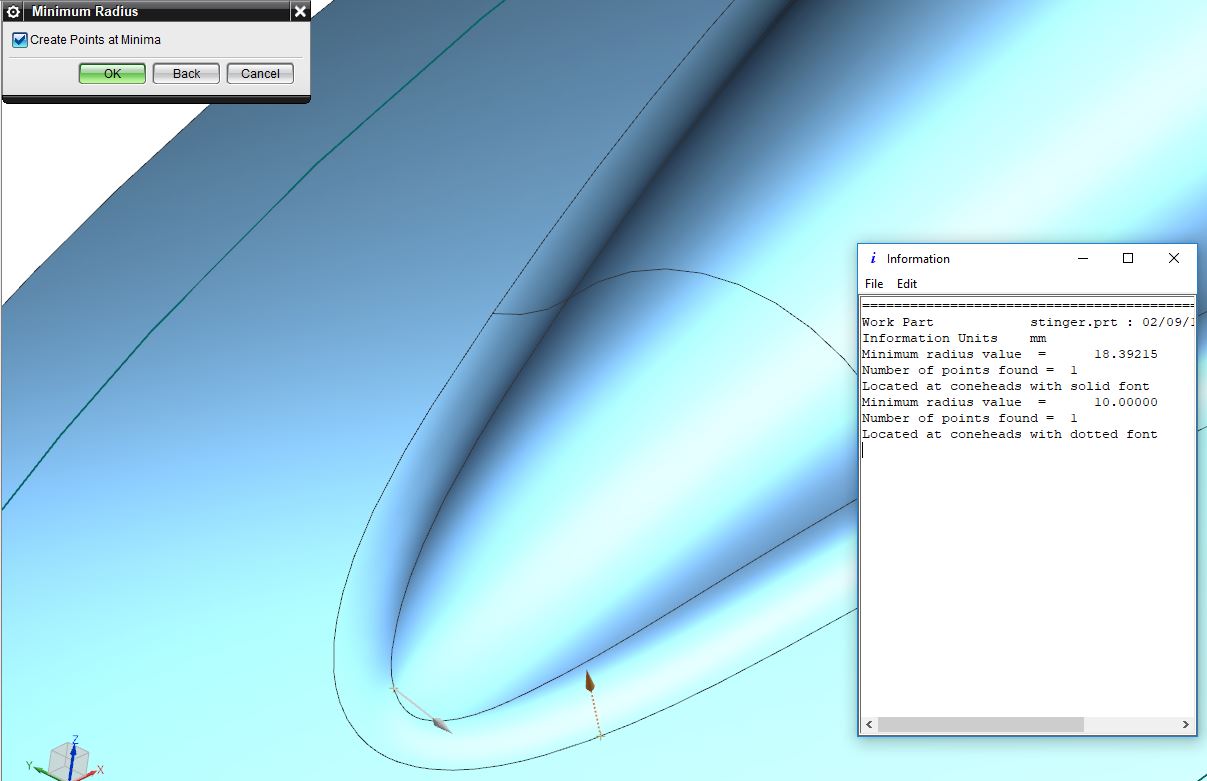

Analysis, Minimum Radius, select the face(s) to analyze

Most of your linear checks can be done with the 'Measure' tools

min radius.JPG min radius.JPG
