How to apply a point force in Solidworks SimulationExpress?

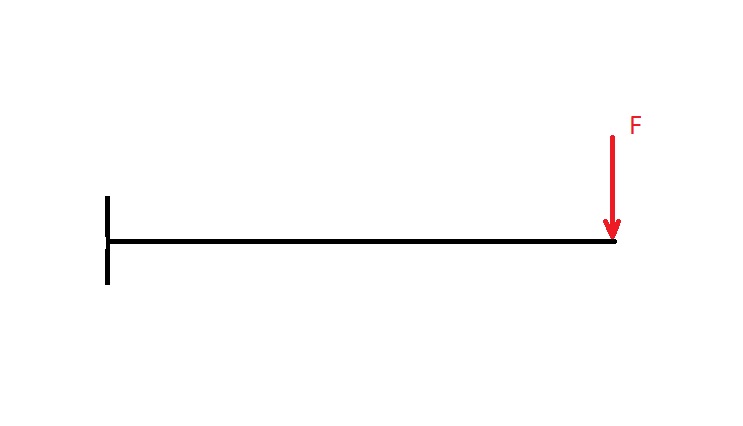

Let´s say for an example I have a 2m beam. I need to apply a force on 1 side but not to the whole lenght of the beam but just at the very top. How can I do that?

Answer

Comments 0

2 Answers

Use the "SPLIT LINE" command to create a small surface area where you want to apply the load. See pictures below.

Answered with a tutorial: https://grabcad.com/tutorials/how-to-apply-a-point-force-in-solidworks-simulationexpress
