How to create an arrow in the half view half section?

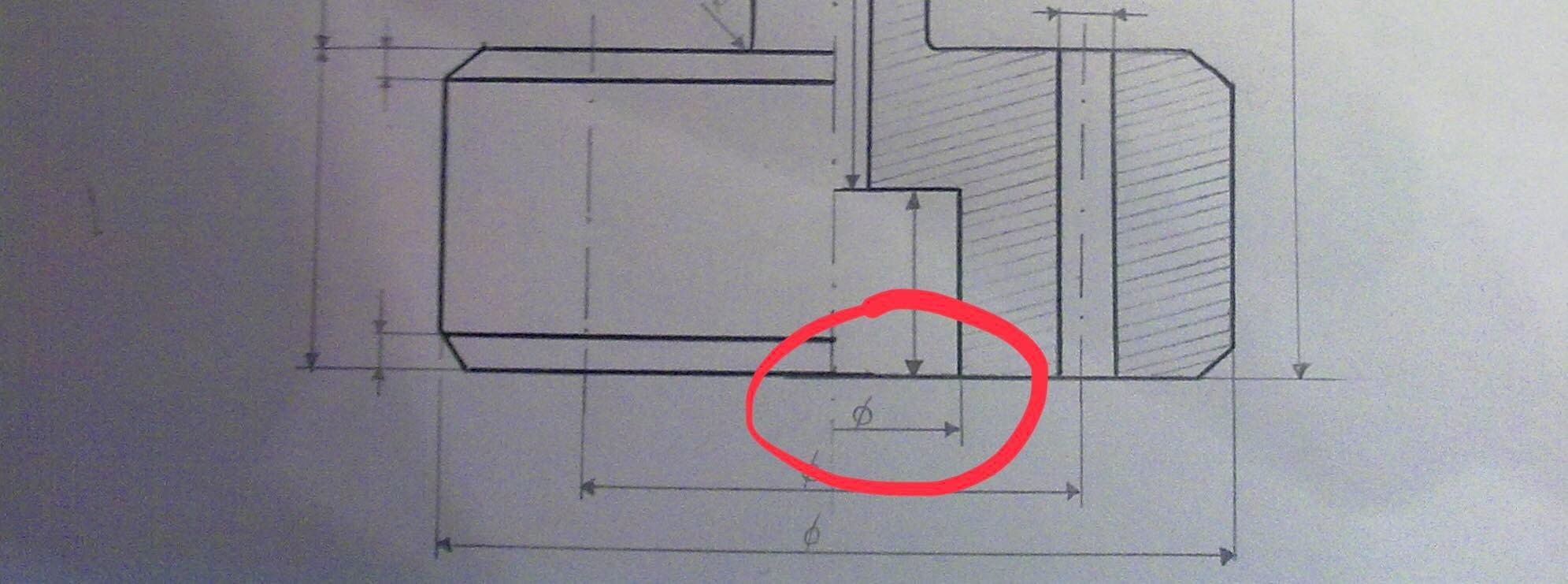

I am trying to add dimensions in my half view half section drafting model (NX11). I am trying to achieve something like shown in the photo.

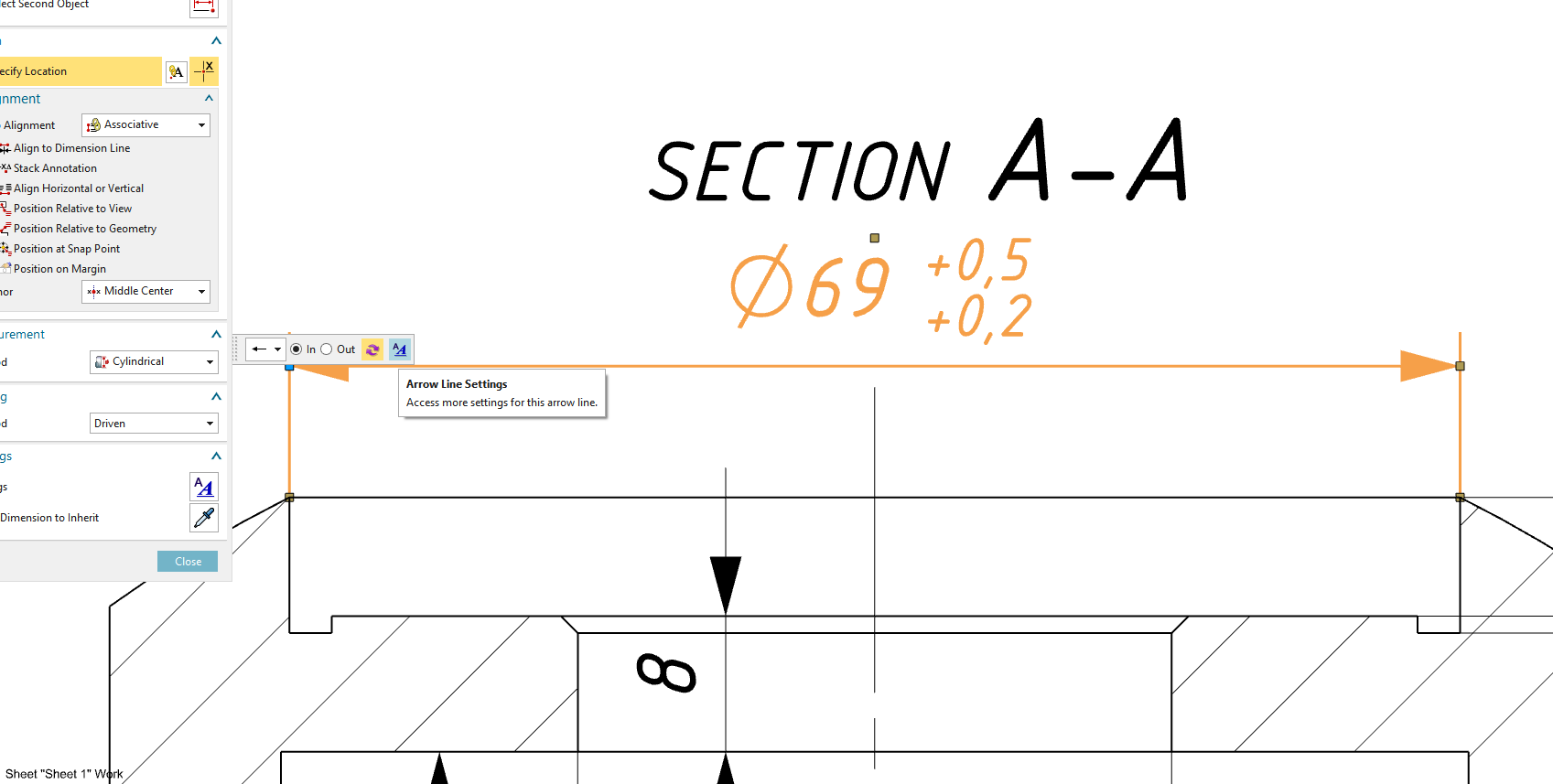

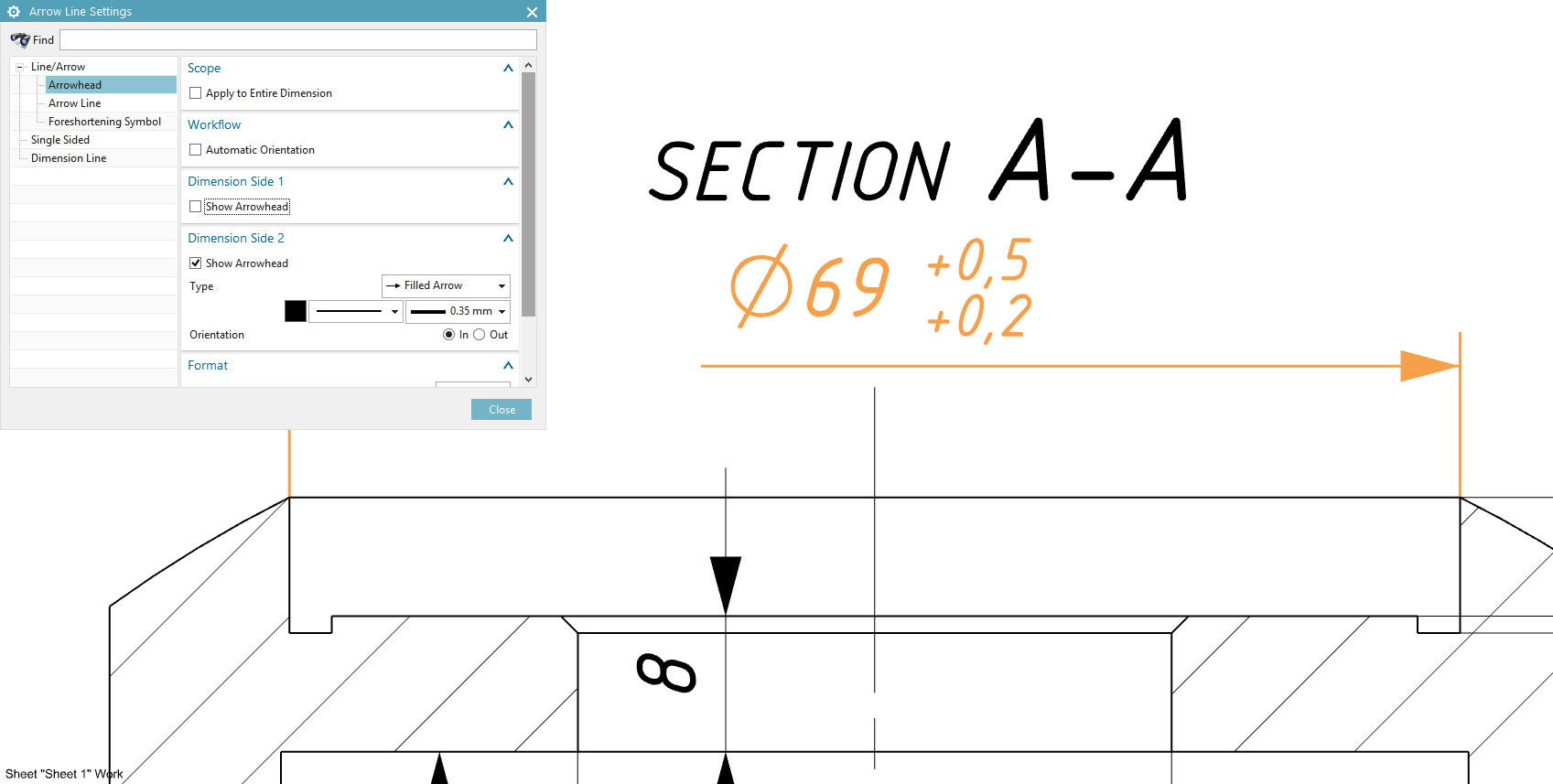

select your dimension, and select the Arrow Line Settings. In the dialog window uncheck the Apply Entire Dimension option, and uncheck the unneeded side of the dimension (1 or 2 depends on your drawing). See the pictures below, hope this helps!
