How to create cavity in solids with surface model in Solidworks

By BRENT MUSGROVE on 17 Jan 23:00 2 answers 2 comments

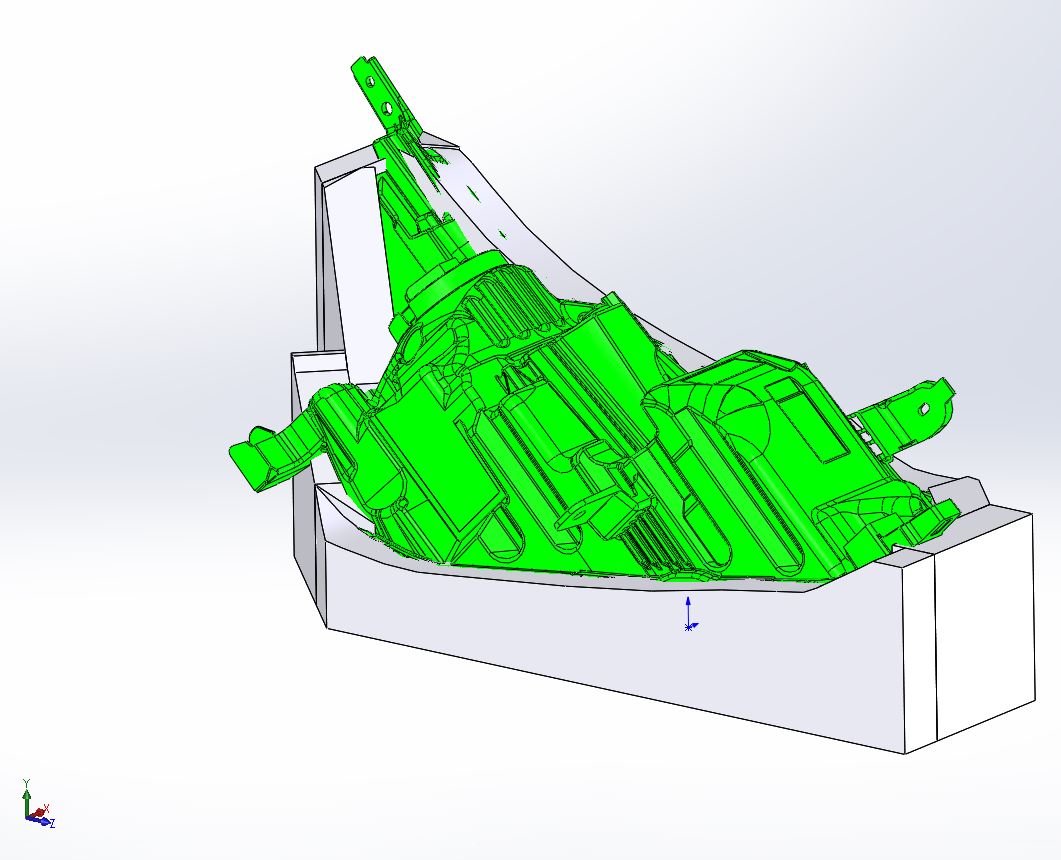

I need to create a cavity in the white solids blocks that captures the green surface model around the outer perimeter and supports the part in the Z direction. What is the simplest way to do this?

Attachments

12-0700222.SLDPRT, 39.2 MB
Download

2 answers

  • Brad Brown
    Brad Brown 10 months ago

    Hi Brent, Just want to check the Z direction. Looks more like it needs support in Y direction after I translate it. Can you confirm?

    Cant add file in comment

Add your answer to: "How to create cavity in solids with surface model in Solidworks"
