How to Create Explode Lines that Show the exit path of part in a exploded View in CATIA ?

By Amirhossein Hosseini on 07 Jul 13:11 2 answers 1 comment

in a exploded View that parts are exited From their places , How to Create explode Lines to Display the exit path of this parts?

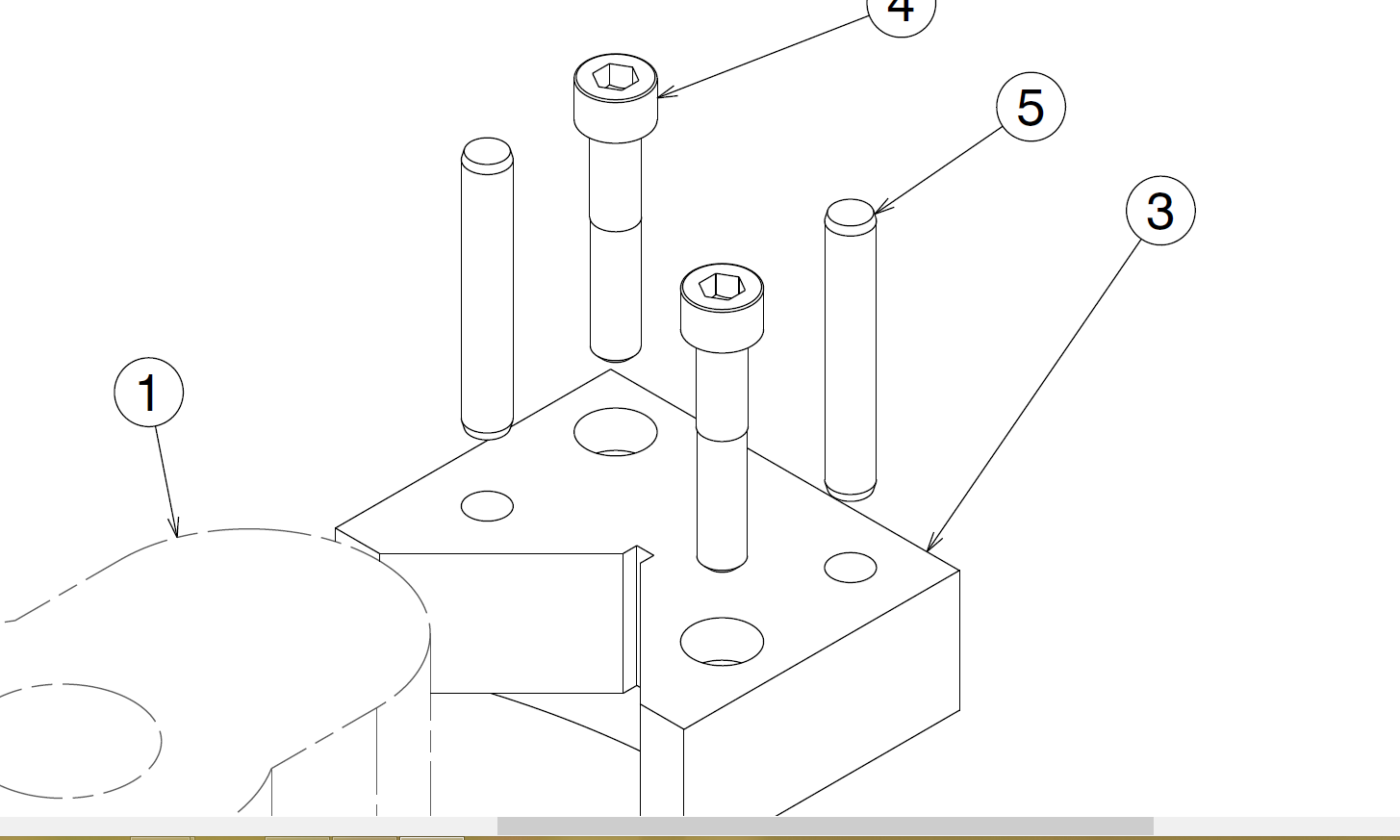

For Example in Attached Picture , I have Create 4 trace line that Show Exit Path of 4 Screws

This Option is very important for Disassembly Views. I not Found this Option in Catia Drafting.

Added images

Square

2 answers

  • Jack Knapp
    Jack Knapp 3 months ago

    There is no option for this in CATIA V5. You have to draw the lines yourself. (I someone has a solution to this, please share it)
