how to create the raster image and how to insert the raster image in nx8

By hummer vignesh on 19 Jul 12:55 5 answers 11256 views 2 comments

what is raster image & how to get raster image & how will import that in to nx8

5 answers

  • gcom
    gcom about 3 years ago

    how to insert the raster image in nx?

  • senthilprabakaran
    senthilprabakaran about 3 years ago

    Please refer the attached document, how to import raster images into UG NX 8.0.

    Attachments

    How to import Rastar Images into UG.pptx, 697 KB
    Download
  • Lakatos Petru
    Lakatos Petru almost 3 years ago

    I open every image with microsoft paint and then save it in .tiff format, ready to import,

  • Sajid N J
    Sajid N J over 2 years ago

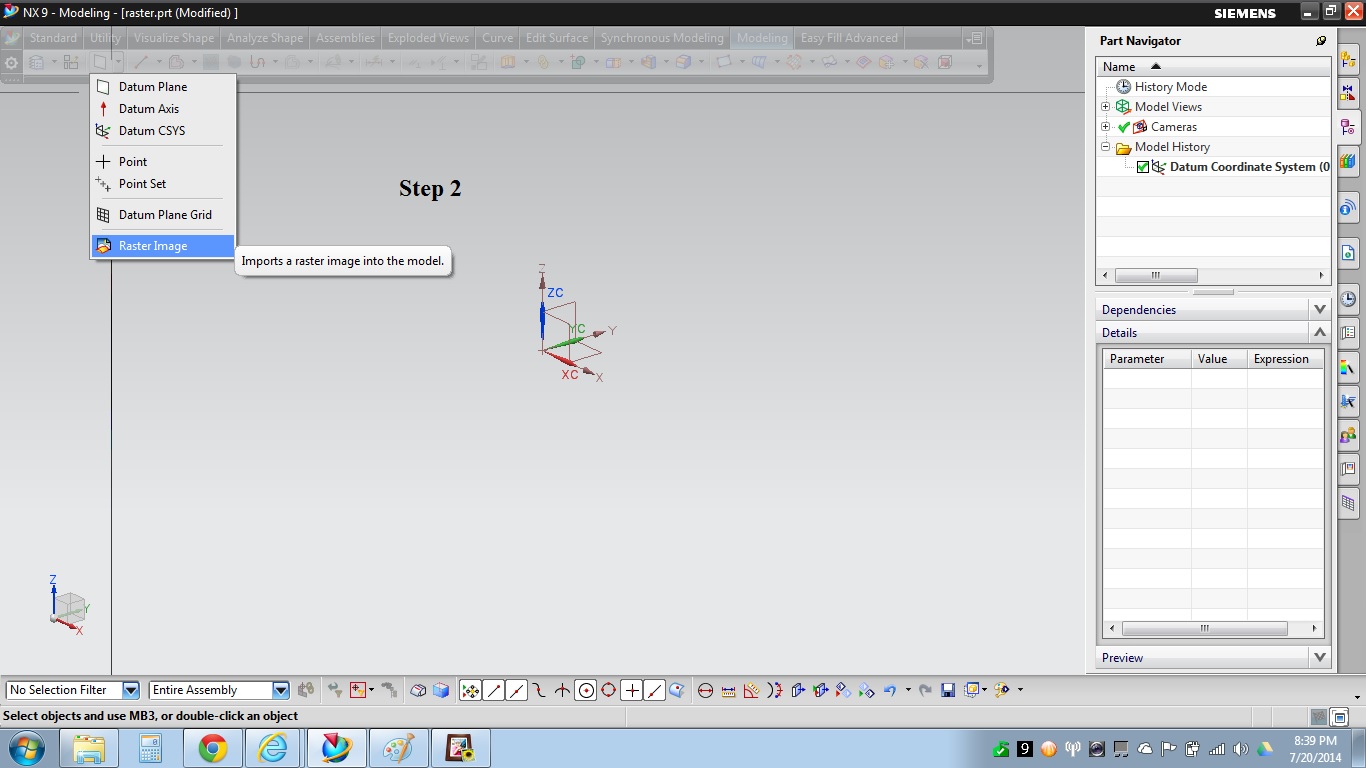

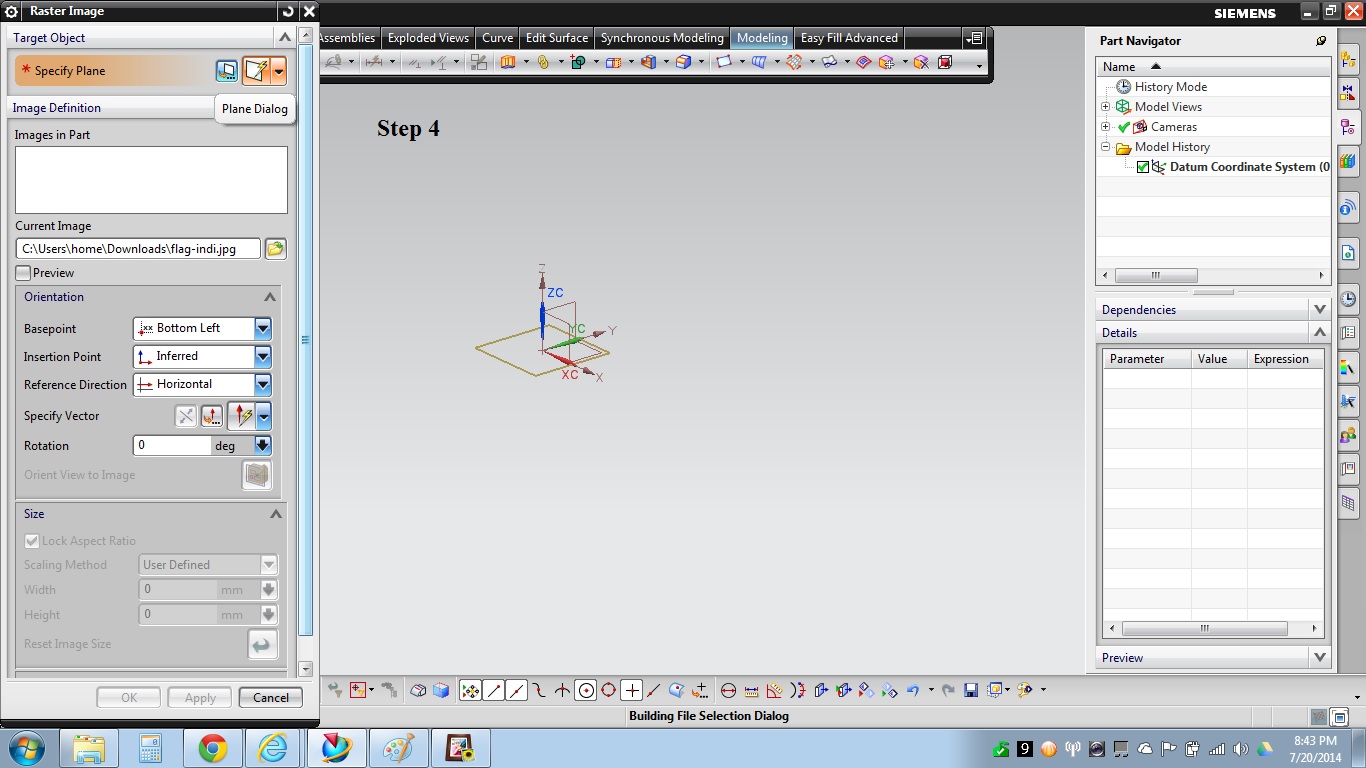

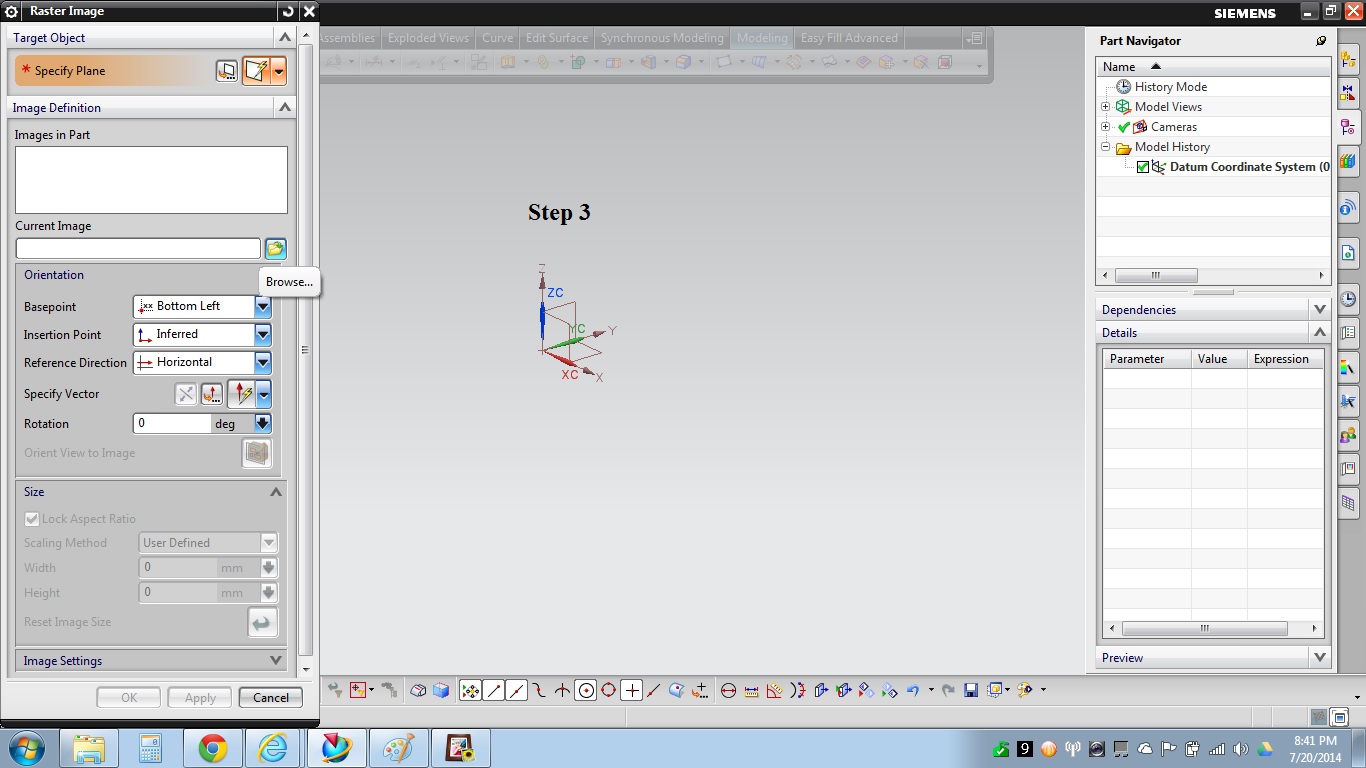

    menubar--> view--> visualization--> RASTER IMAGE

    1. The Image should be in TIFF format.

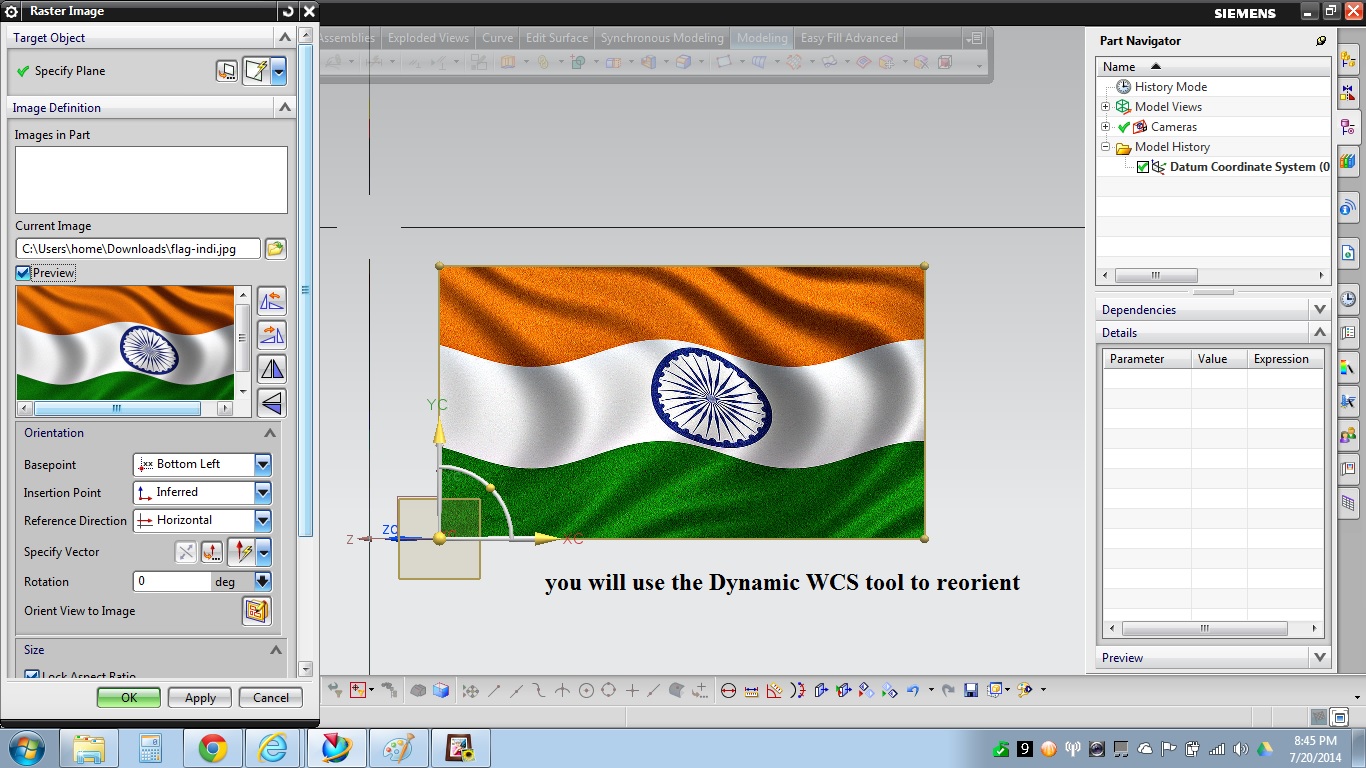

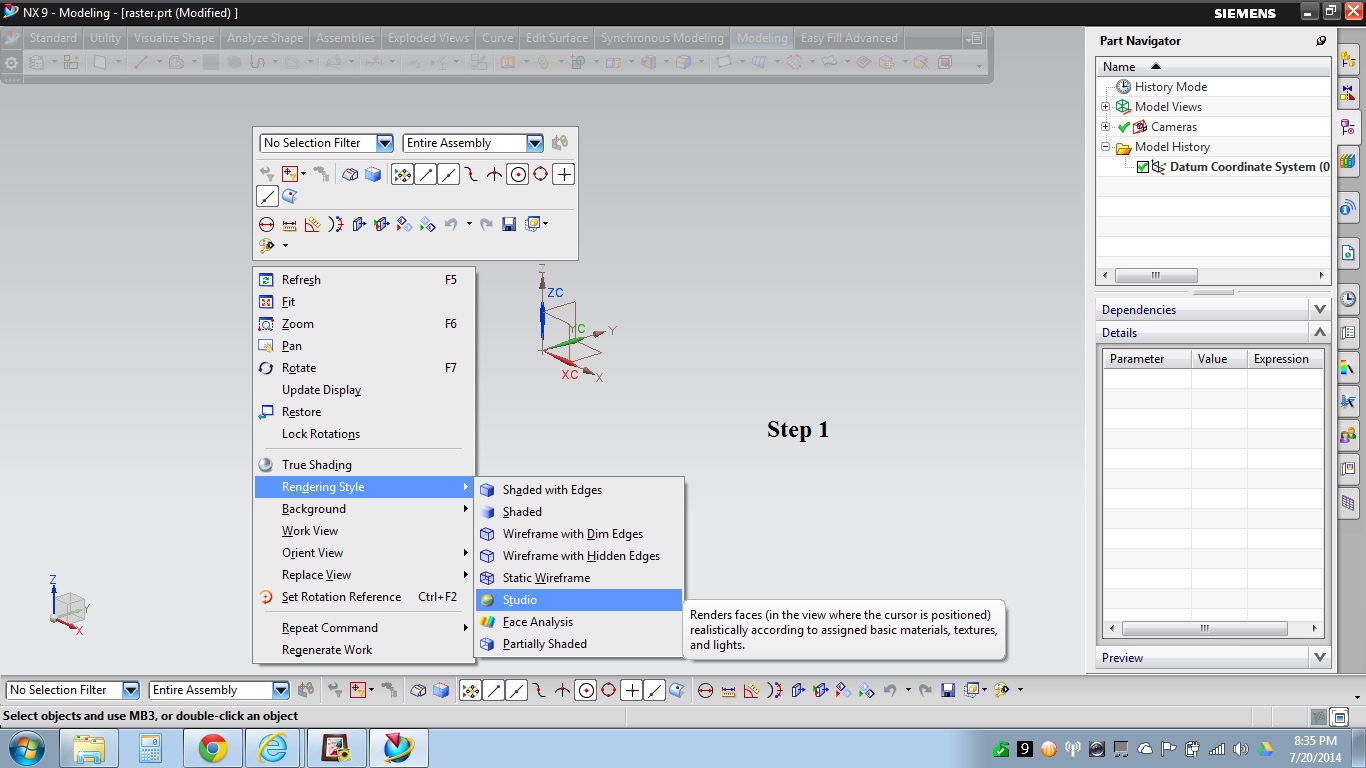

    2. Change rendering style to studio.

Add your answer to: "how to create the raster image and how to insert the raster image in nx8"
