How to design side profiles of given model using datum axis and planes?

By Ahmar Mansoor on 02 Jul 11:02 2 answers 1 comment

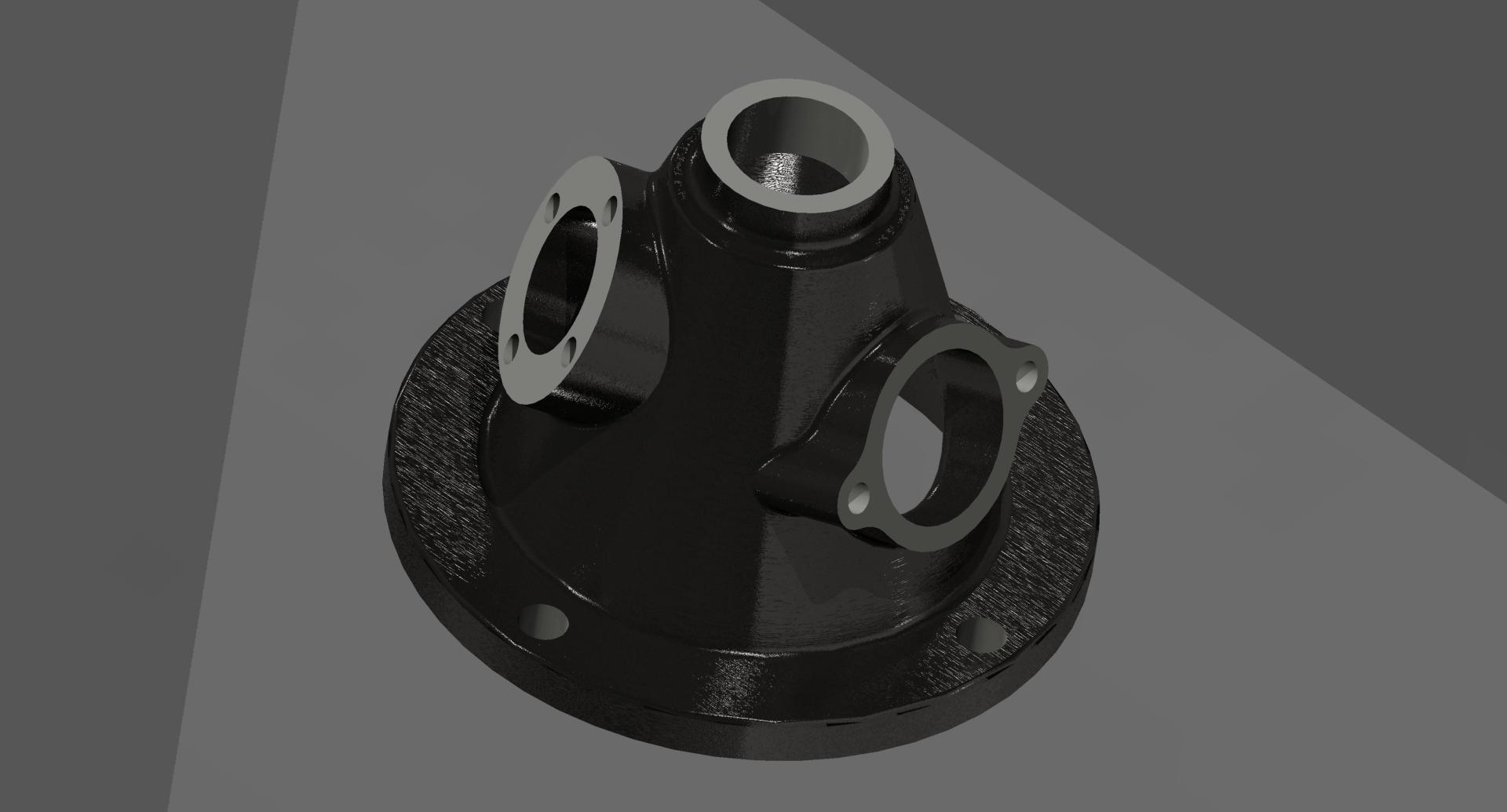

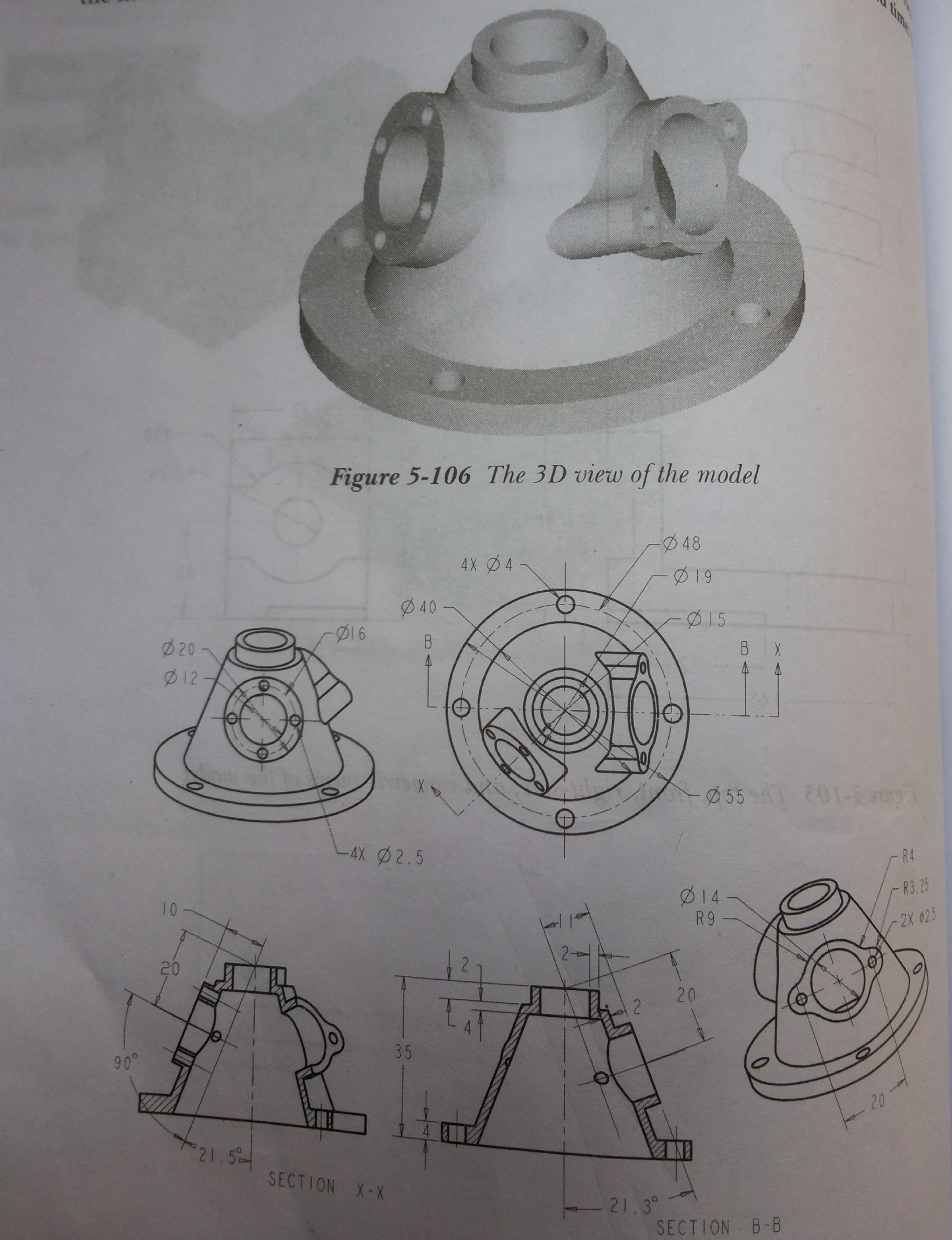

I am giving you the picture of model. Everything is easy. But i am not able to design the features on side. I dont know how to take a plane for that using axis. Please help me.

Added images

Square

Attachments

wwwwwwww.prt.1, 246 KB
Download

2 answers

  • LGVF -USA
    LGVF -USA 4 months ago

    Hi. See the attachment. I used Creo2.0.
    Enjoy!

    Attachments

    casting_resolved.prt.2, 1.05 MB
    Download

Add your answer to: "How to design side profiles of given model using datum axis and planes?"
