HOW TO DESIGN THIS FORM?

By Bertrand Fougerat on 04 Feb 08:30 3 answers 0 comments

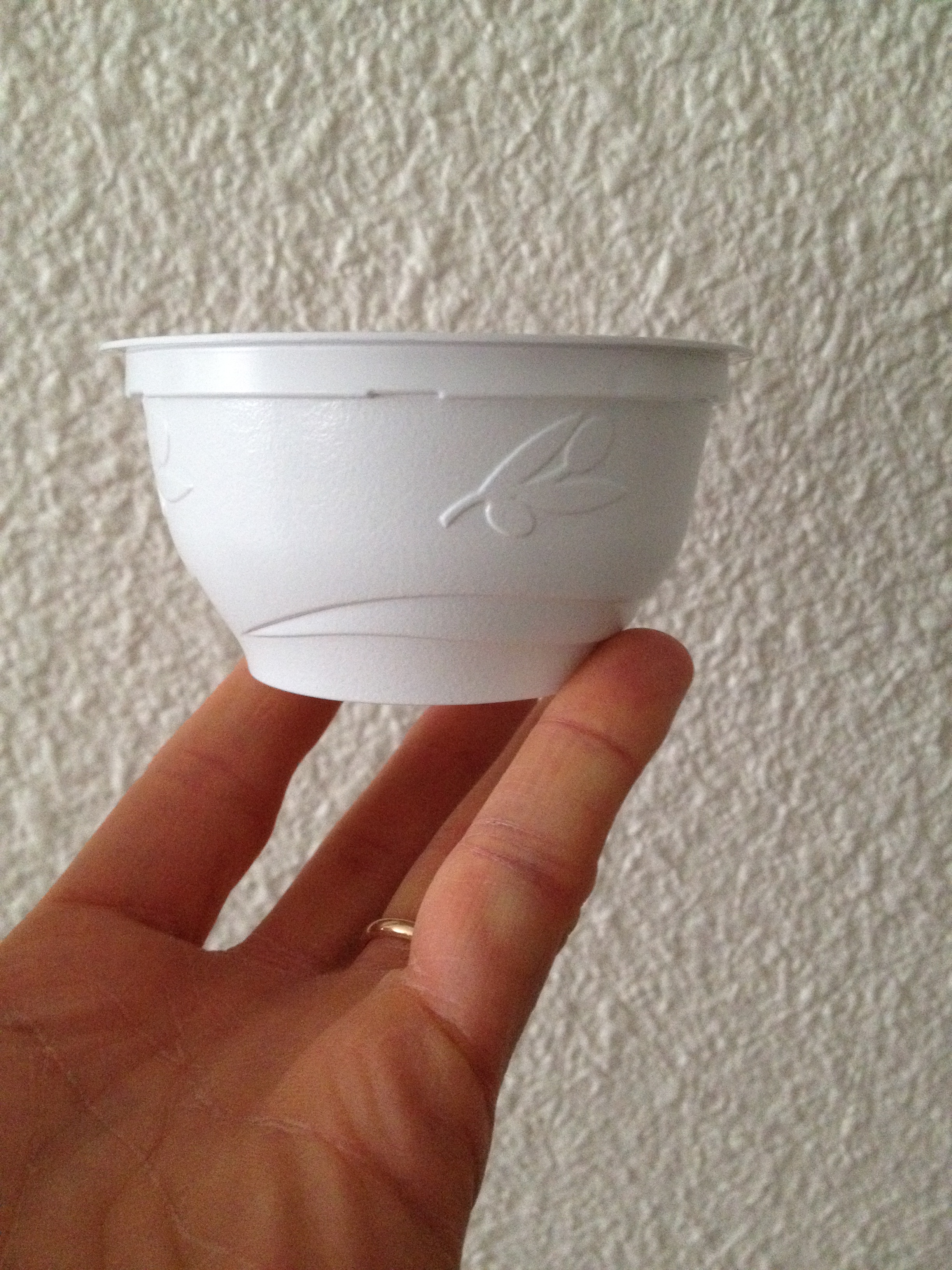

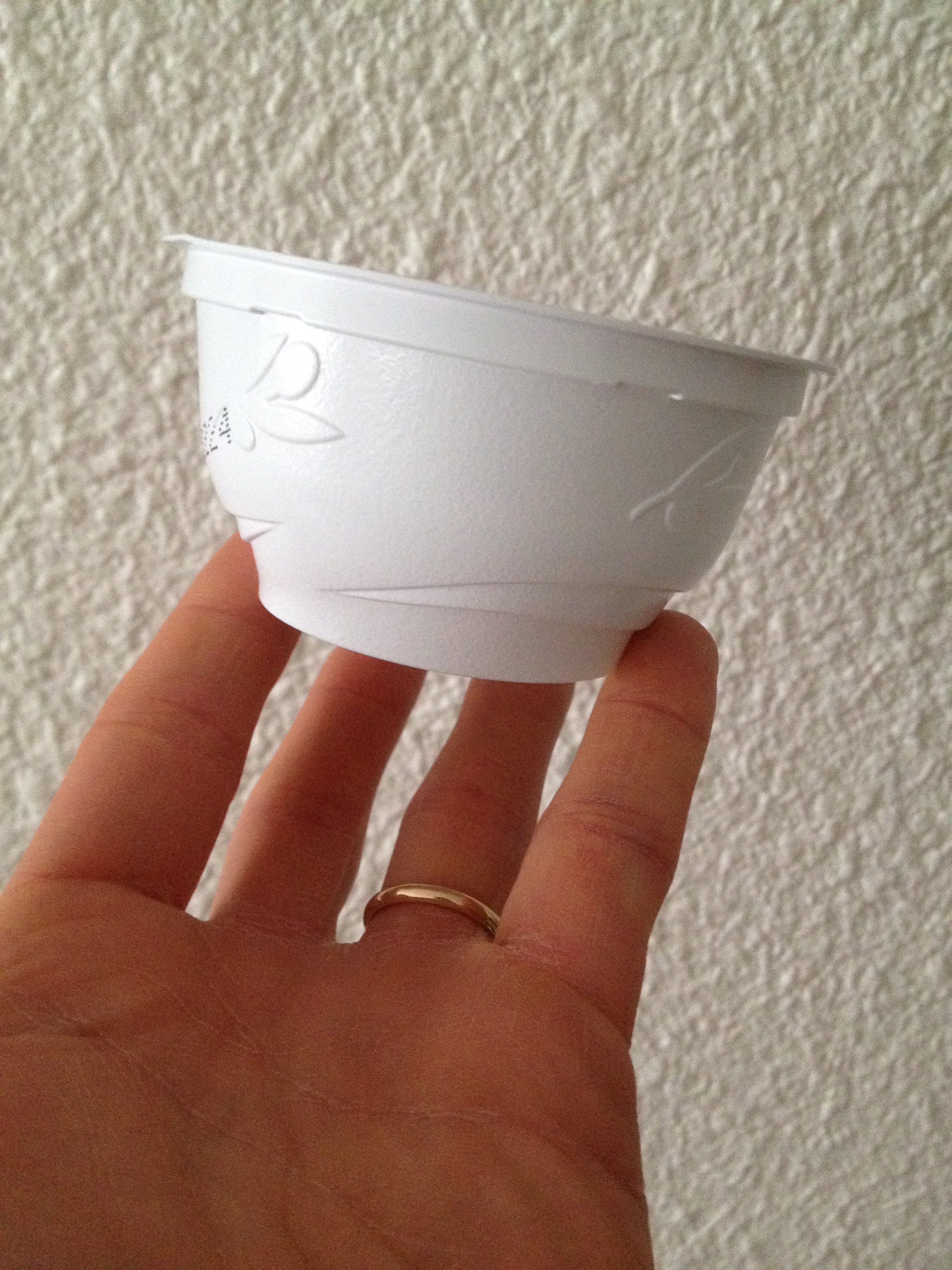

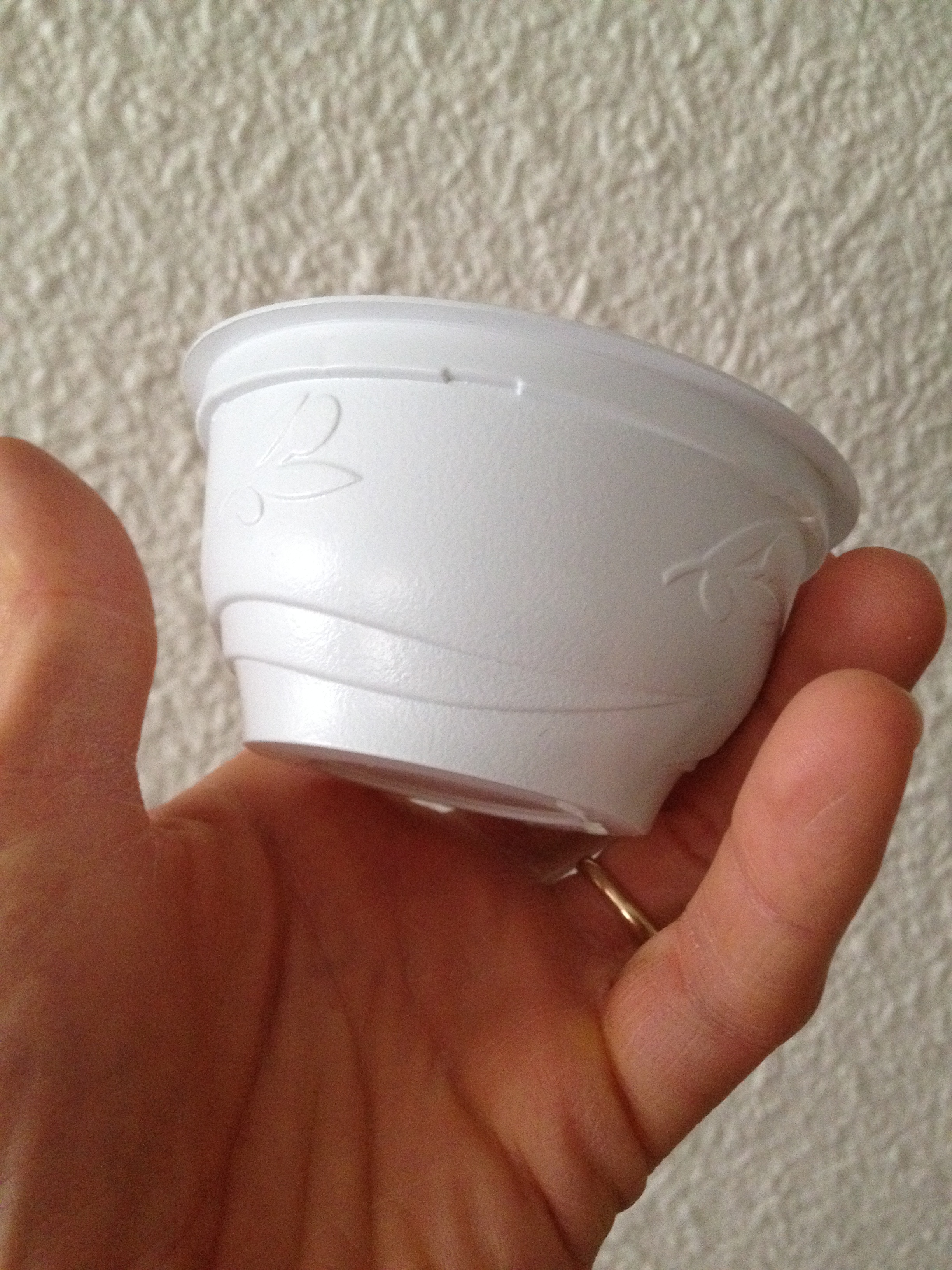

I have to design this bowl with solidworks, but I really dont know how to do the little wave on the side.How to do it? (i'm using SW 2007)
Thanks for your help!

Added images

Square Square Square

3 answers

  • john fall
    john fall over 3 years ago

    Draw a sketch on the center plane of the image, then extrude sketch using offset from surface and select the outer surface, set the distance you require the image to protude. If you modeled the cup using revolve you will have to do a revolve cut to clear the inside of the cup afterwards or create the cup with a solid center to start with then revolve cut the inside afterwards.

  • Bertrand Fougerat
    Bertrand Fougerat over 3 years ago

    Dear John,
    First of all, i wanna thank you for your answer!
    It works!!!! I dont understand why i couldn't figure it out ,maybe because I'm french...
    THANKS!!!!

  • Bertrand Fougerat
    Bertrand Fougerat over 3 years ago

    The only solution who works in SW2007:

    john fall says:

    Draw a sketch on the center plane of the image, then extrude sketch using offset from surface and select the outer surface, set the distance you require the image to protude. If you modeled the cup using revolve you will have to do a revolve cut to clear the inside of the cup afterwards or create the cup with a solid center to start with then revolve cut the inside afterwards.
    Thanks to both of you, really.
