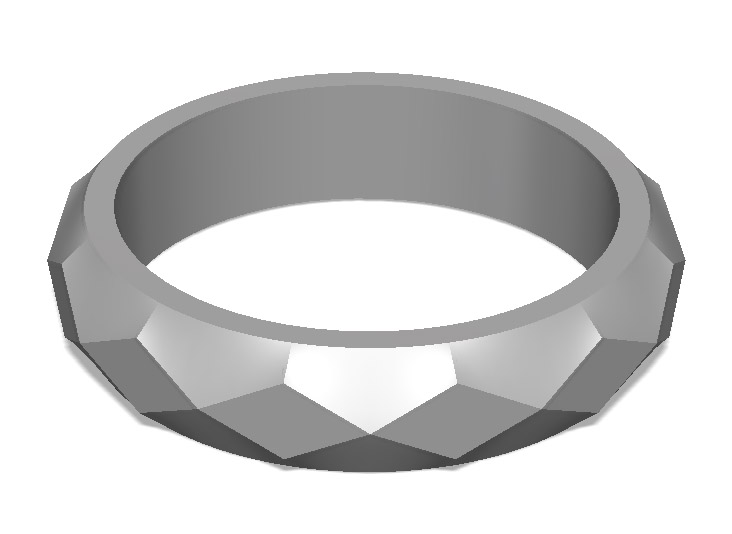

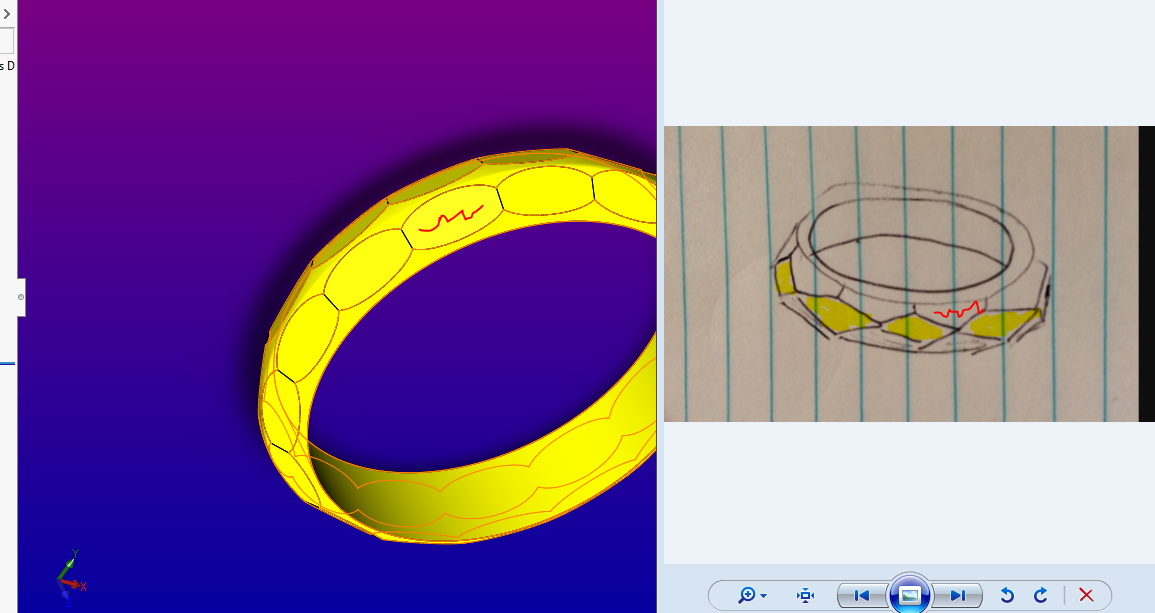

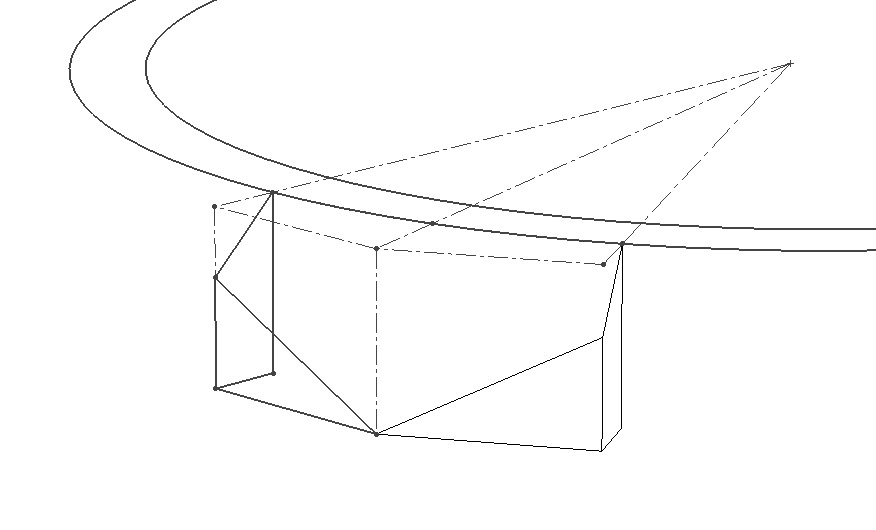

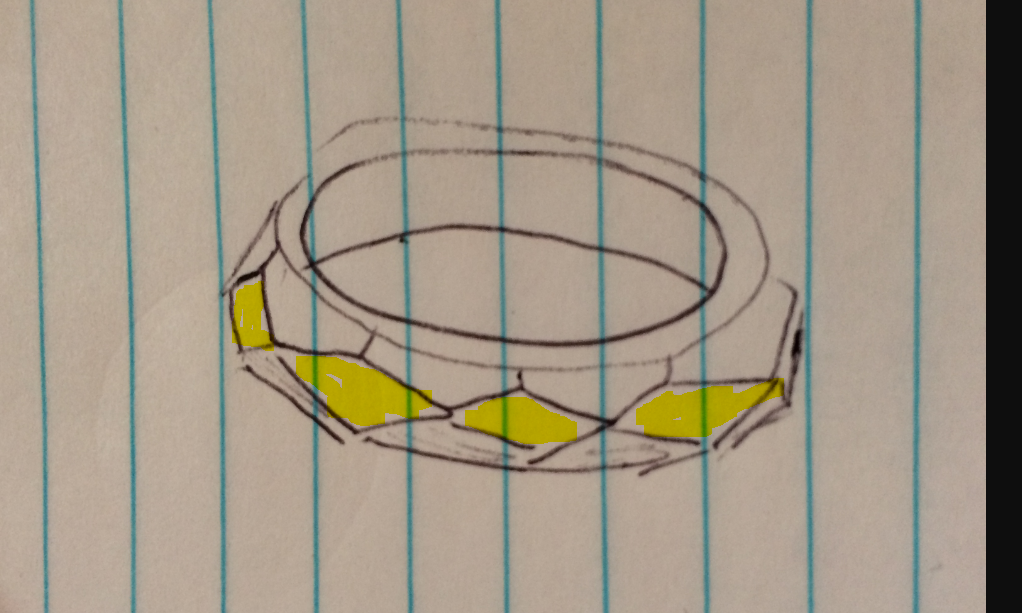

How to do this feature in solidworks steilos 8 Apr, 2017 12:44 AM hello please help me to make this ring below how to make this feature via solidworks fot.PNG moddd.PNG 5 Answer Stephen Nyberg Answered on 11 Apr, 2017 08:24 PM Here is one that look similar to your hand sketch. I used surfaces to match your sketch and also patterned it around. 2017-04-11 15_22_46-SOLIDWORKS Professional 2017 x64 Edition - Ring.SLDPRT.png Ring.IGS Ring.STEP Ring.x_t Ring.SLDPRT Richard Barber Answered on 10 Apr, 2017 07:43 AM I slice the curved edge from the right plane, mirror and pattern, then slice the outside round edge from the front plane, and pattern. ringB.SLDPRT Stephen Nyberg Answered on 21 Apr, 2017 04:36 PM Here is the 16 vs 10 version you asked about. I forgot you don't have SW2017 Ring.STEP Ring.IGS Ring.x_t Ring.SLDPRT Roger Couture Answered on 16 Apr, 2017 06:31 PM simplify your geometry and probably you will see how you want to do it anneau 2.jpg anneau.jpg steilos Answered on 11 Apr, 2017 08:41 AM see the difference between what im asking for and Richard ring fot.PNG
