How to make a frame with connectors?

By Radosław Biesek on 02 Aug 20:54 2 answers 119 views 0 comments

Hallo.
There are many materials on the internet for creating welded frames. I would like to ask about tutorials for creating a frame consisting of profiles and connectors, for example used in the air handling units.
I prefer Inventor or SolidWorks.
Best regards

2 answers

  • FredSWUG
    FredSWUG about 2 months ago

    If you have SolidWorks, it has a built in tutorial on weldments. I have not made a weldment in years, but the tutorial got me started when I did have a bunch of weldments to make years ago.

    These are the types of racks I later converted to weldments. Initially I had made them as assemblies, "Weldments" simply did not exist in the software when the frames were originally created.
    Genetic Research Rack

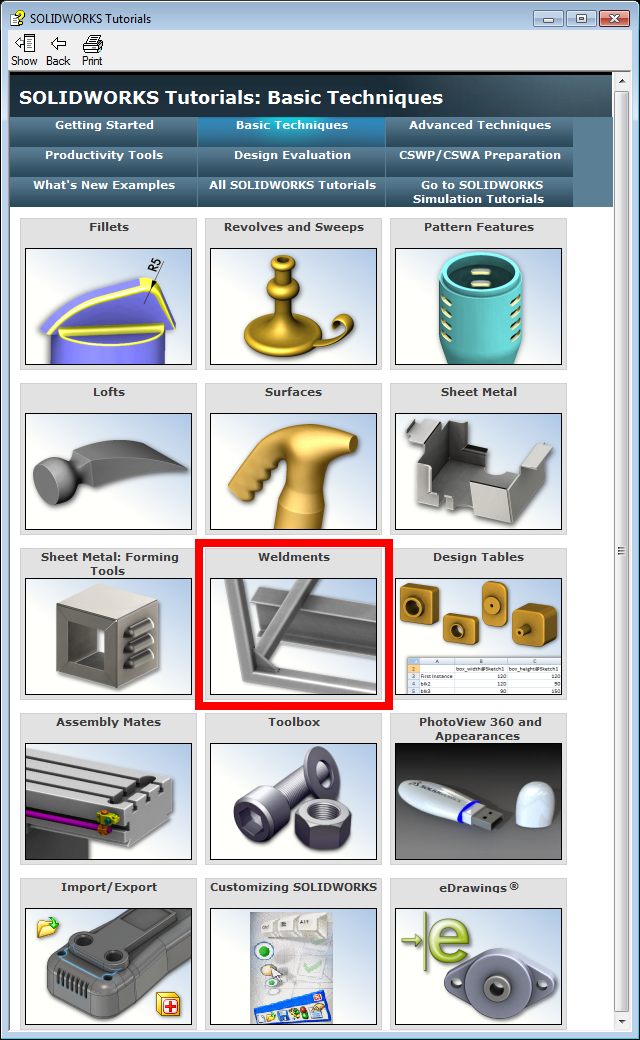

    This photo shows where to find the tutorial:

  • Jonathan DeRoner
    Jonathan DeRoner about 2 months ago

    This is just a short video of one, but if you follow it, you'll get the basic ideas on how to make them.

    https://www.youtube.com/watch?v=Q4TmGLccNew

    I suggest that if you are using a lot of content center type parts like steel tubing that you save them as ipt files so you can make appropriate cuts before assembling them. Good luck!
