how to model a variable nozzle of a jet engine..?

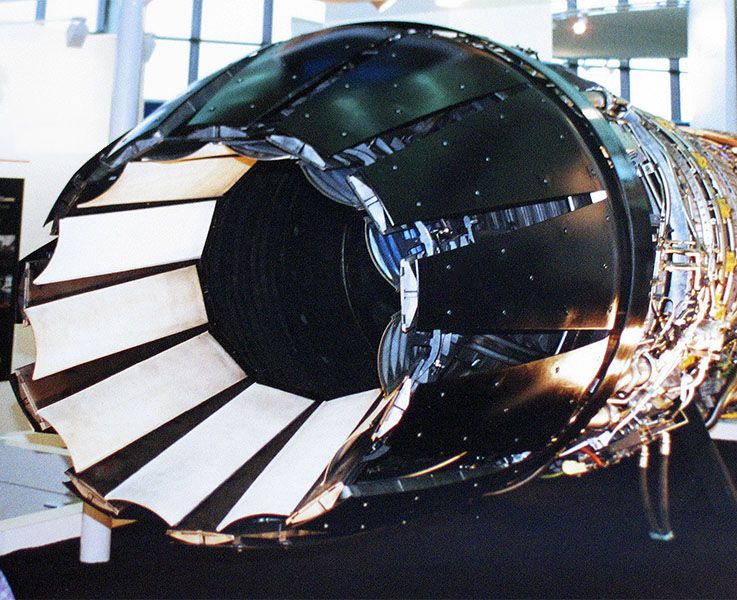

iris nozzle is the preferred design even though other designs will be also helpful..and i have a catia v5 r20 ...i upload an image from google to just make my question clear.

Answer

Comments 0

1 Answer

ur image is quite similar to the engine for tejas,
do u want simulation in your model or it should be a fixed cad model


Comments 1
