How to model coil with bent axis in Inventor?

neznajut
neznajut
25 Dec, 2012 08:27 PM

A similar problem as in http://grabcad.com/questions/how-to-model-gooseneck-in-inventor.

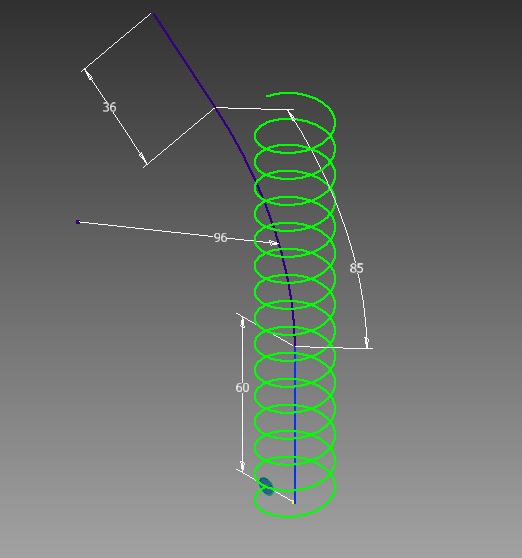

There is bent axis, and I have to make coil around it.

Or how to make something like this Toroidal coil or Continuous Spiral Spring on Circular Path?

Thank you

Untitled.jpg Untitled.jpg

4 Answers

Ioannis Skarlatakis
Ioannis Skarlatakis
Answered on 26 Dec, 2012 12:58 AM

http://www.youtube.com/watch?v=uthjizAUftY
http://www.youtube.com/watch?v=Zojv12GyFRE

Check the links above the rest is just matter of time
Unfortunately Inventor is not that powerful as solidworks in this

neznajut
neznajut
Answered on 27 Dec, 2012 12:56 PM

Bent it along (to make toroidal coil) whole coil was bad idea.

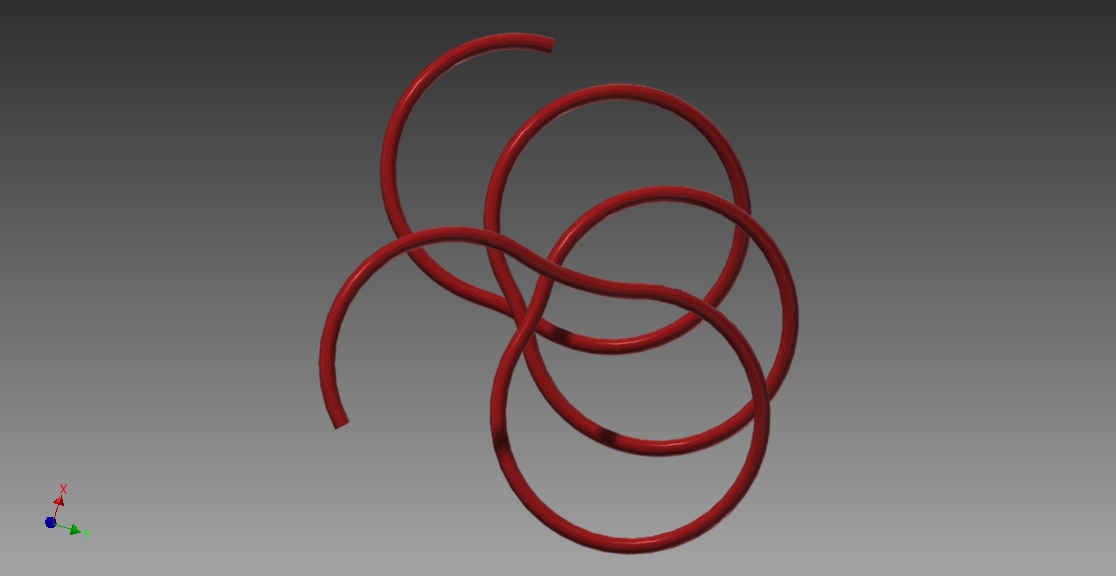

Součást1.jpg Součást1.jpg
Ioannis Skarlatakis
Ioannis Skarlatakis
Answered on 27 Dec, 2012 09:55 PM

This is my approach
Toroidal Coil

Toroidal_coil.bmp Toroidal_coil_2.bmp
thinkin3D
thinkin3D
Answered on 24 Jul, 2013 05:10 AM

toroidal coil - parameter driven
