How to model drawing (forming) segment from the part in Solidworks

By Aleksandar on 12 Feb 07:34 2 answers 475 views 3 comments

Dears,

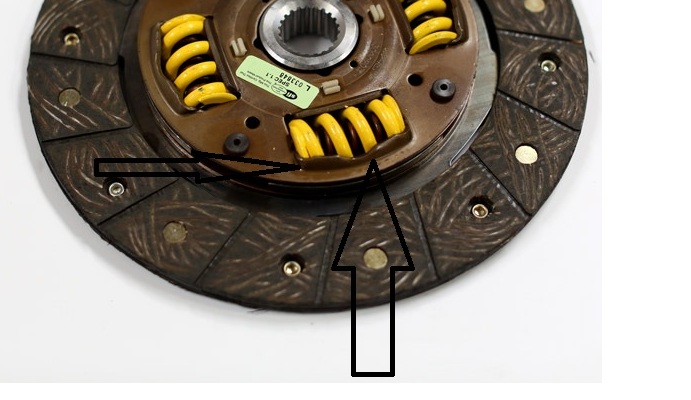

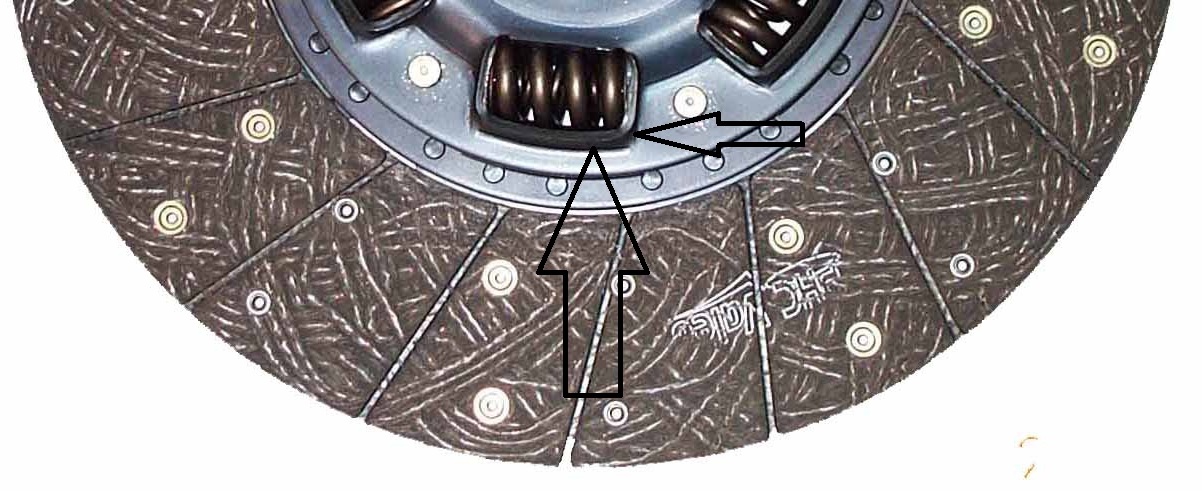

Are anybody can help me with proper designing of pointed segments from the photo in attachment for later nice sheet metal drawing-forming in real manufacturing

Thanks in advance.

Added images

Square Square

Attachments

e1.pdf, 39.1 KB
Download

2 answers

  • Roger-Marie Couture
    Roger-Marie Couture over 1 year ago

    Your part can not be deployed if it is a part punched.
    It is possible to model the part but not to get the exact unfolded form including the hole since the hole is only when punching.
