How to model flow control valve

Mahesh
Mahesh
8 Feb, 2012 08:26 AM

I need to model flow control valve.
Can any body help me out in designing FLOW CONTROL VALVE in Pro E or any other software and convert the same into STEP file.
Plz

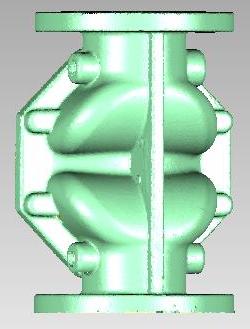

4.JPG 4.JPG 4 IN BODAY.igs

3 Answers

Manolis Theofilos
Manolis Theofilos
Answered on 8 Feb, 2012 12:11 PM

You can import the igs file and then choose save as (or export as depending on your software) step file

Guido De Angelis
Guido De Angelis
Answered on 13 Feb, 2012 08:13 PM

I have a flow control valve model. If you haven't resolved your issue yet, e-mail me and I will be happy to send it to you.
Guido De Angelis

Mahesh
Mahesh
Answered on 14 Feb, 2012 07:38 AM

I am finding difficulty in designing flow control valve. I have designed it partially. I am very happy if you send me the flow control valve part model either in STEP format or Pro Engineer format
