HOW TO REMOVE THE PART IN SOLID WORKS?

By Rahul Kapoor on 19 Oct 08:36 8 answers 2492 views 6 comments

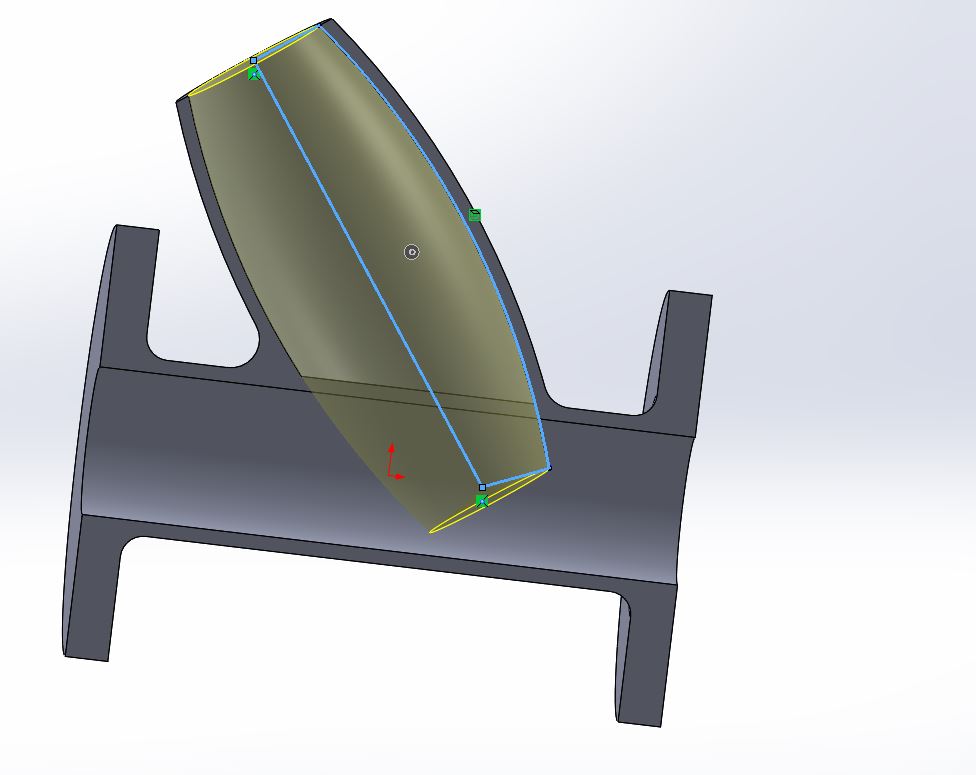

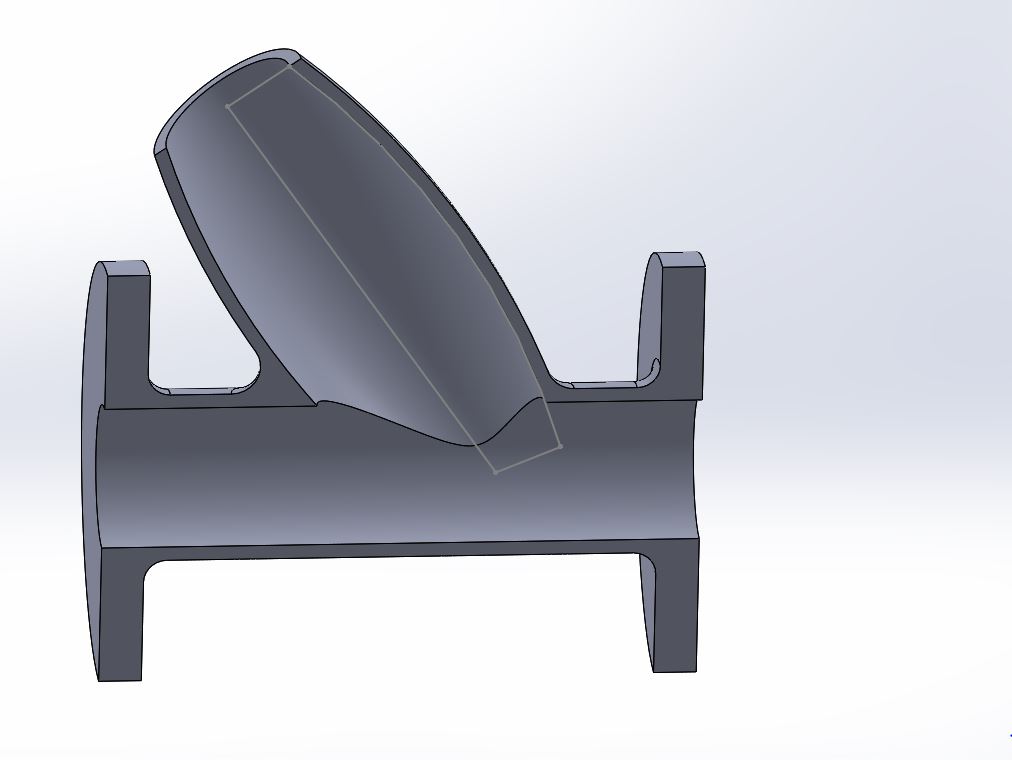

Can anybody tell me how to remove the part show in the model

Attachments

flanged strainer.SLDPRT, 400 KB
Download
SOLID WORKS PROBLEM.docx, 285 KB
Download

8 answers

  • 46a01e21
    46a01e21 almost 3 years ago

    Stephen Nyberg is right - a much cleaner model. The remodel is better than my fix - but you did ask how to remove / fix your current model.

    The easiest way to remove the "surface"; add a cut revolve based on a converted sketch (the one used to produce the protrusion).

    Attachments

    flanged strainer_Mod.SLDPRT, 431 KB
    Download
  • Stephen Kingston
    Stephen Kingston almost 3 years ago

    Try this : Click under sketch > 3D sketch
    Then click 'Convert Entities' and click the edges surrounding the area you want to remove. Once done, exit the sketch. Click 'Extruded cut' and select a plane almost parallel to the portion you want to remove. Enter a desired height and hit the checkmark. It should be gone. Let me know if it worked.

  • Ladis Ladis
    Ladis Ladis almost 3 years ago

    Well, I cannt open the file since this is a future version Solidworks so that I can try it but have you tried this:

    Got to Command Line - Insert - Cut - Boundary (or "With surface")

  • Rahul Kapoor
    Rahul Kapoor almost 3 years ago

    Sir check it

    Attachments

    flanged strainer.SLDPRT, 864 KB
    Download

Add your answer to: "HOW TO REMOVE THE PART IN SOLID WORKS?"
