how to rotate a spline sketch that i imported into the solidworks?

By chao sui on 15 Jul 04:33 2 answers 774 views 0 comments

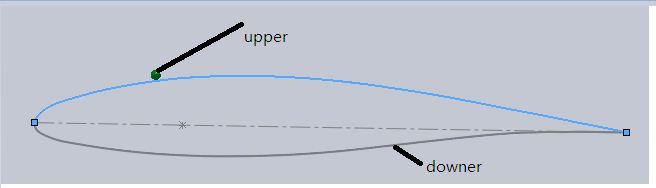

i have gotten the coordinate data of an airfoil: the upper spline and the downer spline. I import them into solidworks by "curve through xyz points"command. Then i use "composite curvature "to combine the two line into one and convert them into entities. But i failed in rotate the entities. am i any place wrong? please help.

Added images

Square

2 answers

  • Blackend
    Blackend about 3 years ago

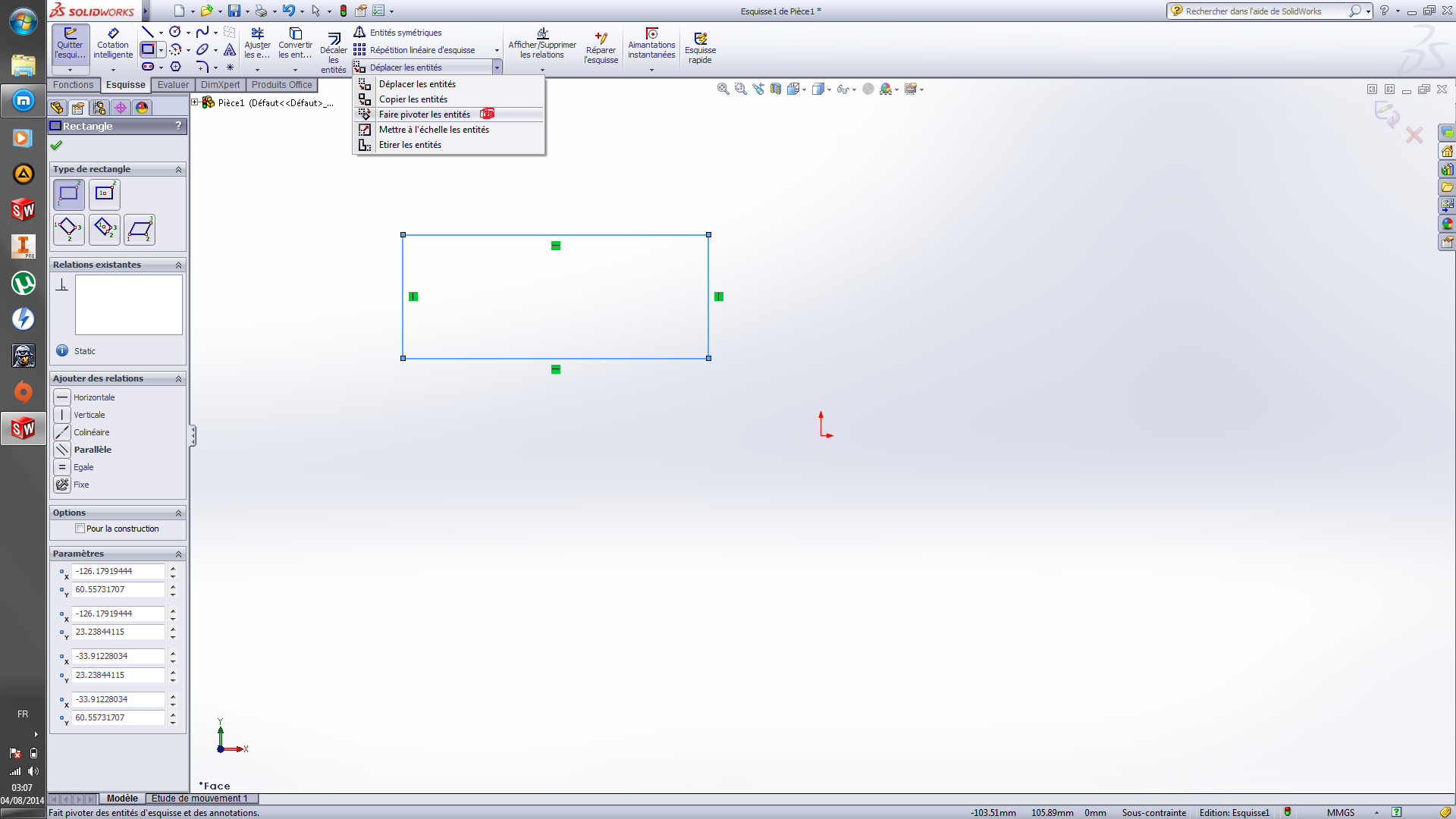

    when you are editing you'r sketch press the future rotate sketch and choose the curves to rotate and then the point of the rotation and then choose the rotation degree
    if this doesn't help please let me know

  • chao sui
    chao sui about 3 years ago

    thank you. it works.
