How to split a face for SimulationExpress Analysis

By Robert Beres on 24 Feb 16:03 2 answers 1 comment

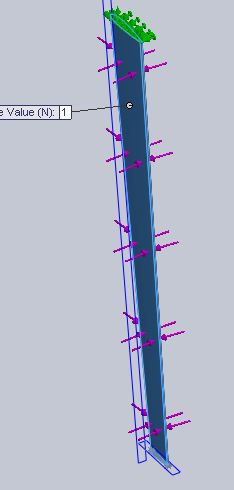

I have the profile of an airfoil I extruded and now I am trying to analyze forces on it. However the extrusion resulted in one face for the entire airfoil profile but I need to analyze forces on only one side of the airfoil (this is a keel for a sailboat). Any recommendations?

Thanks in advance.

Added images

Square

Attachments

keel_6forAnalysisGC.STEP, 25.3 KB
Download

2 answers

  • rob
    rob over 4 years ago

    draw a sketch on the plane you want to split. then go to Insert => Curve and choose Split Line.
    Then project the line on the face, select both and your face is splitted so you can put the forces where you want.

  • Salman Khan
    Salman Khan over 4 years ago

    There is an option for symmetrical view in the toolbar. But for that you have two draw 2 points on the model if it has more than one symmetrical view. By pressing that button, they automatically recognizes it highlights the other half.
