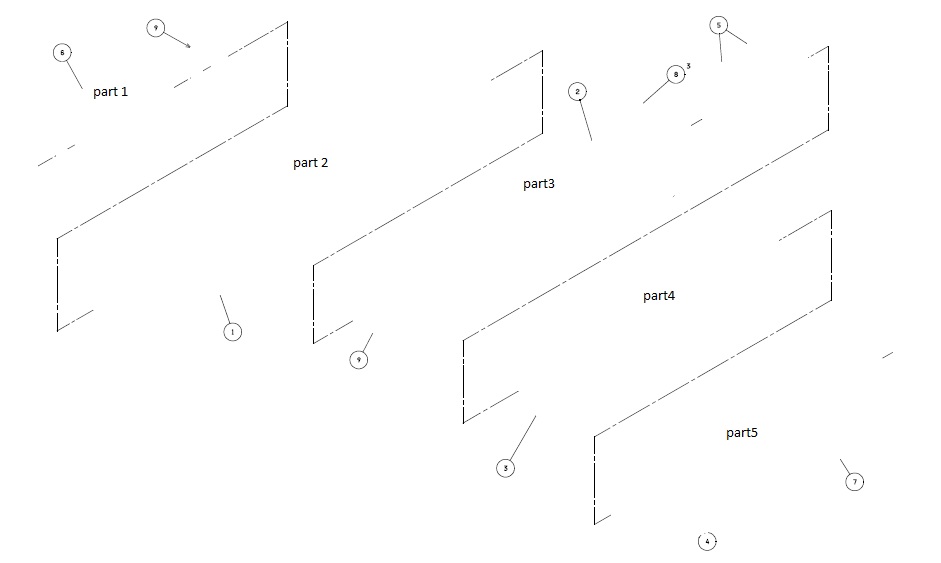

how view complex assembly system in drawing like this?

By mamadqomi on 06 Oct 12:47 1 answer 2 comments

in assembly that have very files how view all component in drawing sheet?

Added images

Square

1 answer

  • İbrahim Kesici
    İbrahim Kesici over 1 year ago

    You can use exploded view. In assembly file,chose the "Exploded View" and explode the parts in axis directions which you want to see.(Save it is another file than the first) That link can be helpful:
    https://www.youtube.com/watch?v=xn-8WJxUYzY
    In the drawing file, you should call the exploded view. Probably isometric view would be the best. If you do not see the assembly exploded sign the thick of show as exploded and if still not exploded change the view (for example from exploded view1 to exploded view2)
    I hope it will be useful.
