Issue with Wrap Feature

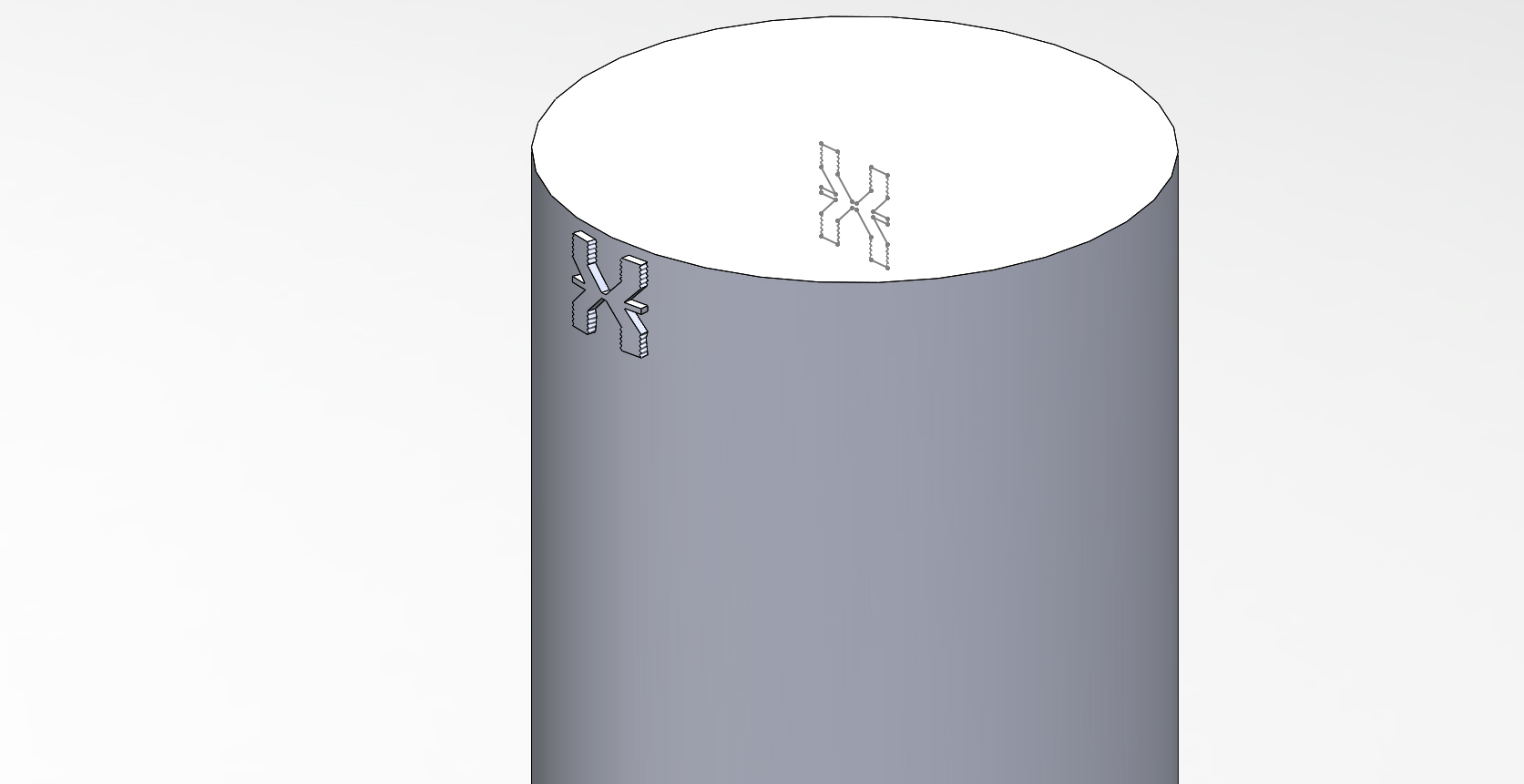

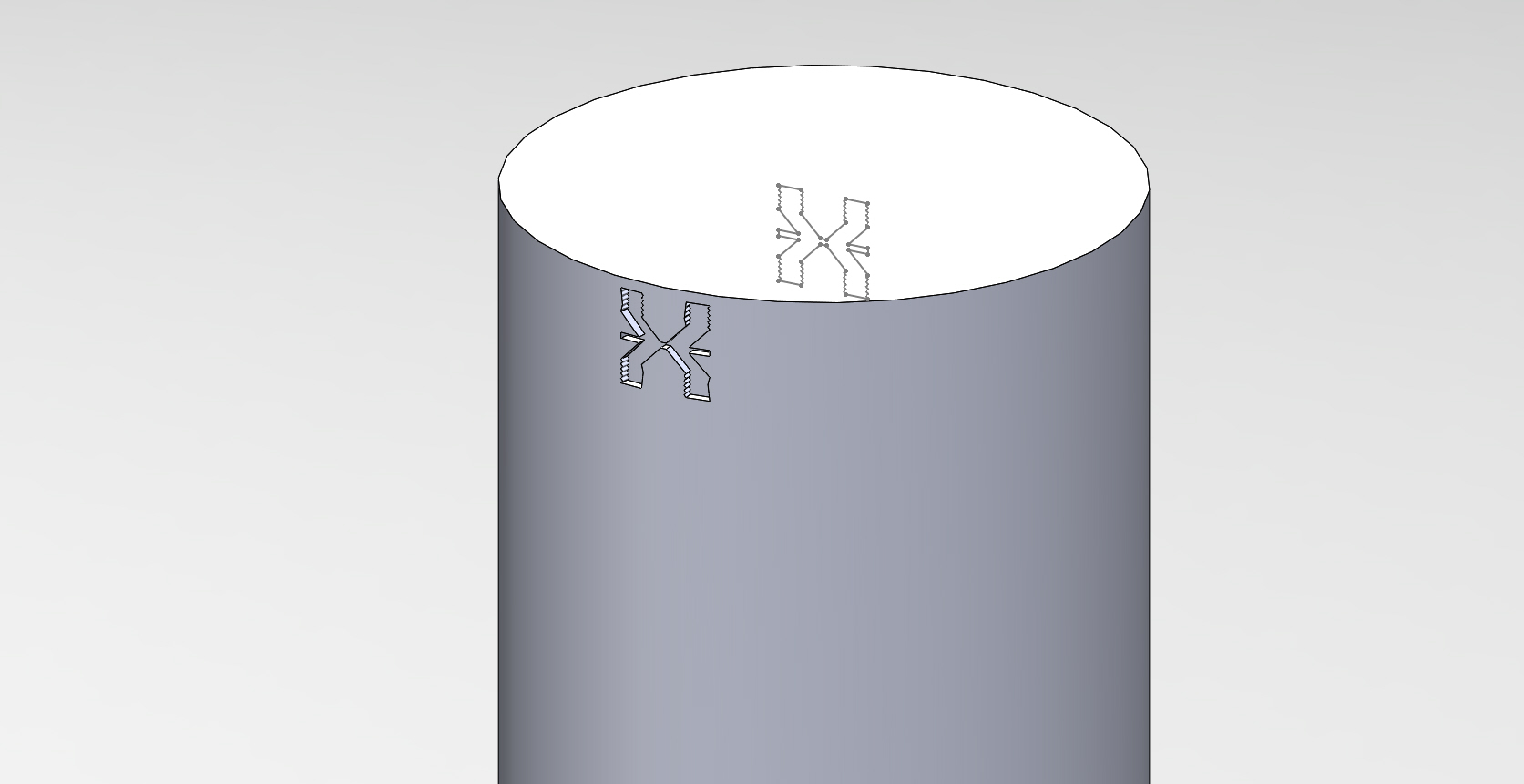

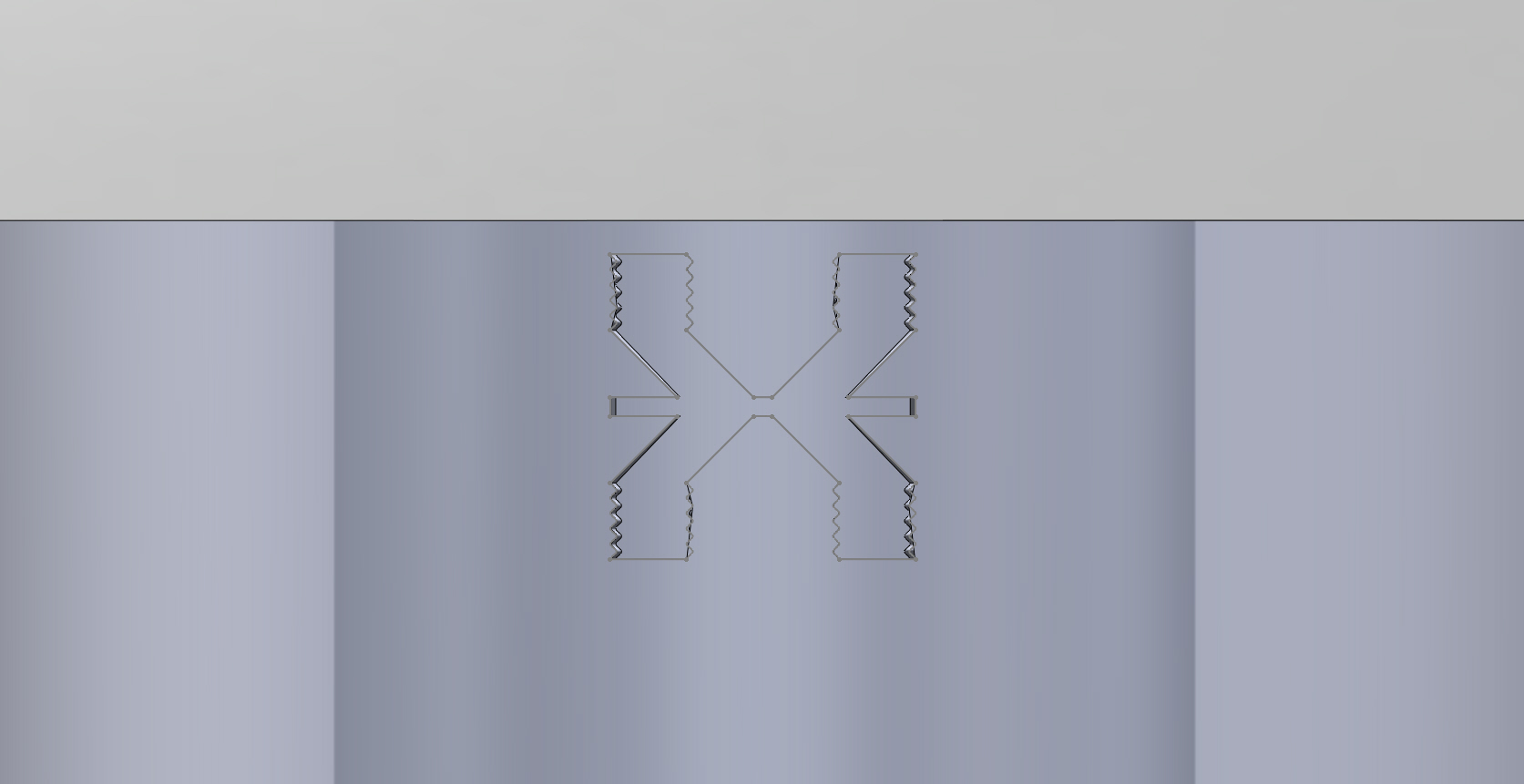

I am trying to wrap a sketch around a cylinder to create a stent. When I try to use the wrap feature it works but it makes my cylinder disappear except for the top and bottom. I have never seen this before. I think that the sketch's weird shape might be the reason but I've checked and it seems to be all closed.

Answer

Comments 0

2 Answers

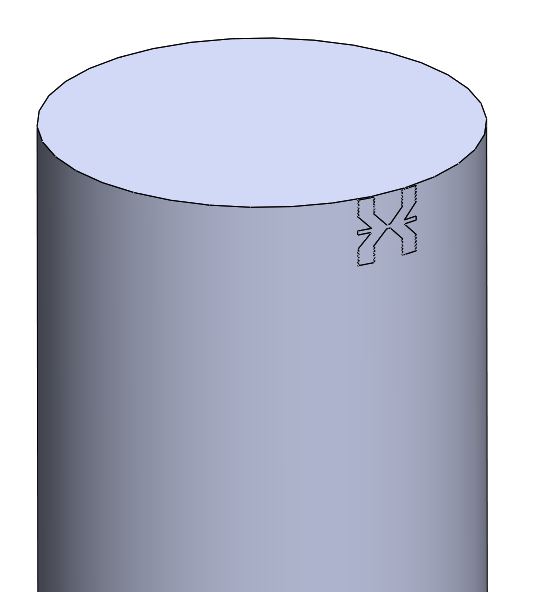

You have to leave a separation between the top of the sketch and the limit of the cylinder, being coincident detects everything as a single sketch and for that reason generates that error in the operation. Good Luck


Comments 0

Hi,

If you are meaning this. You can use "Projection" under "Split Line" as an option to achieve this. I cannot exactly put my finger as to where the error is while using the Wrap-Scribe feature. I will have to play around the part to exactly figure out the reason.
