Model in Solid Works

Rahul Kapoor
Rahul Kapoor
13 Dec, 2014 04:04 AM

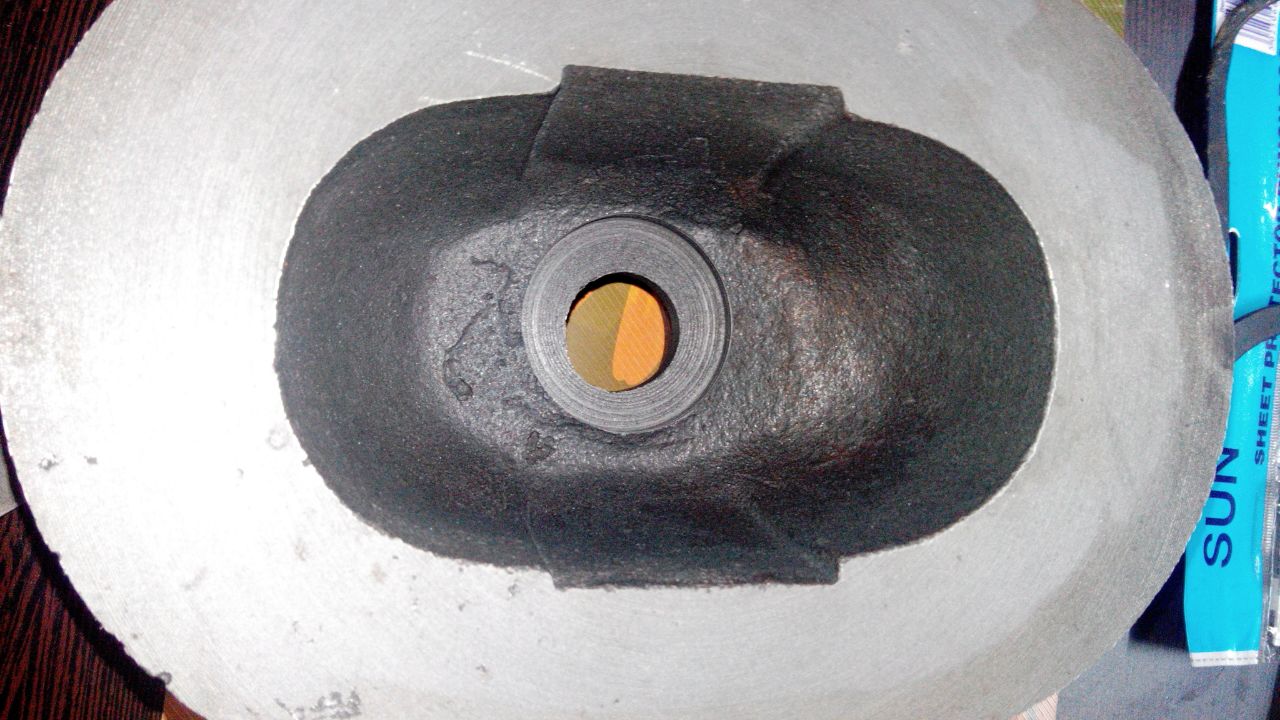

How to make the part in SW with the cut as shown in the pic 4

IMG-20141213-WA0004.jpg IMG-20141213-WA0004.jpg pdf.pdf bonnetpics.zip

4 Answers

saeid mirshahidi
saeid mirshahidi
Answered on 13 Dec, 2014 09:08 PM

I Hope it Help You

Answered with a tutorial: https://grabcad.com/tutorials/model-in-solid-works

bonnet-S.SLDPRT
Rahul Kapoor
Rahul Kapoor
Answered on 14 Dec, 2014 05:20 AM

This is my part

BONNET.SLDPRT
saeid mirshahidi
saeid mirshahidi
Answered on 13 Dec, 2014 06:14 PM

You Can use lofted cut with suitable sketch & guide curve

saeid mirshahidi
saeid mirshahidi
Answered on 14 Dec, 2014 10:25 AM

perfect
But not exactly same drawings & Pics
