move a body feature using compass

By Moksh Yadav on 02 Nov 15:39 1 answer 171 views 0 comments

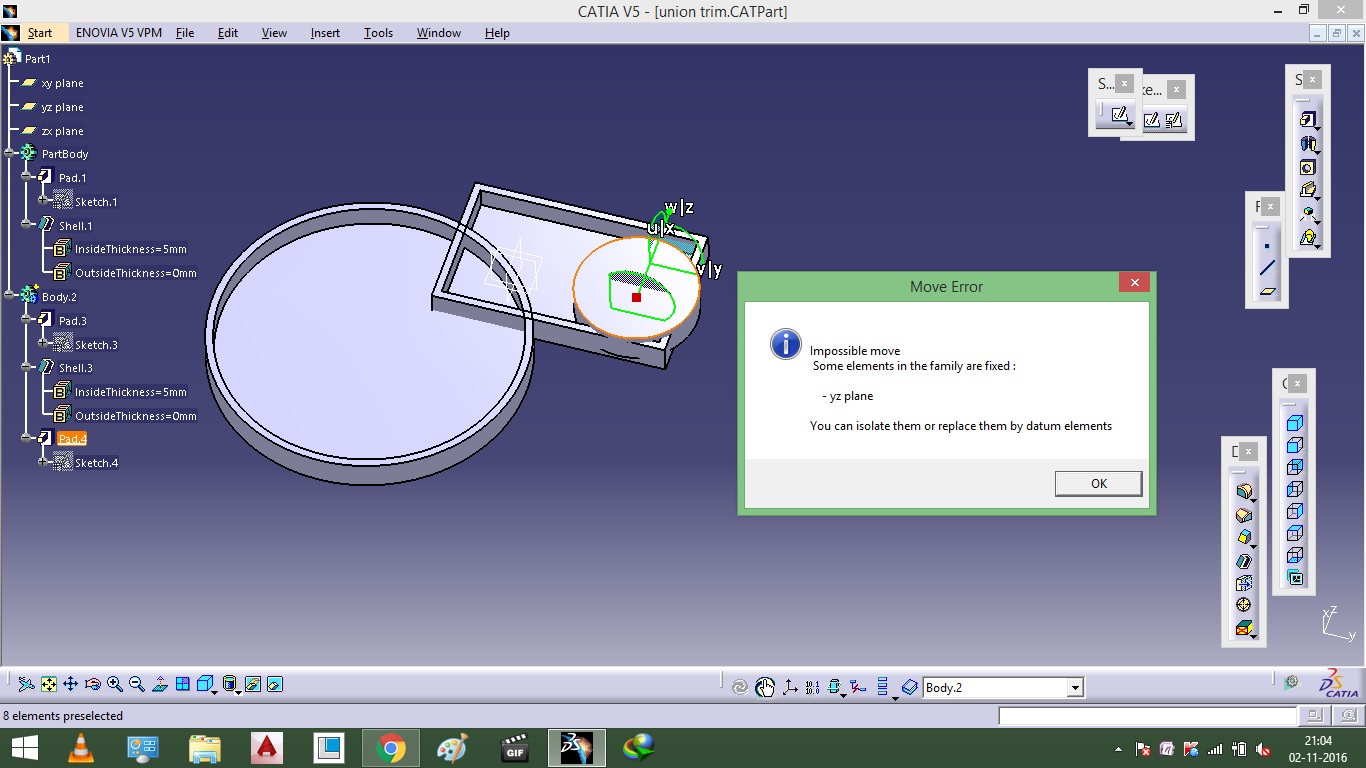

I dont understand that some times i can manipulate the pad by using compass in part design
it just asks that do you want to make the sketch free
but sometimes it shows a message that some elements are fixed
why it is so
i mean how would i get to know that which features i can manipulate using compass

Added images

Square

1 answer

  • Vaibhav Hanpude
    Vaibhav Hanpude 9 months ago

    I think when you draw a sketch,
    you completely constrain it which means your sketch has a fixed position related to axes (like XY).
    so in order to move the pad, try not to give dimensions related to axes.

Add your answer to: "move a body feature using compass"
