Need help in creating a chain link system with 3 types of links in solidworks

vikas varma
vikas varma
19 Jan, 2021 10:55 PM

chain_out 1 and chain inner1 need to come for 26 times while mater_1 need to be attached to the 26 the of chain inner1 and so on for the pattern. Can any one please help me with it

Master_1.SLDPRT chain_inner.SLDPRT chain_outer_1.SLDPRT

1 Answer

Dark
Dark
Answered on 21 Jan, 2021 02:03 AM

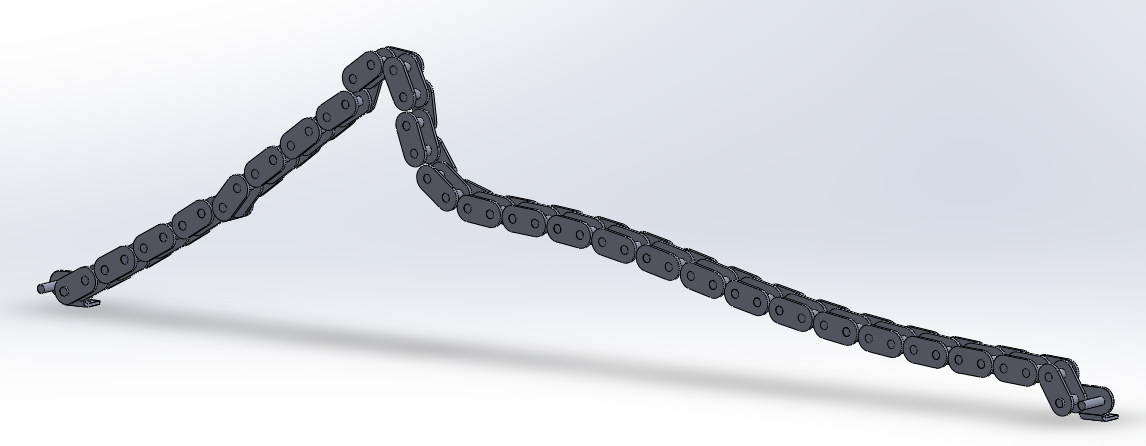

Something like this? Couldnt really understand what you required

Sem Título.png Sem Título.png
