Abdelrahma Ahmed
Abdelrahma Ahmed
29 Feb, 2020 11:48 PM

6

bfdbdfb.png bfdbdfb.png

3 Answers

özgür kesebir
özgür kesebir
Answered on 3 Mar, 2020 04:26 PM

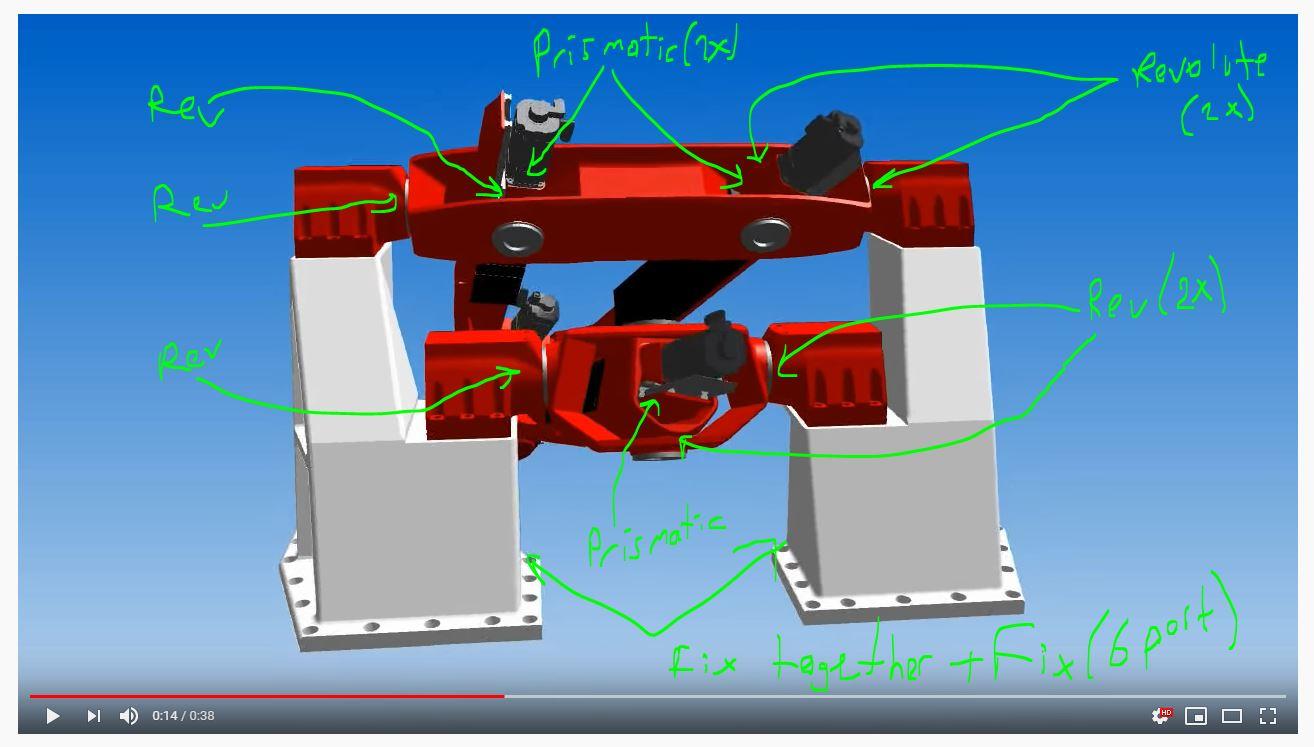

connections step1

connections_01.JPG connections_01.JPG
özgür kesebir
özgür kesebir
Answered on 3 Mar, 2020 04:26 PM

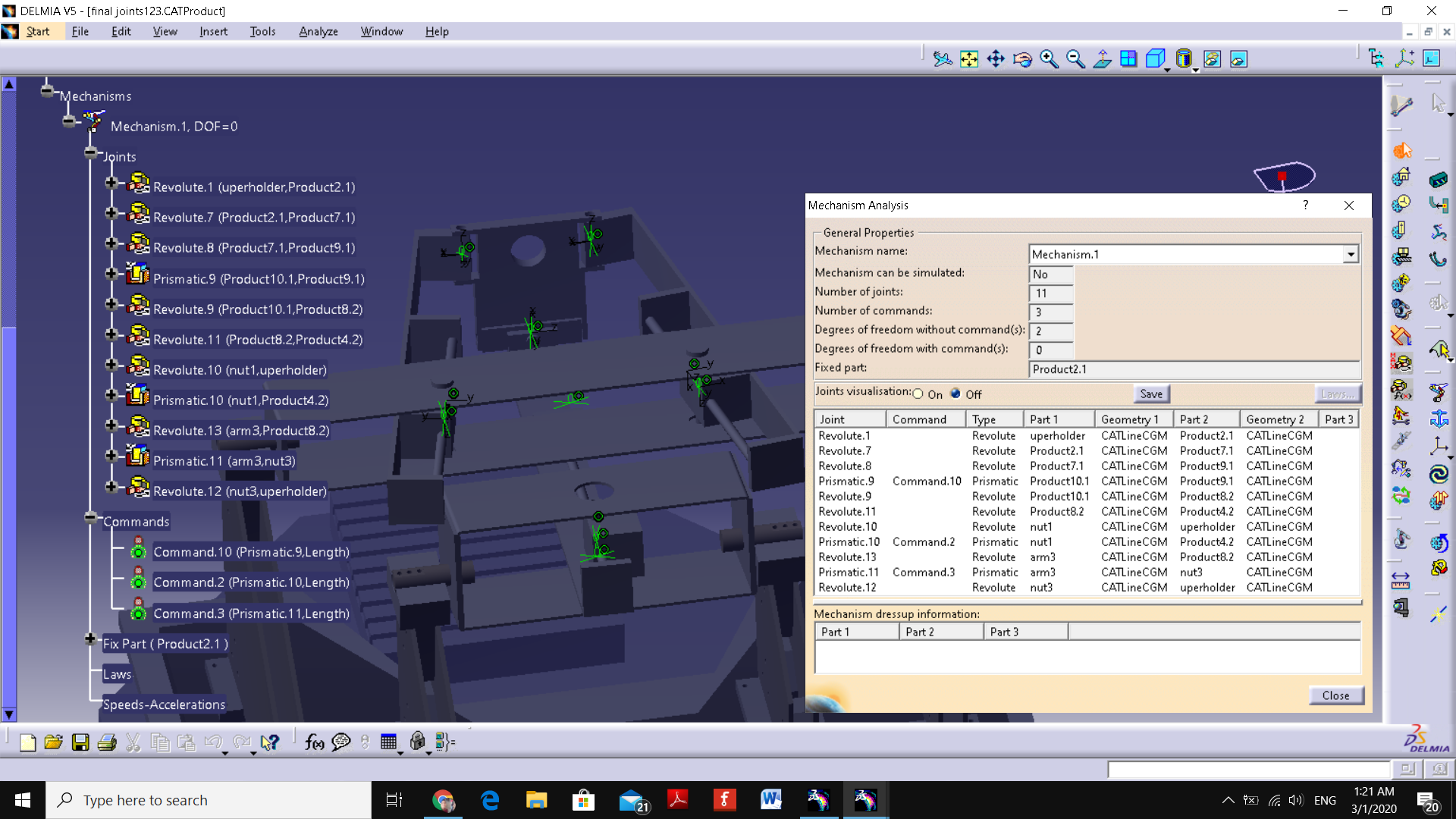

connections step2

connections_02.JPG connections_02.JPG
özgür kesebir
özgür kesebir
Answered on 3 Mar, 2020 04:30 PM

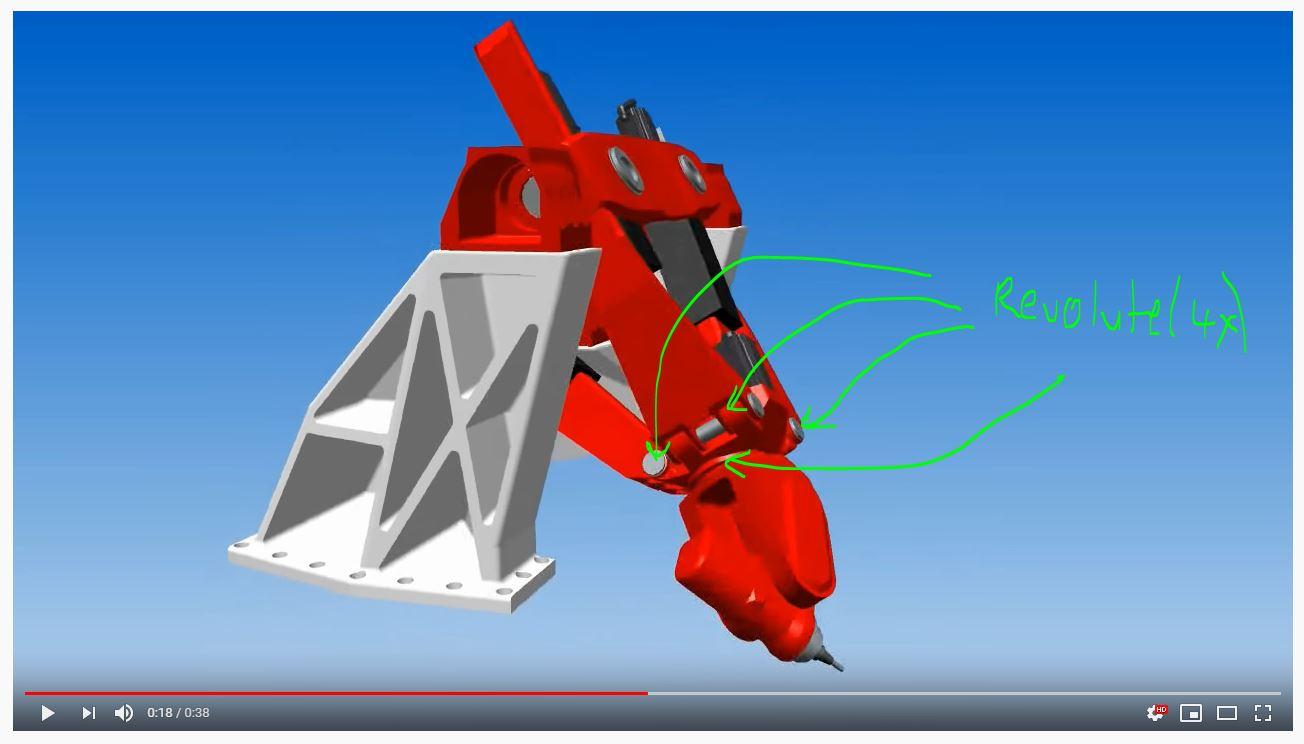

first way = 3x prismatic joint and 1 revolute can be length driven.
second way = add point to the front drill and make a path with point and curve joint with lenght driven. (1 more part needed and can be hidden at the simulation)
