Problem in NX10

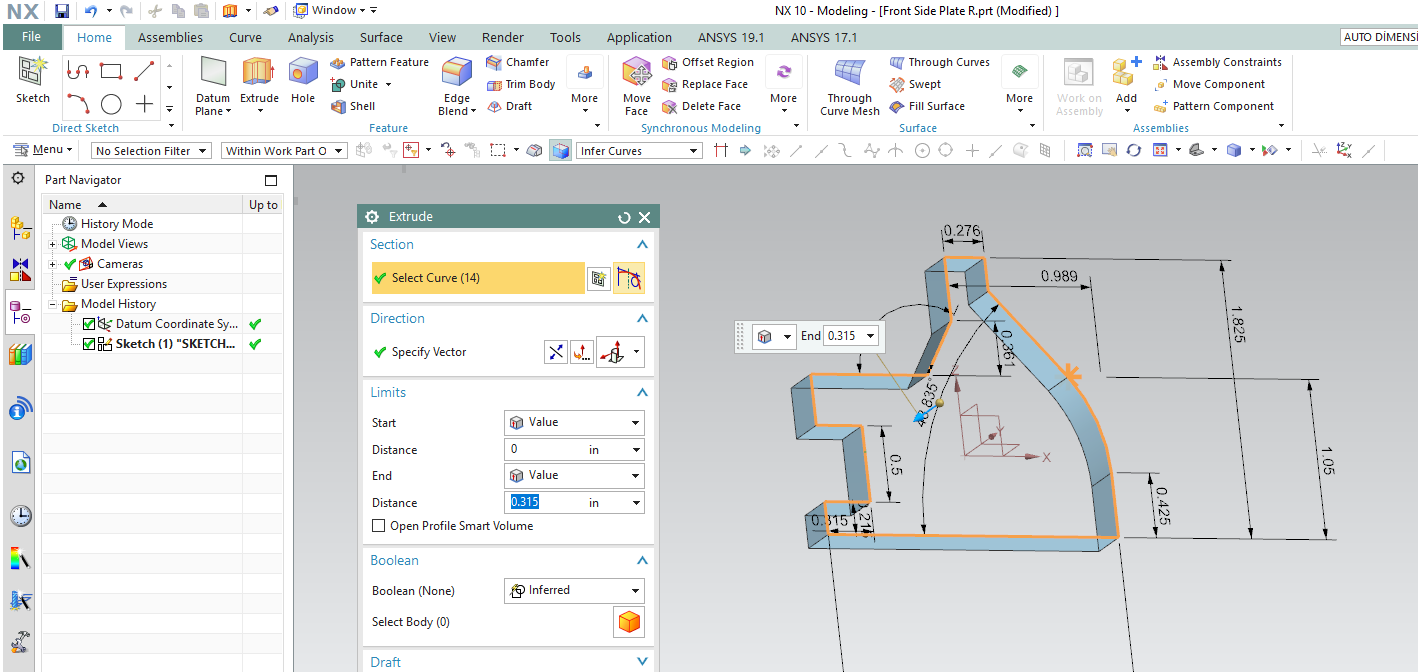

Hi everyone, i want to obtain the 3d solid extrude shape of that closed region(its exactly closed), but when i apply it to that closed curve, it is only making extrusion like in the photo. I wanna obtain the 3d solid extrusion but i can not. Could you explain why? Thanks.

Answer

Comments 0

6 Answers

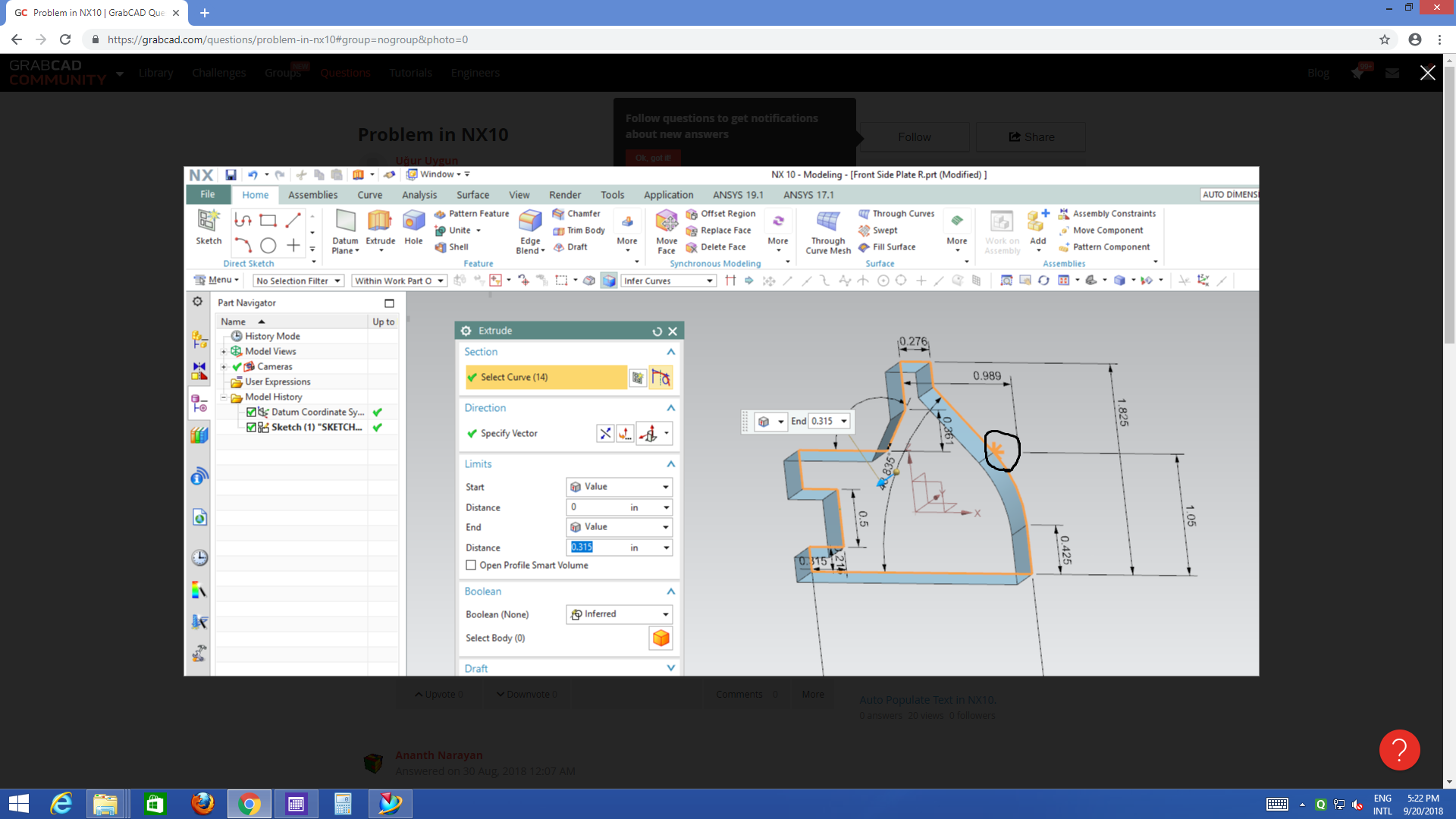

Try to resolve or make geometry better at the asterisk is been shown. If the geometry is to open or overlapping, you get surface instead of solid.


Comments 0

You can check the curve to be closed loop by creating face from curve or also revolve with some axis
You can increase accuracy of dimensions


Comments 0

The 'asterisk' is showing you where the discontinuity is.


Comments 0

Did you constrained the arc and the line exactly? For example tangent constrain. Maybe there is a small gap between them, check the connectivity of the arc and line. Hope this helps!


Comments 0

Can , I try it in solidedge software if u okay means only
and I will send you this part as step file and part file also
Waiting for your reply
Inbox me msg


Comments 0

You have to join sketch , because in your sketch there is discontinuity.

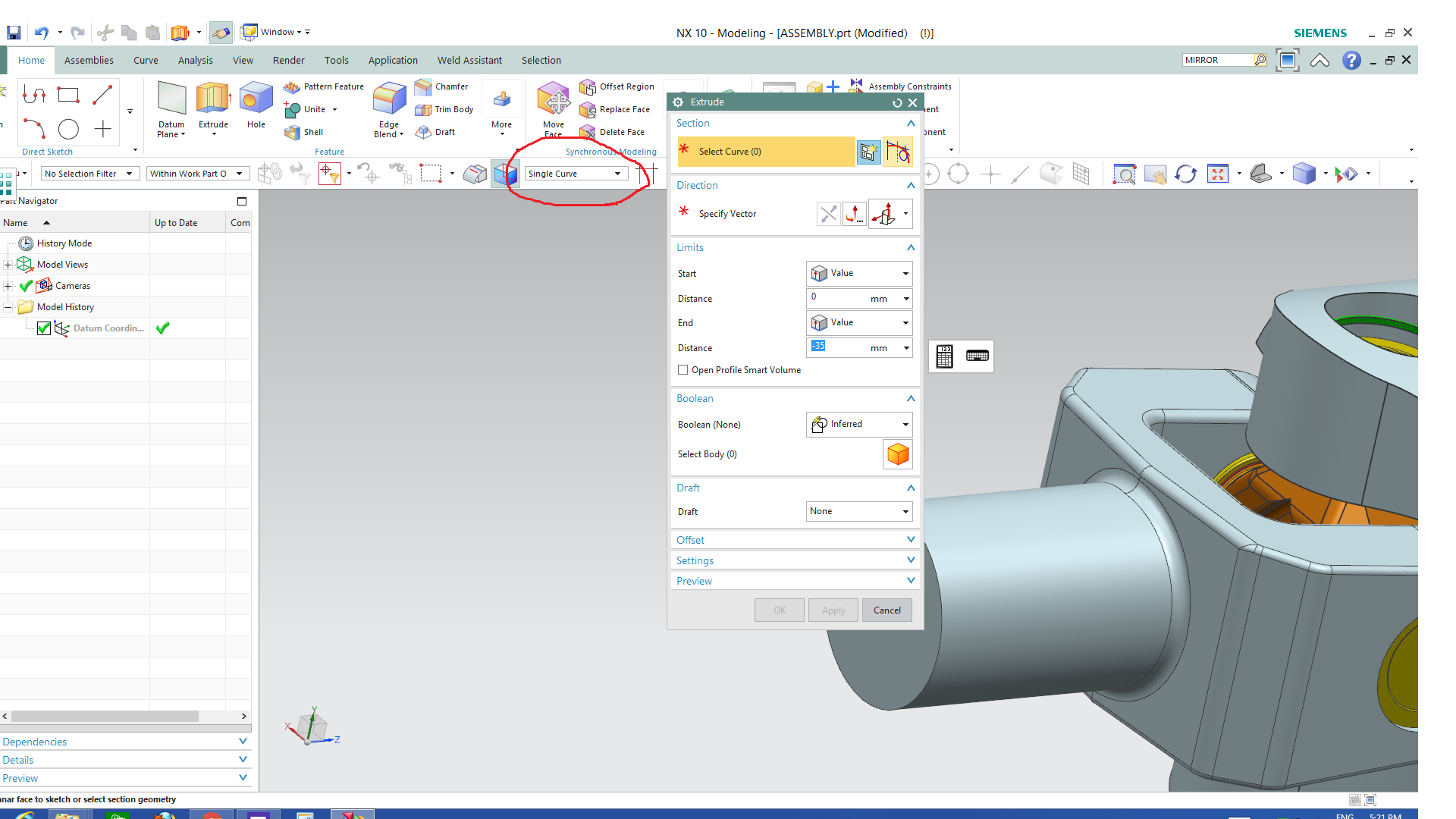

or you may try single curve option on Top Border bar instead of connected curve.
Thanks aot.
