Is there a way to section cut a full assemble in half with IV apart from half section view or even cutting all the IPT's one by one.

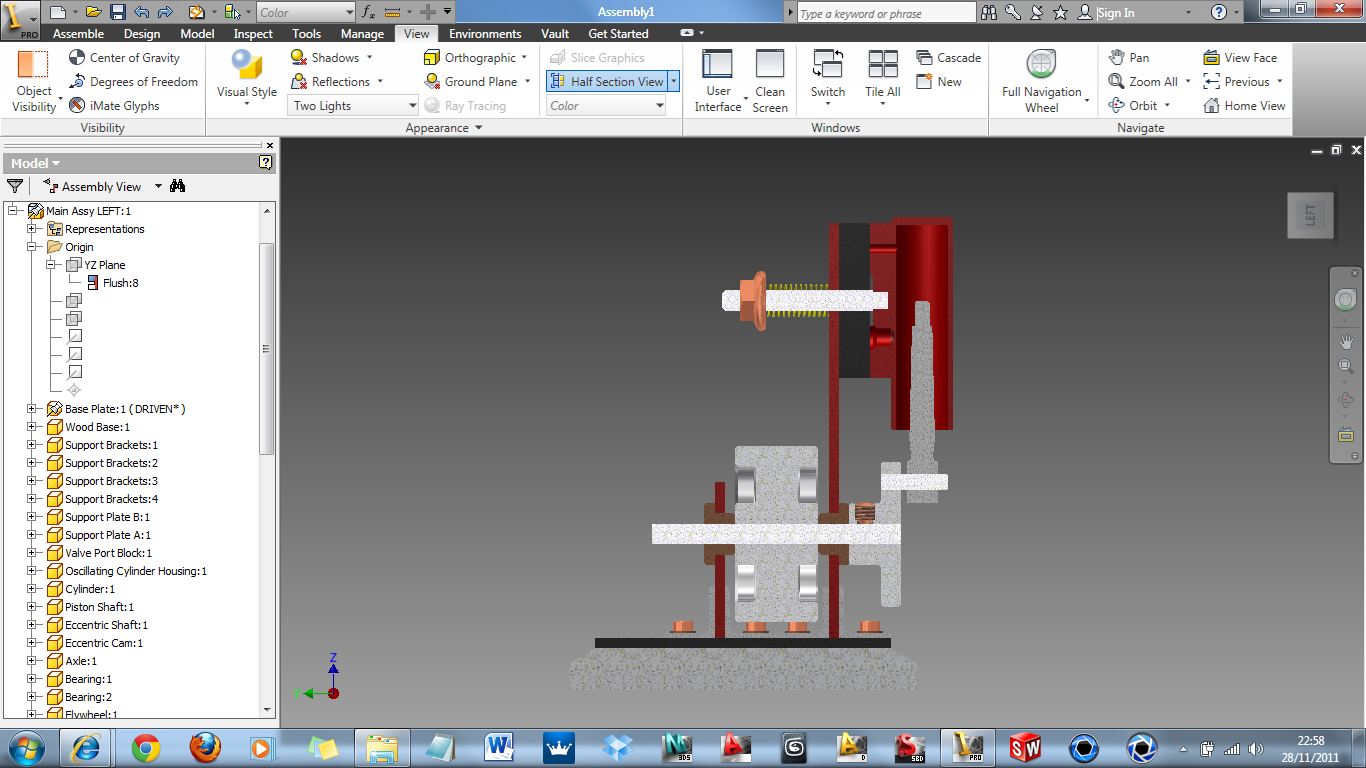

I have attached a screen shot of what I want.
Thank you in advance for help with this little problem.

Comments 0

2 Answers

You can create a "Shrinkwrap" of that Assembly. Choose the option "mantain each solid as a solid body". The result is a new .ipt with all the components as independent solids. You can then cut the whole thing using any method you want, easiest is to just extrude a big rectangle.
If you really want an Assembly (maybe for parts list purposes), you can then use the "Make components" command and create a new assembly with cutted parts...
