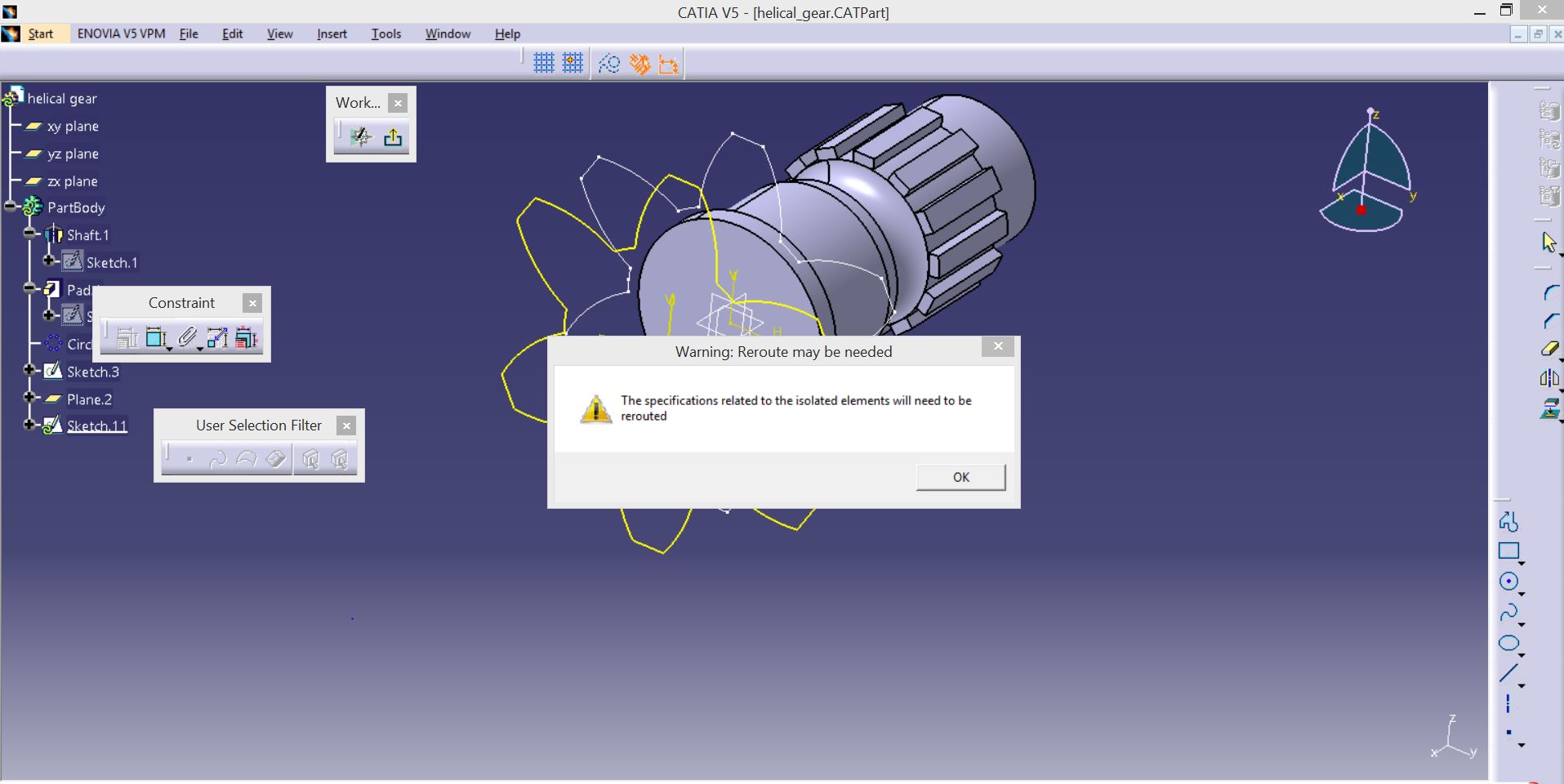

unable to use isolate command for the following attached catia part file

7 Answers

we should use but u have done one mistake while doing the tooth of the gear was open profile and please use sketch analysis after doing the sketch.generally rerouted errors will come for isolated element due to the geometric and dimensional set was not reflected to the original one


Comments 0

What is the need to use"isolate" here? Actually we don't use isolate features in CATIA. Do you want to isolate the projected 3D element?


Comments 1

isolate command for what.. can you explain clearly


Comments 0

i guess you want to do multisection solid.
multisection solid is not working right?

problem for that is.. you sketch have several open dude, please close that


Comments 0

Please go through your model.. i hope this you are expecting?


Comments 0

isolate is used to deactivate the logical link betwwn originnal and projected one.yes we always isolate the projected because if any changes in the original that effects the projected element


Comments 0

1.You need to do iso-constraint a profile u Created...
2.Then make 3d projection...
3.Now u see the projected line highlighted in yellow...
4.Then finallay isolate it.


Comments 0
