What is the problem in this model?

syed imtiaz ali shah
syed imtiaz ali shah
4 Apr, 2018 04:05 PM

I want to do the analysis of this part in Asnsy, Ansys does not accept this part.

wholeinpart.stp

2 Answers

FredSWUG
FredSWUG
Answered on 4 Apr, 2018 10:39 PM

There are two bodies in the file. One is a solid, the other is a surface.

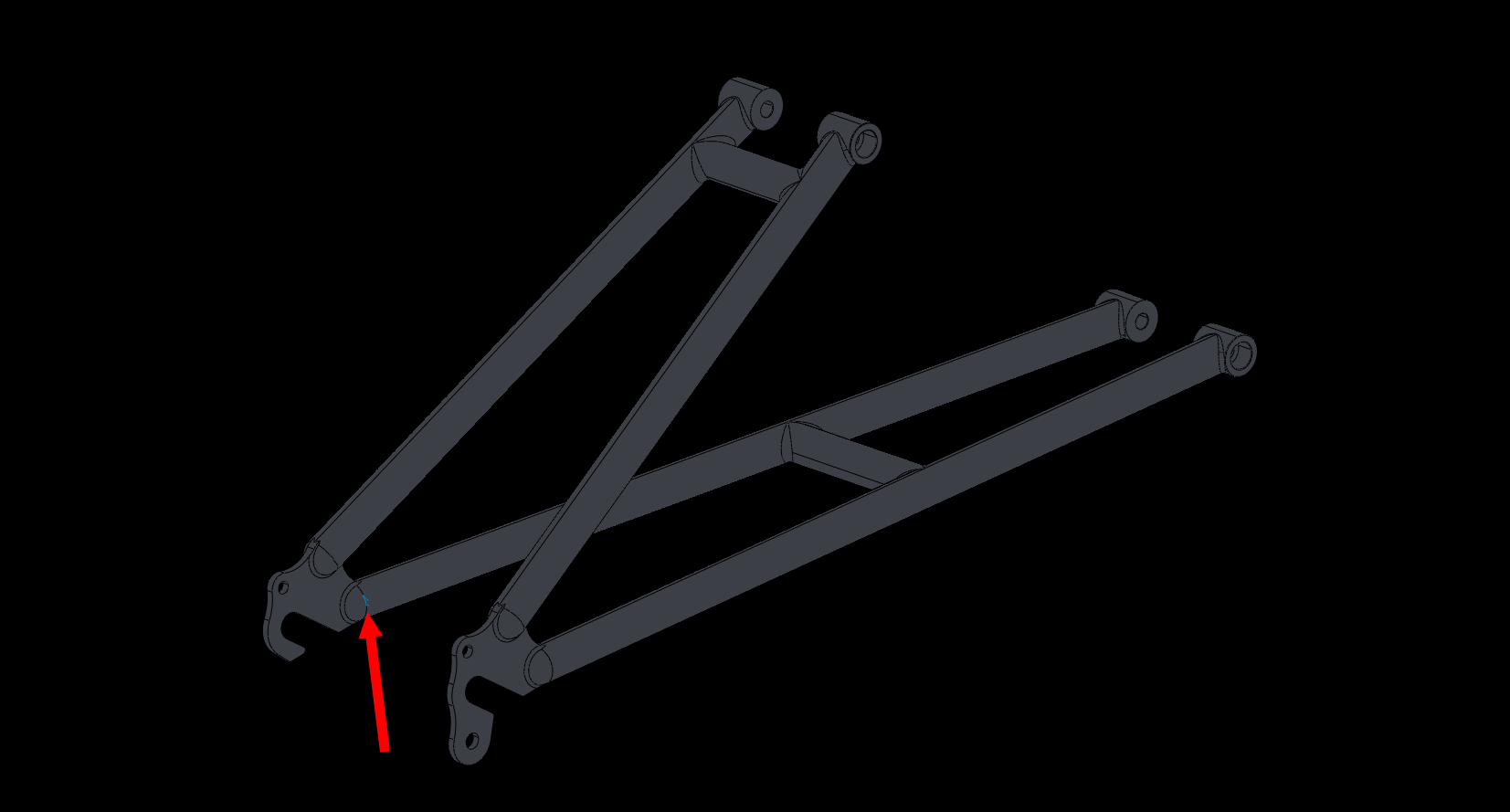

The surface body has a defect, see attached image.

wholeinpart.PNG wholeinpart.PNG
Sriram Vijayaraghavan
Sriram Vijayaraghavan
Answered on 5 Apr, 2018 12:22 PM

Kindly upload the model in .igs format, so that it can be opened in any designing app
