Wire and harness properties

By Martins Saiters on 26 Oct 08:47 1 answer 378 views 0 comments

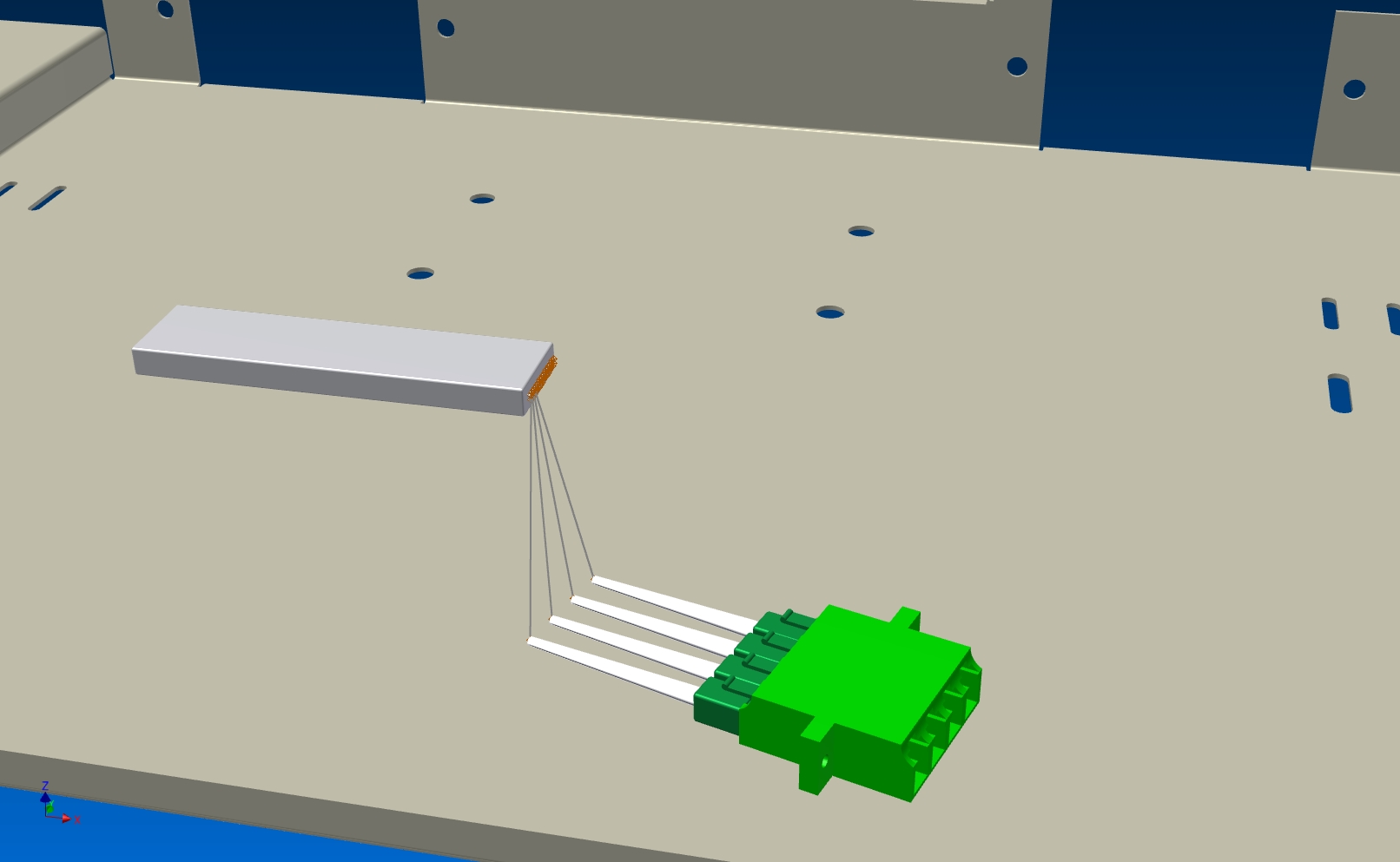

I created components, add pins to them and connect by wires. But wires are shown as straight lines, from pin, to pin.
How I can get bended wires ? Should I add a specific properties to pins, for assigning wire directions ?

Added images

Square

1 answer

  • John
    John almost 3 years ago

    If you want to gives the wires a "real" feel to them in your rendering then just make them bend a little when you make them in Inventor. While doing so ensure that they starting point and ending point end where they should. In order to get bent wires use the sweep command and use a curve driven pattern.
