YARDIM LAZIMM

mehmet türköz
mehmet türköz
2 May, 2023 03:46 PM

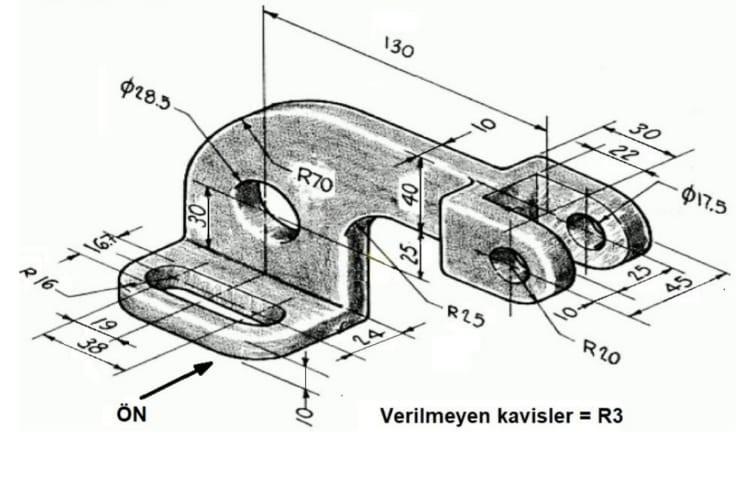

ÜSTTEN VE ÖNDEN GÖRÜNÜŞ LAZIM YARIM SAAT İÇERİSİNDE

WhatsApp Görsel 2023-05-02 saat 18.26.05.jpg WhatsApp Görsel 2023-05-02 saat 18.26.05.jpg

1 Answer

Carlos J. Veloso
Carlos J. Veloso
Answered on 2 May, 2023 07:43 PM

There are other options, here is my approach.

Reference dimensions per your convenience.

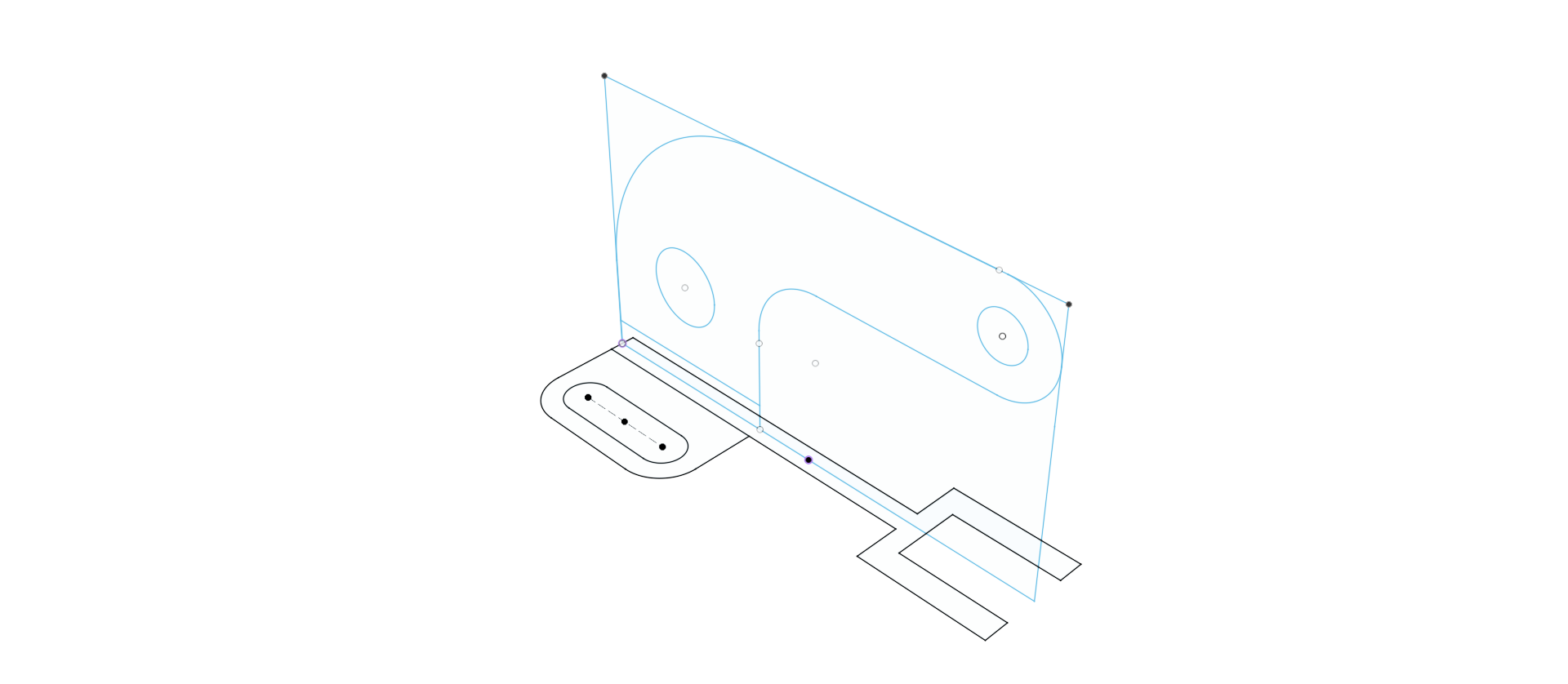

Top Sketch
Front Sketch

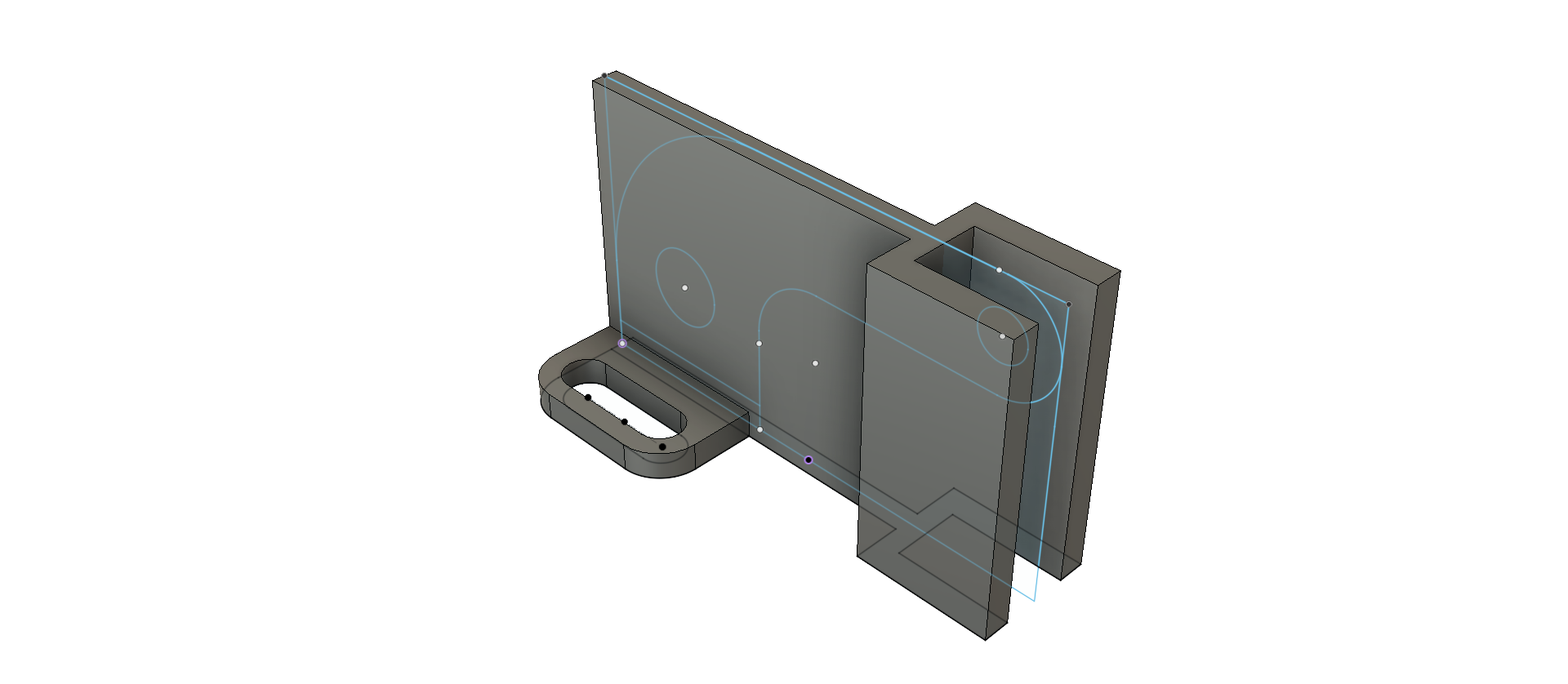

Two Extrudes for Top Sketch

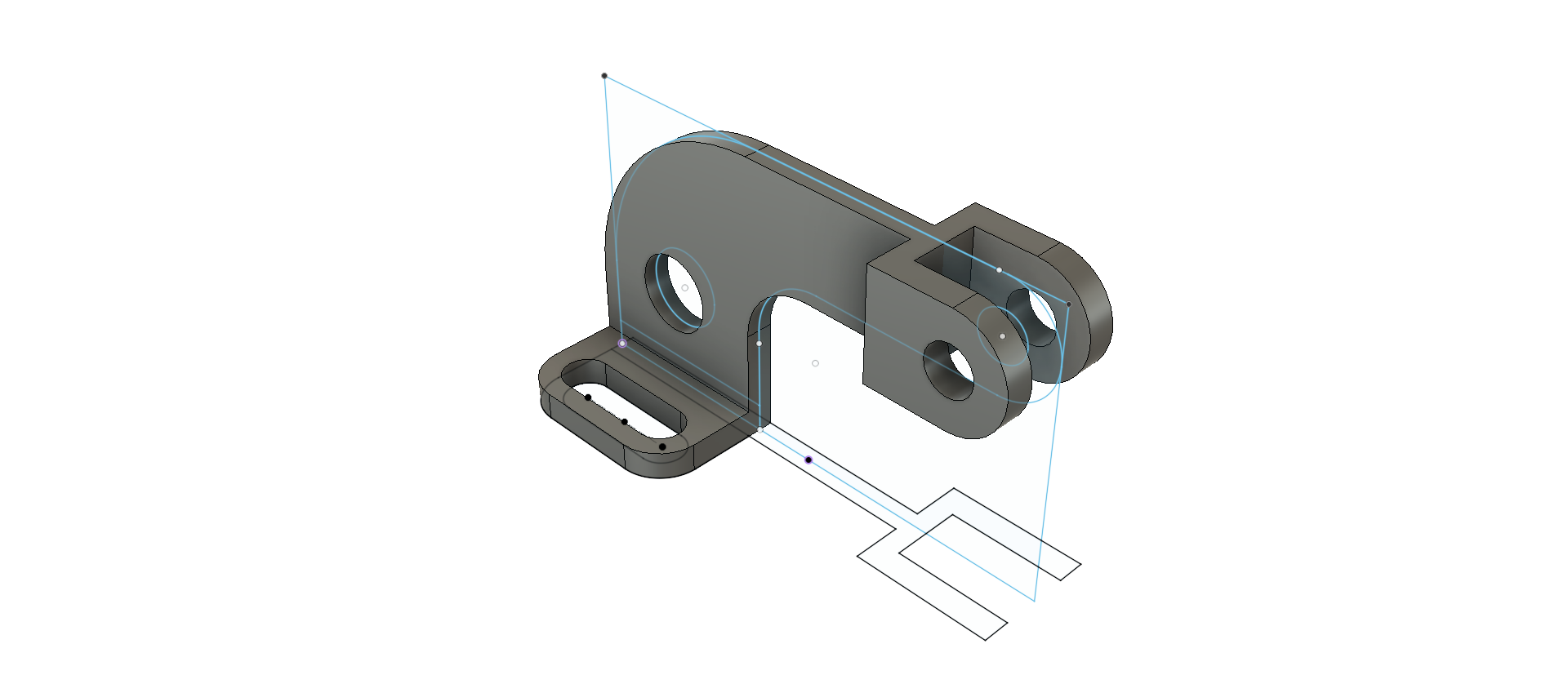

Symmetric Extrude/Cut Front Sketch

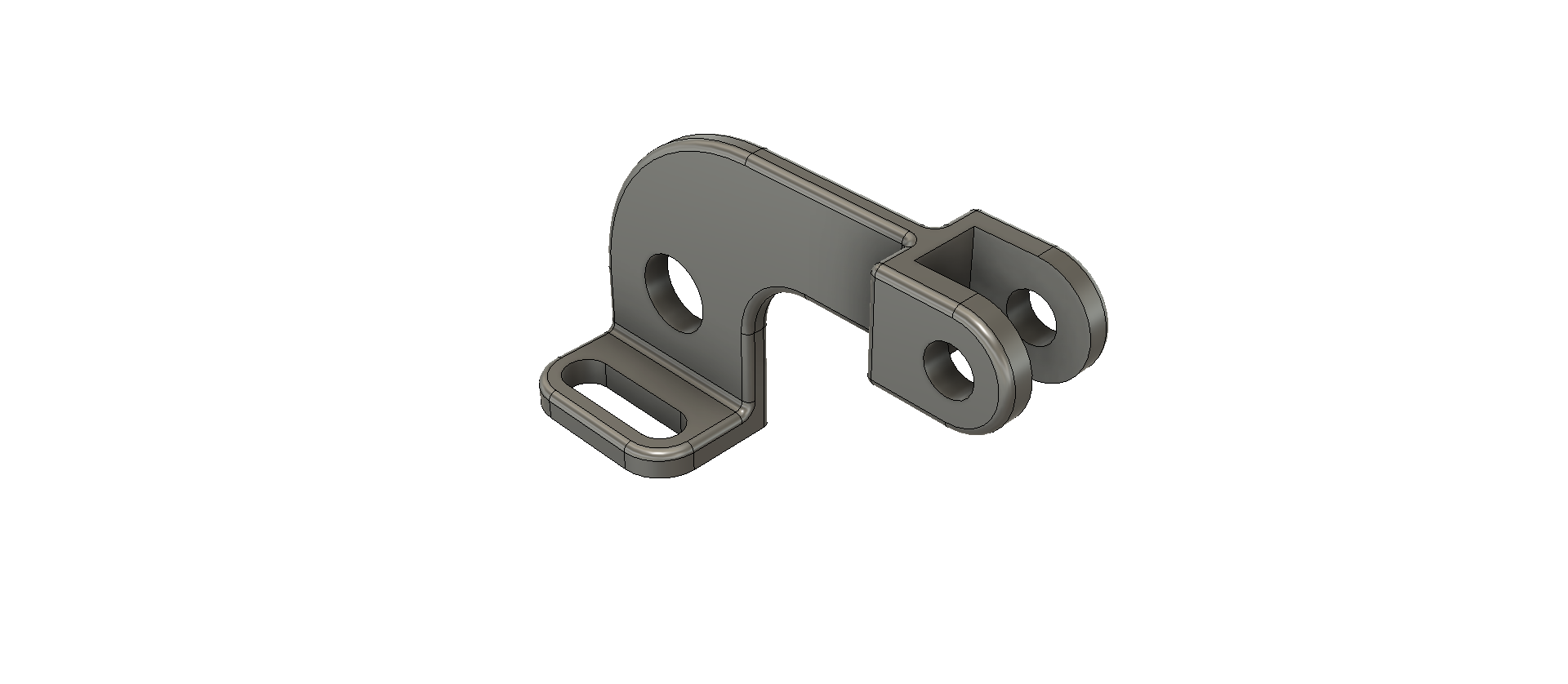

Add 3mm fillet accordingly

Fillet 3mm .png Fillet 3mm .png Symmetric Extrude-Cut Front Sketch.png Symmetric Extrude-Cut Front Sketch.png Extrude Top Sketch.png Extrude Top Sketch.png Top and Front Sketch.png Top and Front Sketch.png
