Dairy Quarter Bottle Modeling

Edgar Gidoni
14 Aug, 2021 12:51 PM

Tutorial to model our Dairy Quarter bottle in SolidWorks. You can download the 3D files here:
Dairy Quarter Gallon

  1. Step 1: Basic Sketches...

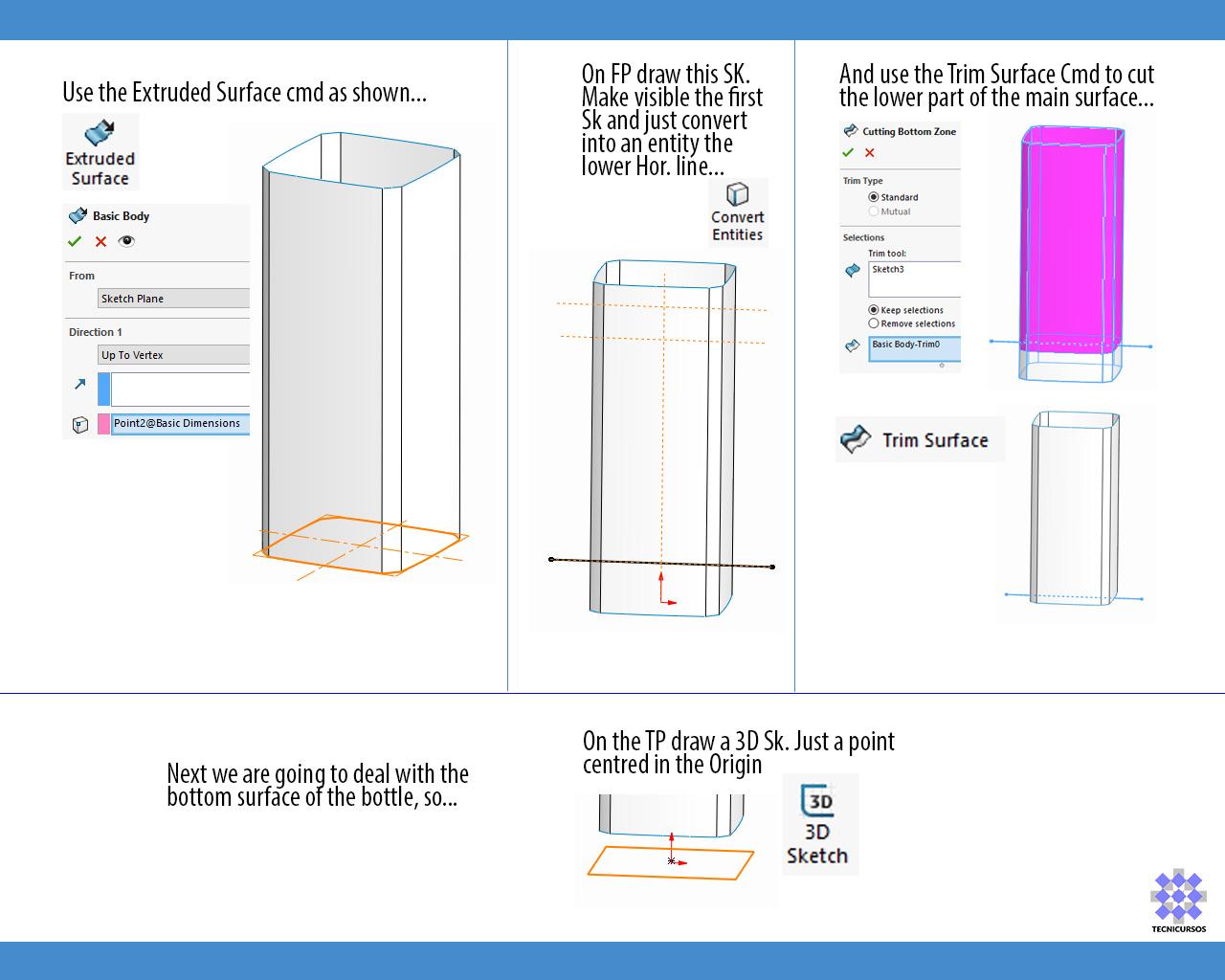

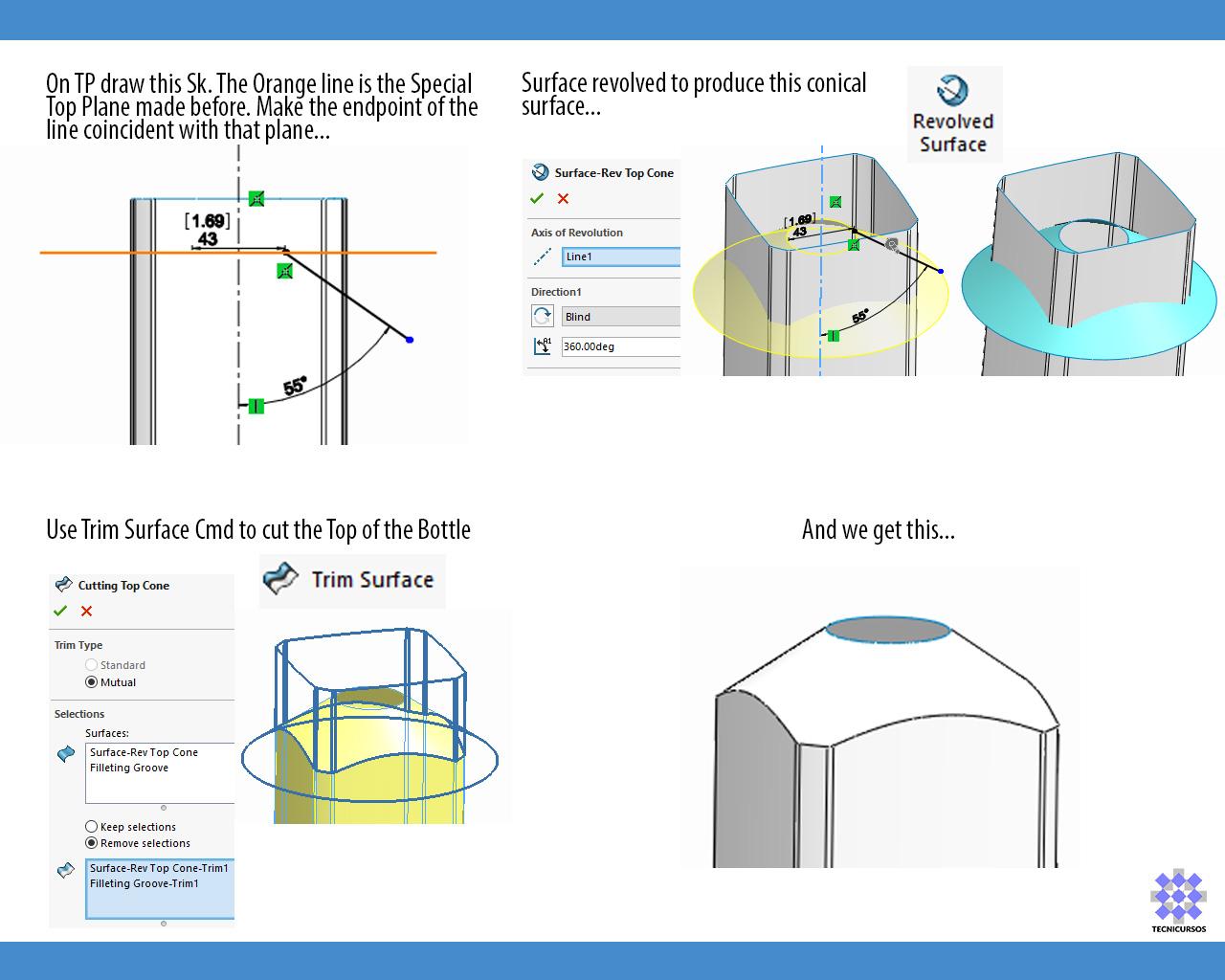

  2. Step 2: Main Body Surface Extrusion...



  3. Step 3: Bottom Surface...



  4. Step 4: Closing the Bottom Zone...

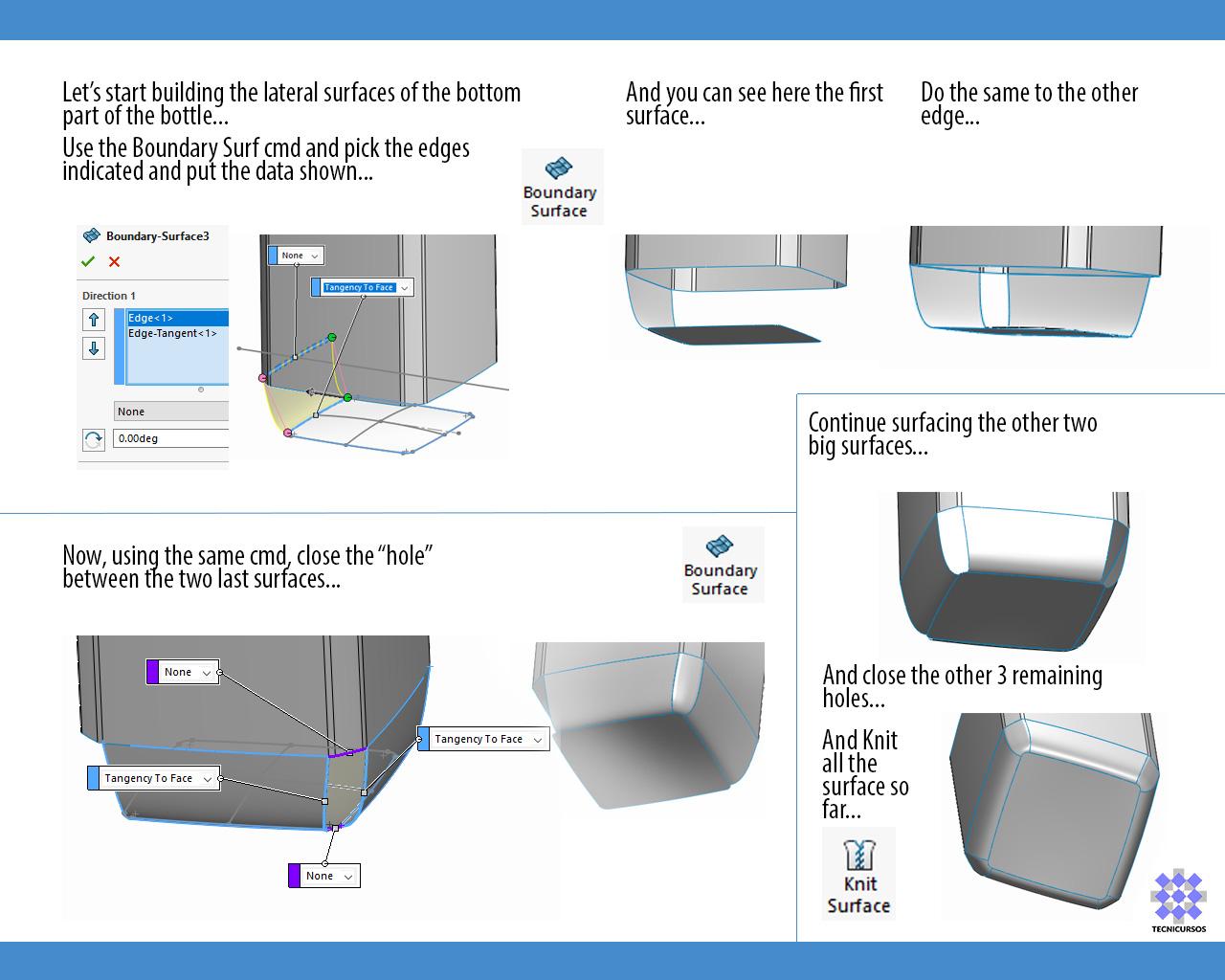

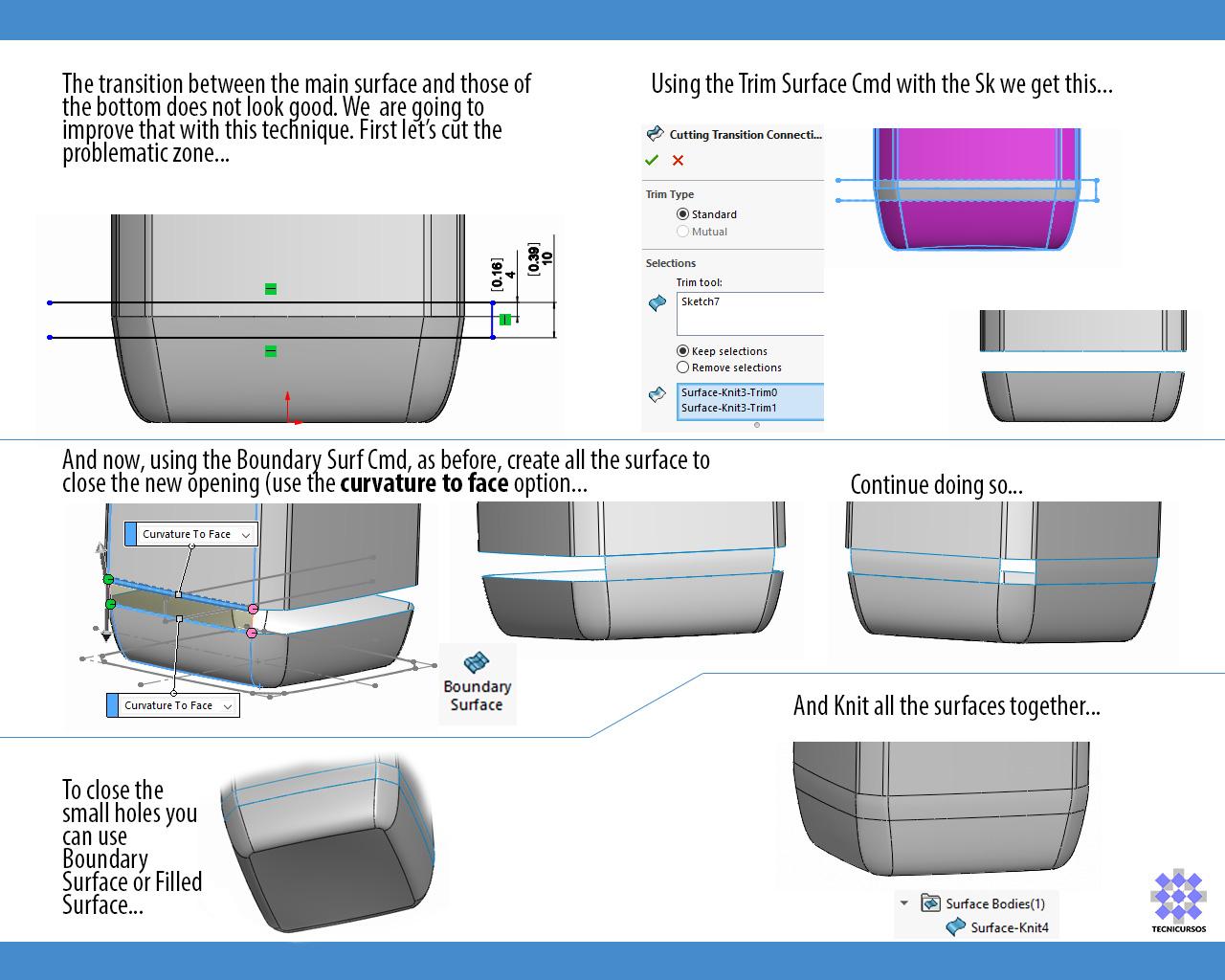

  5. Step 5: Improving Transition...



  6. Step 6: Creating Auxiliary Planes...

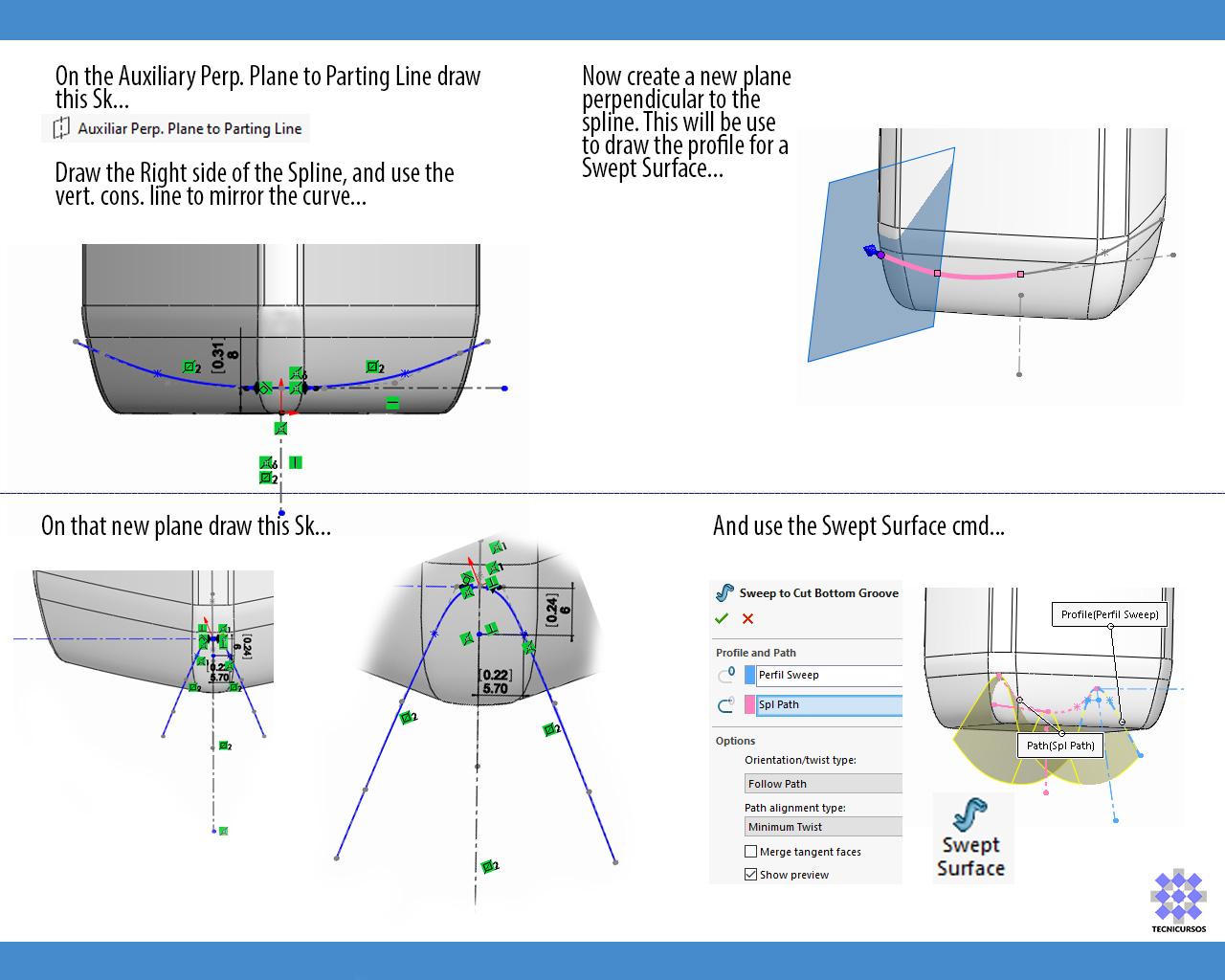

  7. Step 7: Dealing with the Bottom Groove...



  8. Step 8: Cutting the Bottom Groove...

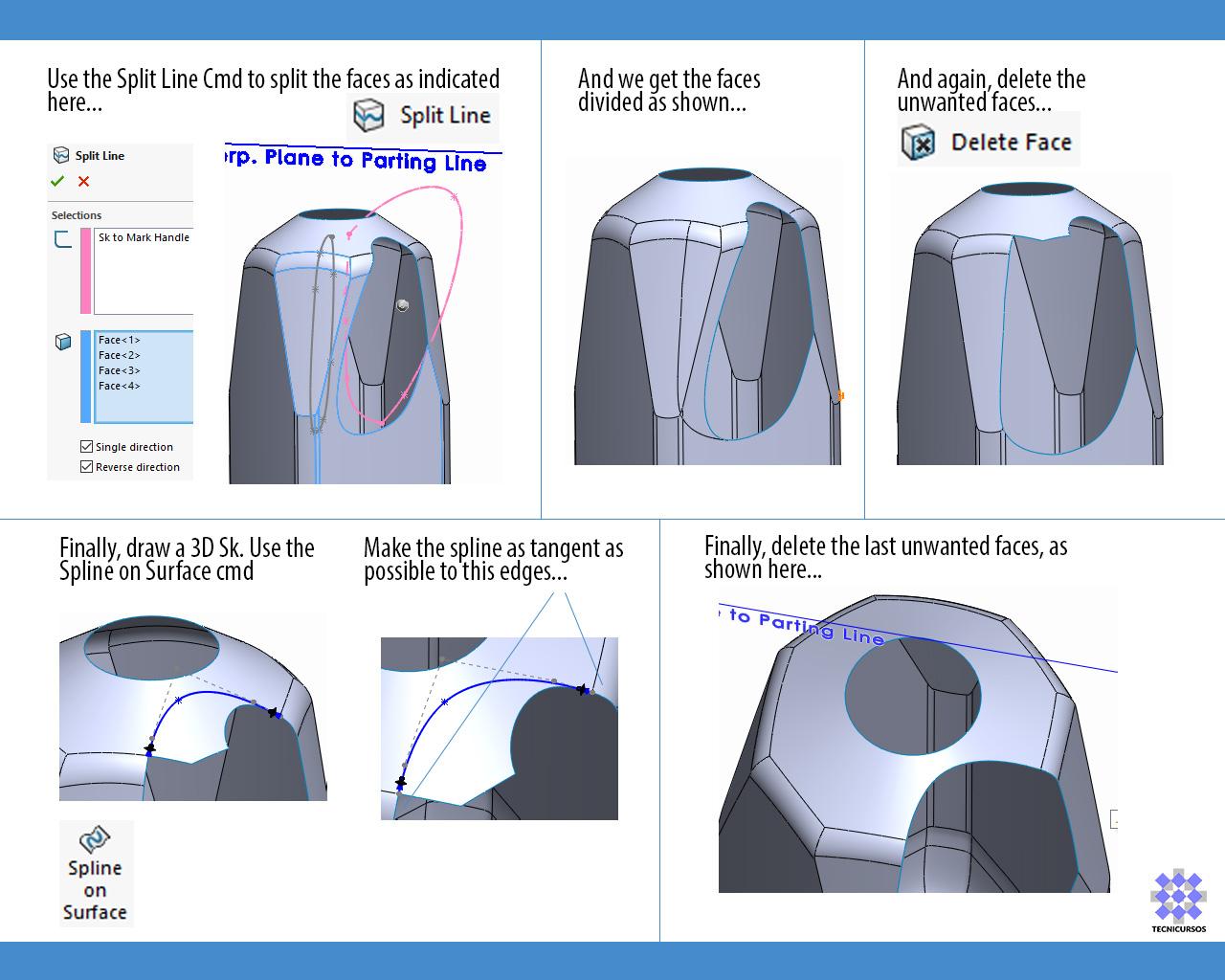

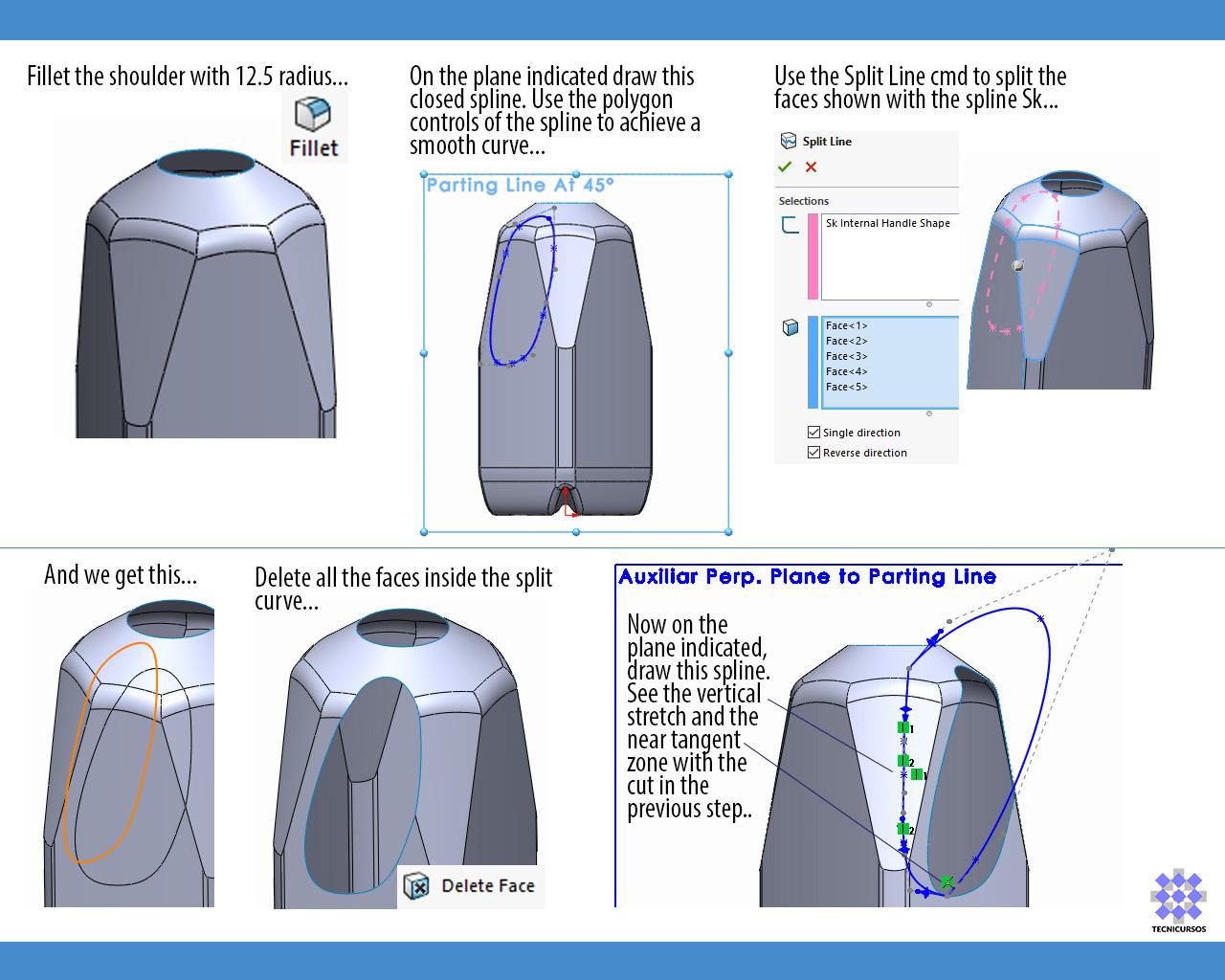

  9. Step 9: Cutting of Shoulder...



  10. Step 10: Surfaces to Further Shoulder Cuts...



  11. Step 11: More Cutting on Shoulder...

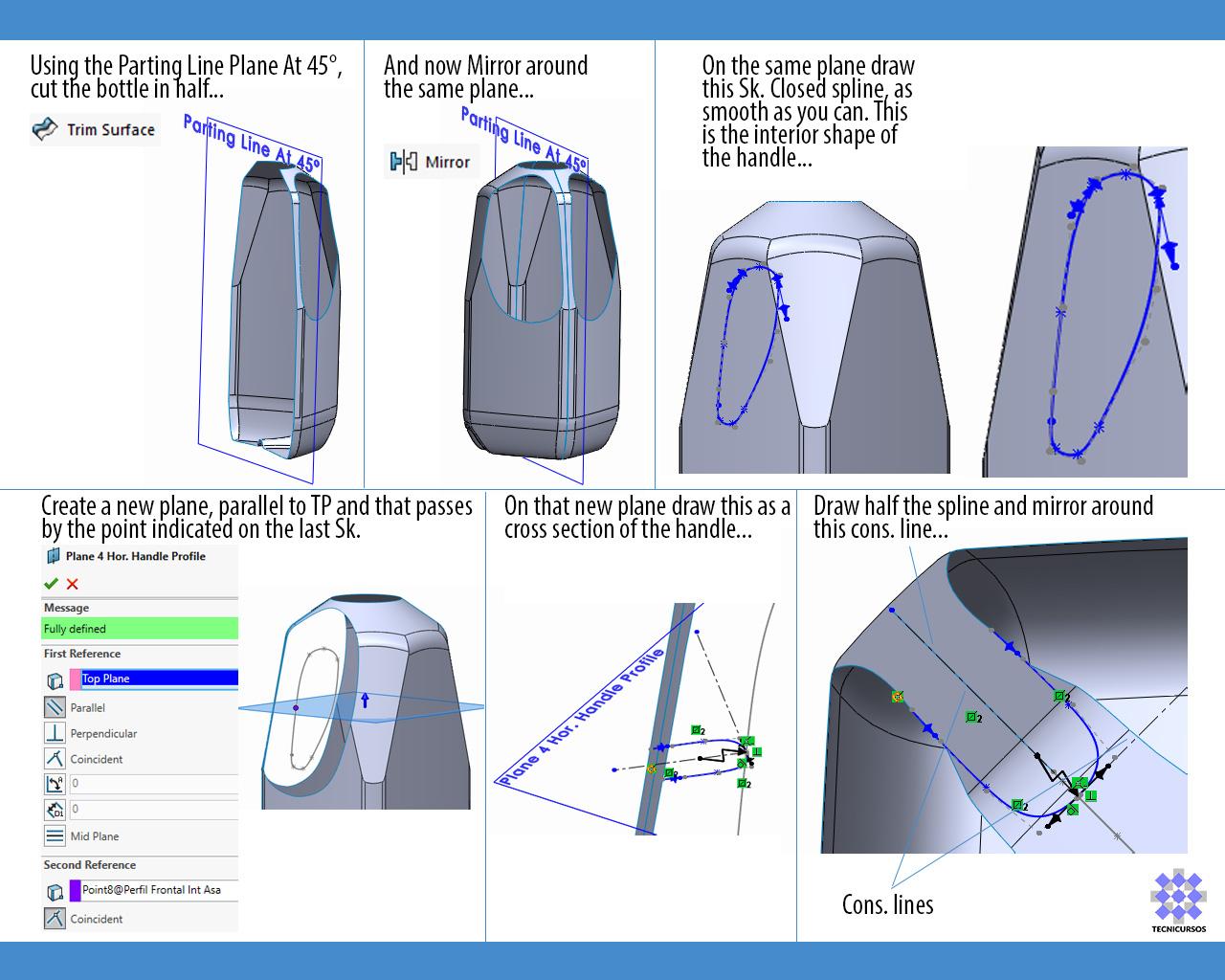

  12. Step 12: Handle Preparation...



  13. Step 13: More Handle Zone cutting...



  14. Step 14: Handle Profiles Prep...

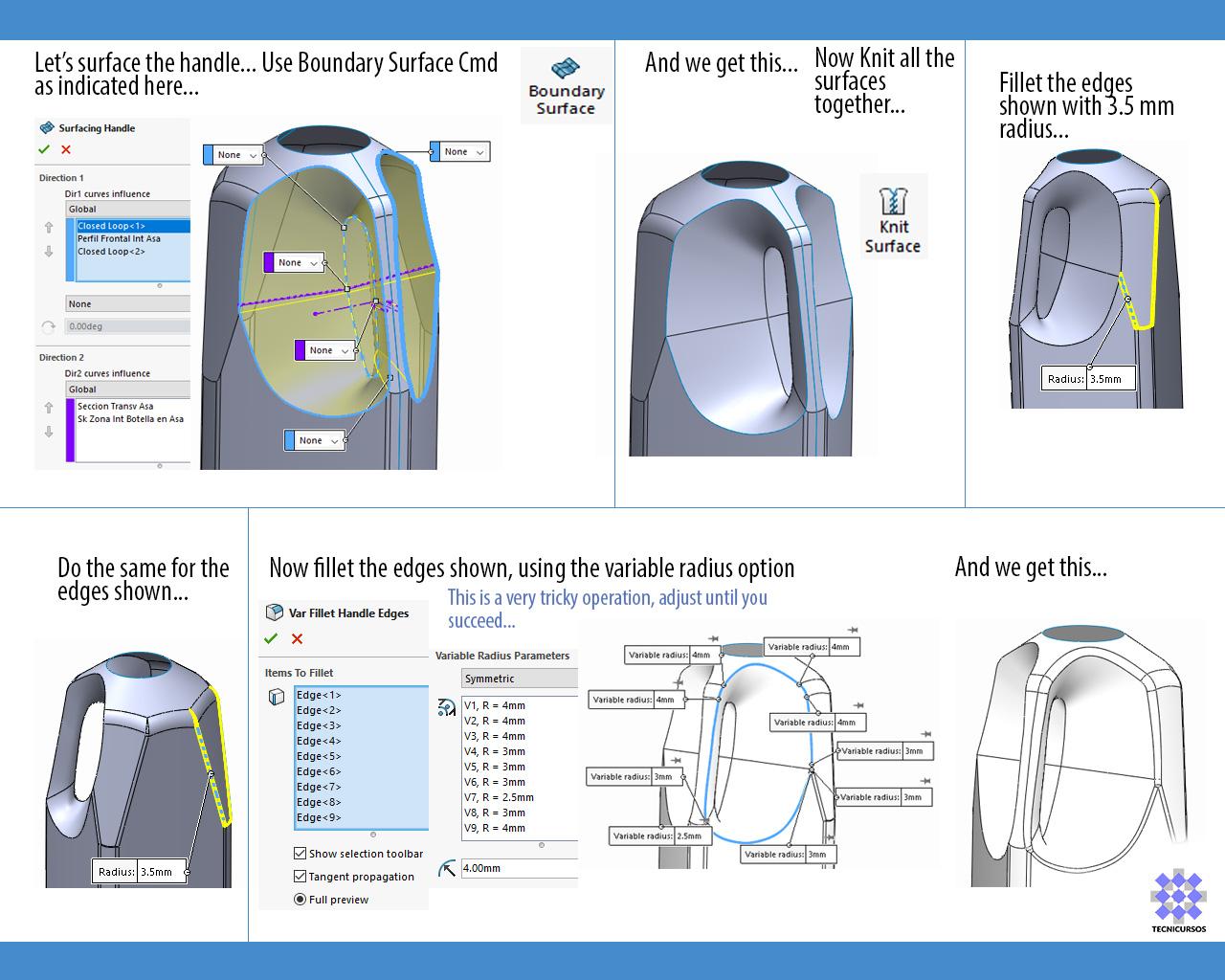

  15. Step 15: Surfacing Handle & Fillets...

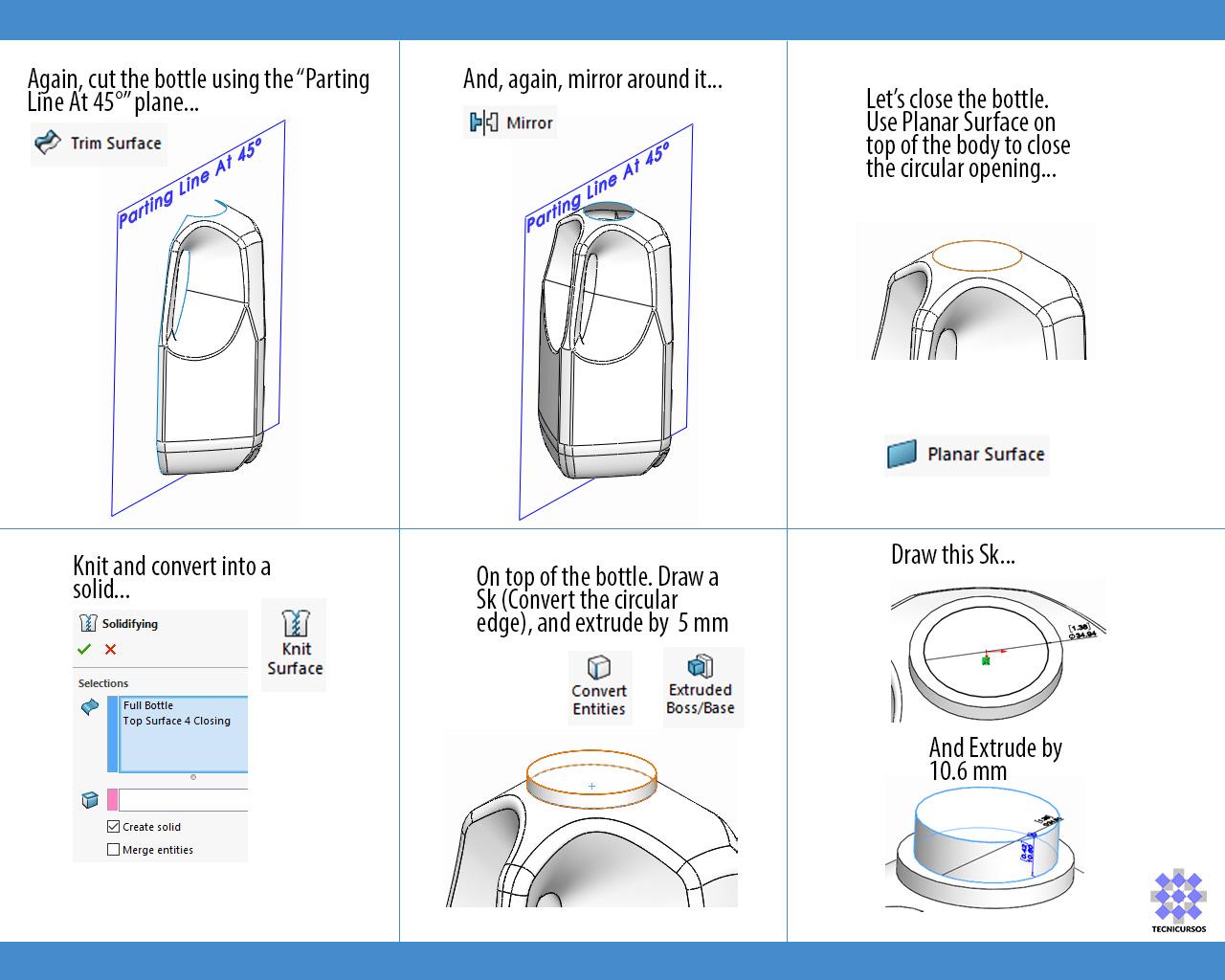

  16. Step 16: Mirroring & Closing Bottle...

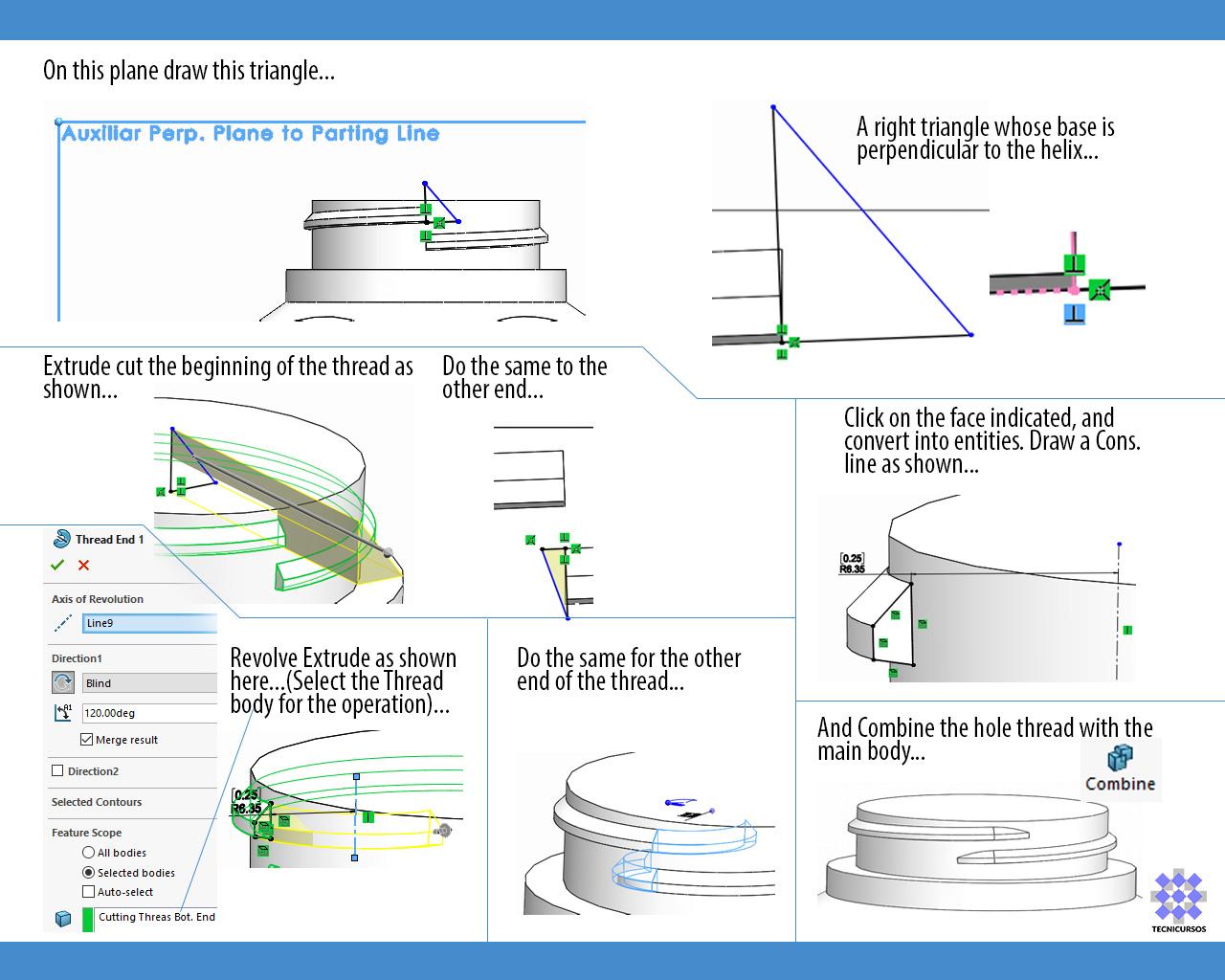

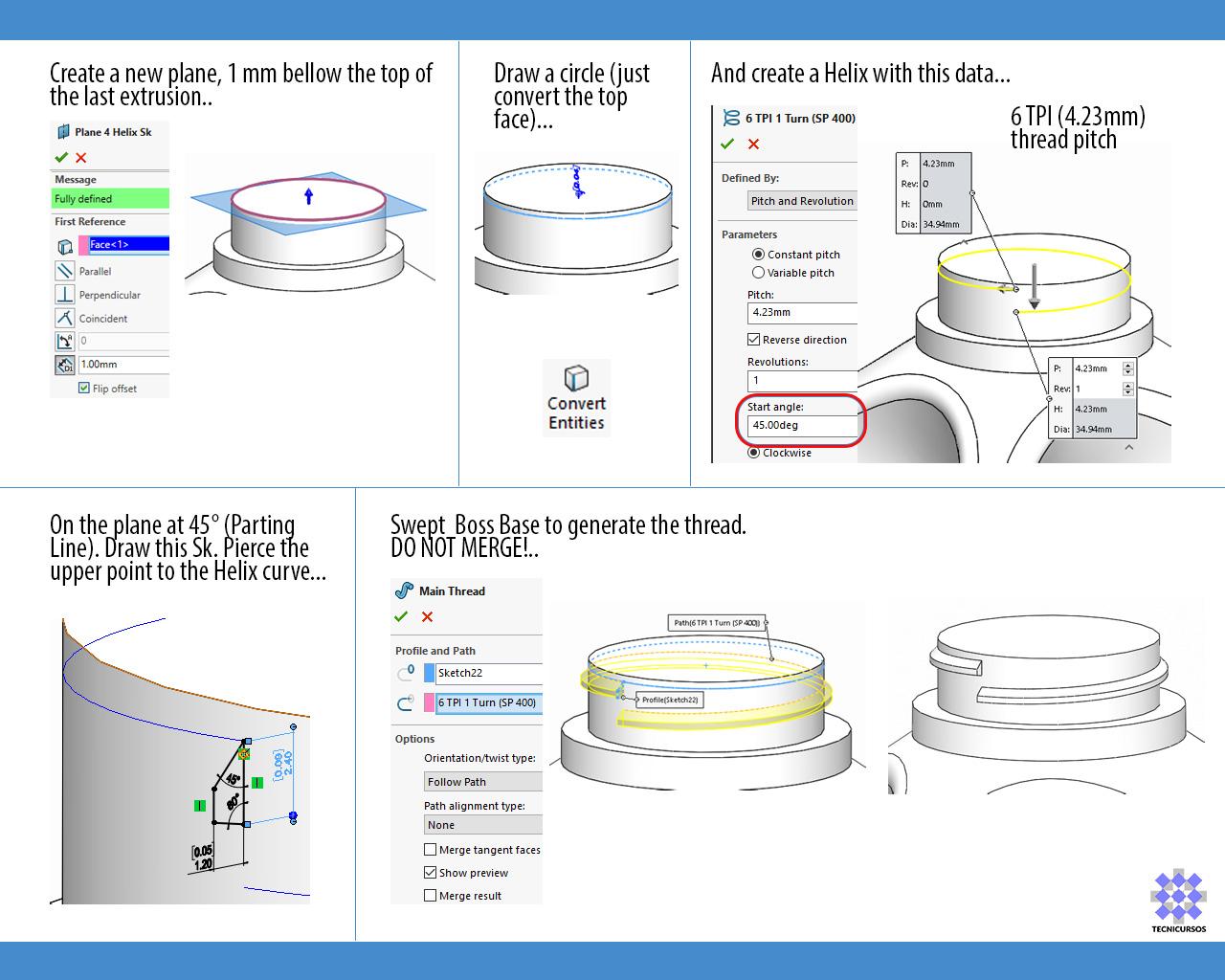

  17. Step 17: Dealing with the Threads...



  18. Step 18: Finishing Thread Job...



  19. Step 19: Shelling & Finishing!!...



  20. Step 20: Some Renderings...
