Drawing a sample piece

Tutorial by 22255d73
Small

A sample piece drawing is as follows.

  1. Step 1:

    Click on the profile icon and create a piston shape like a free hand
    Draw profile halfway

  2. Step 2:

    Click on the Limit icon and set the required size limitations.

  3. Step 3:

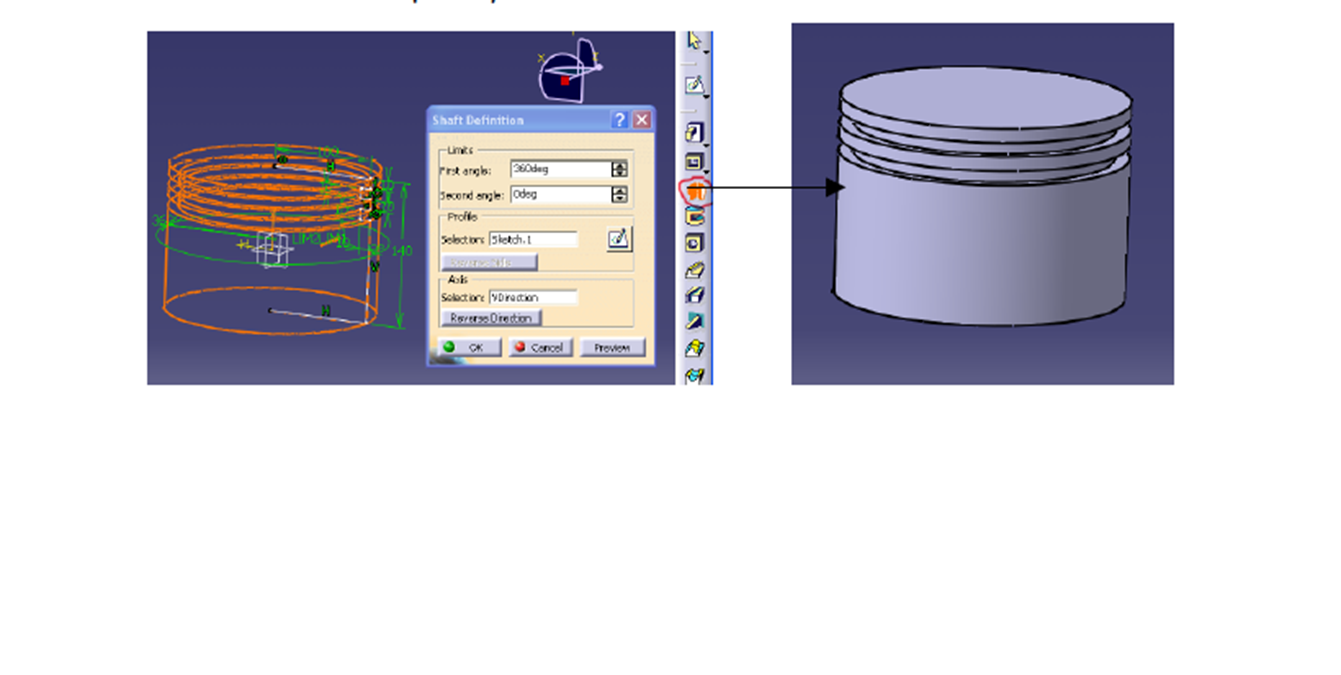

    Exit Sketch and click the Shaft icon to select the axis of reference that axis
    Turn around to make the piece.

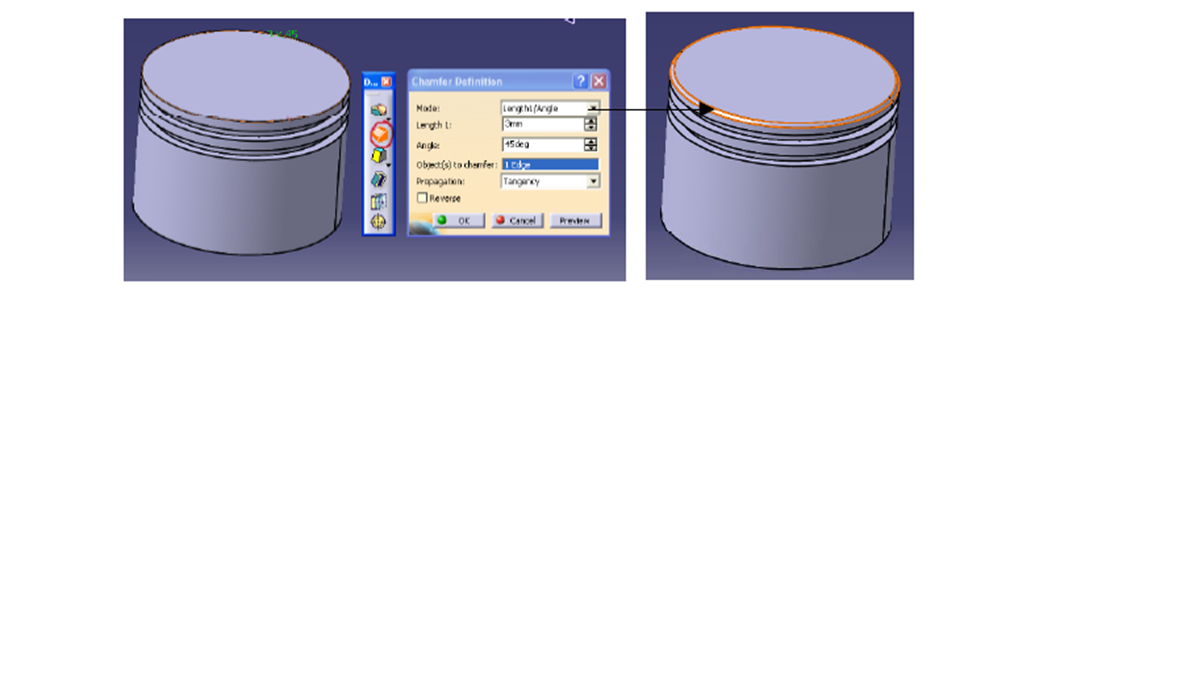

  4. Step 4:

    Click on the Chamfer icon to chamfer the pistol and select the edge,
    Create it.

  5. Step 5:

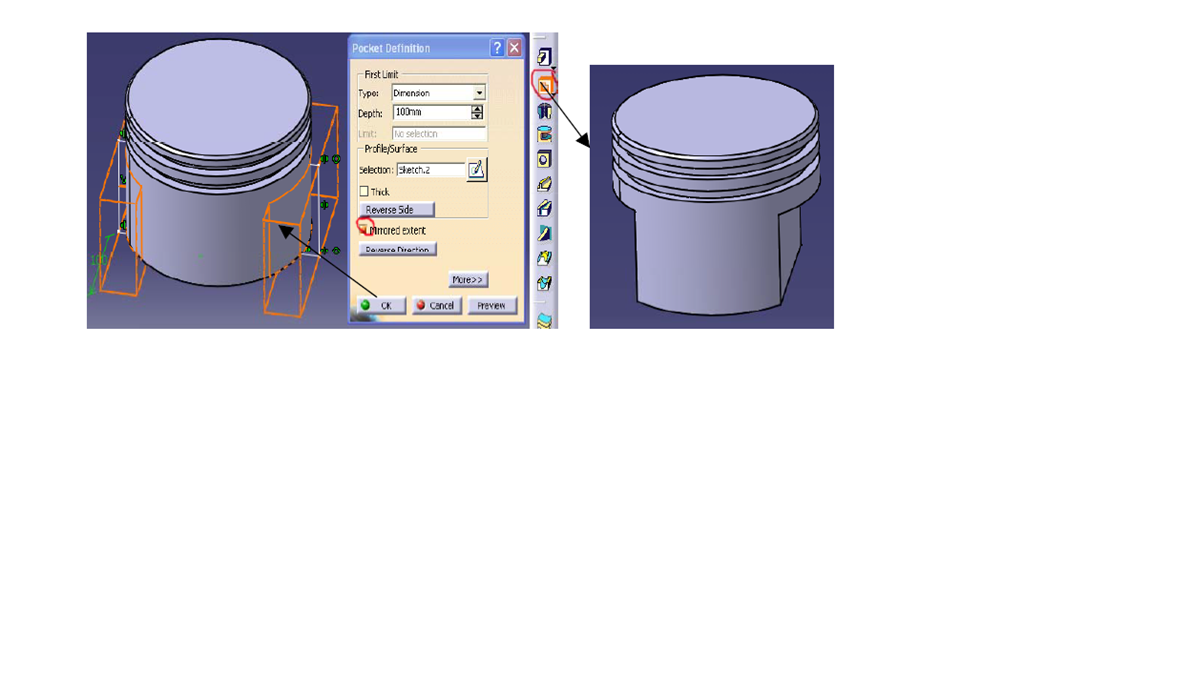

    Draw a milling edge to mill the edge of the shaft and use the symmetry command
    Carry this surface to the other side.

  6. Step 6:

    Click the icon to mill the edges.

  7. Step 7:

    Draw a circle to project from the milling surface of the piston.

  8. Step 8:

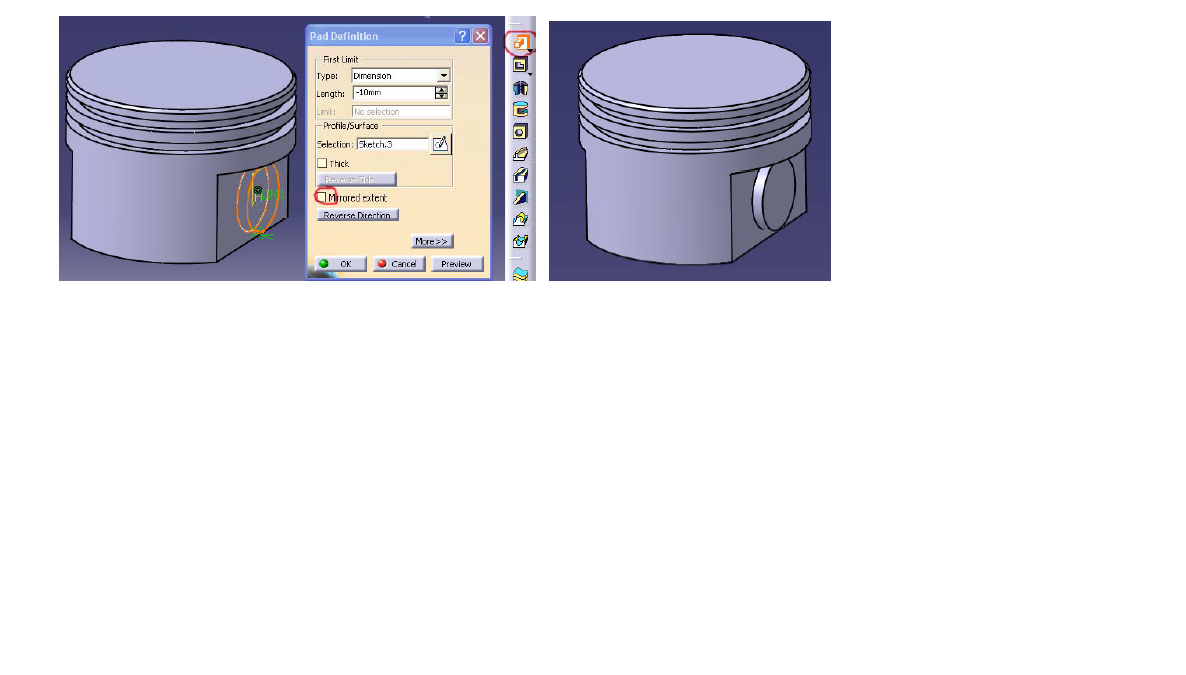

    Click the pad icon or make a protrusion

  9. Step 9:

    Create this pad on the other surface using the symmetry icon.

  10. Step 10:

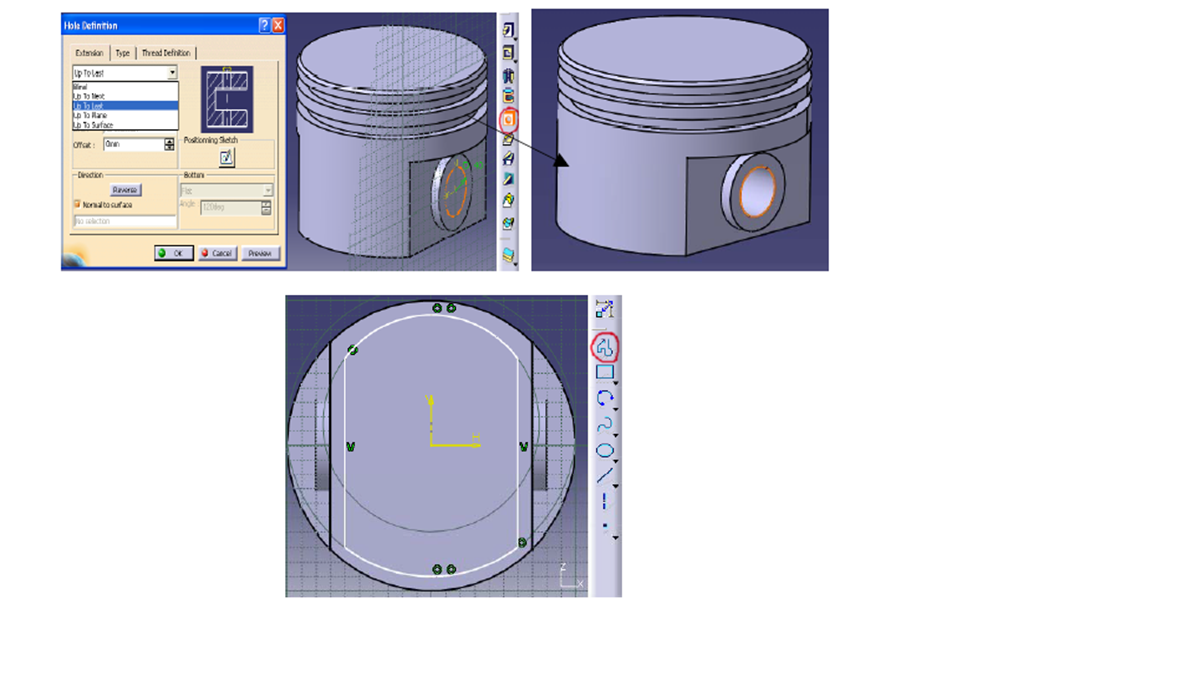

    Make a hole by clicking the hole icon
    Using the Profile icon, create the geometry on the bottom surface of the piston.

  11. Step 11:

    Create the geometry on the bottom surface of the piston using the Profile icon

  12. Step 12:

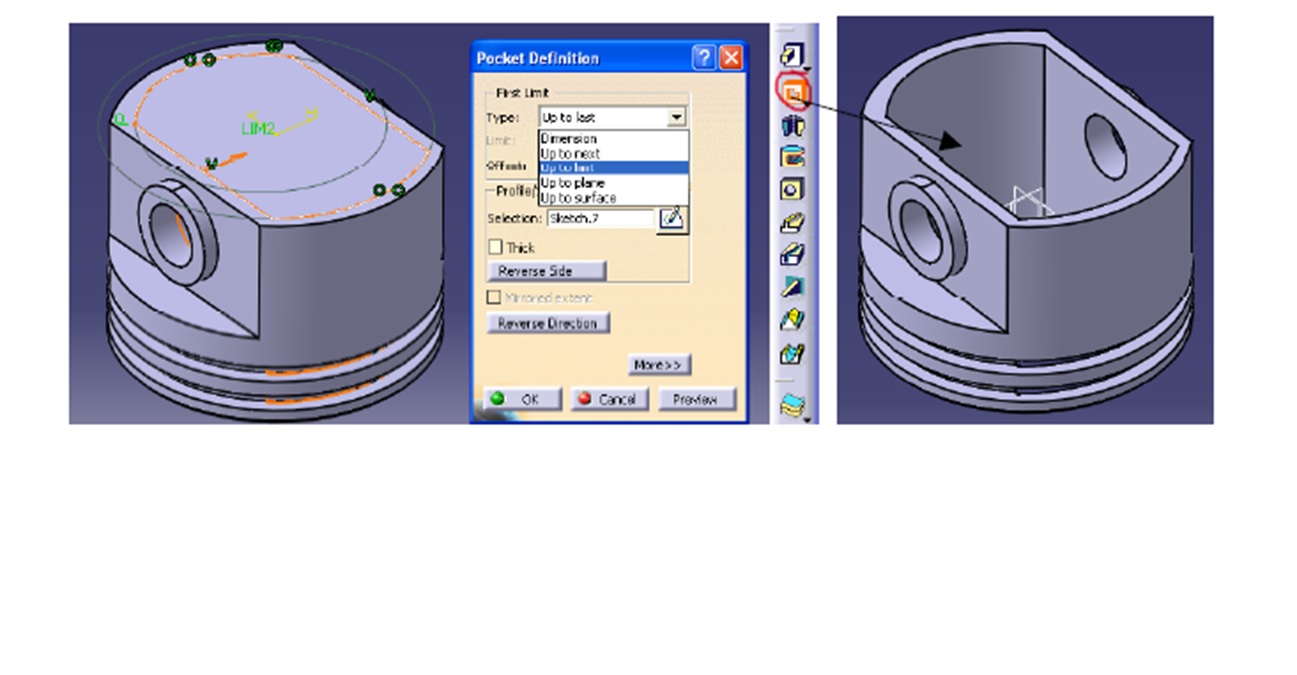

    Create a geometric hole by clicking on the Pocket icon.

  13. Step 13:

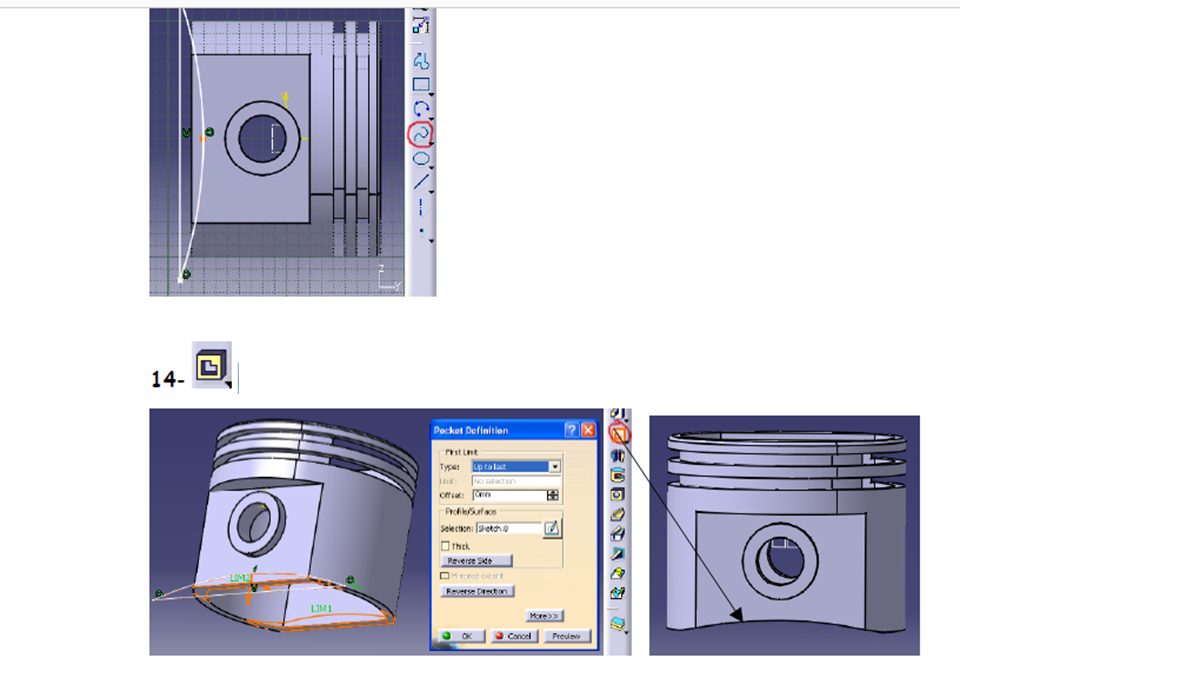

    Again using the spline command to curve to the piston side surface
    Create it.
    Milling along the geometry by clicking on the Pocket icon.

  14. Step 14:

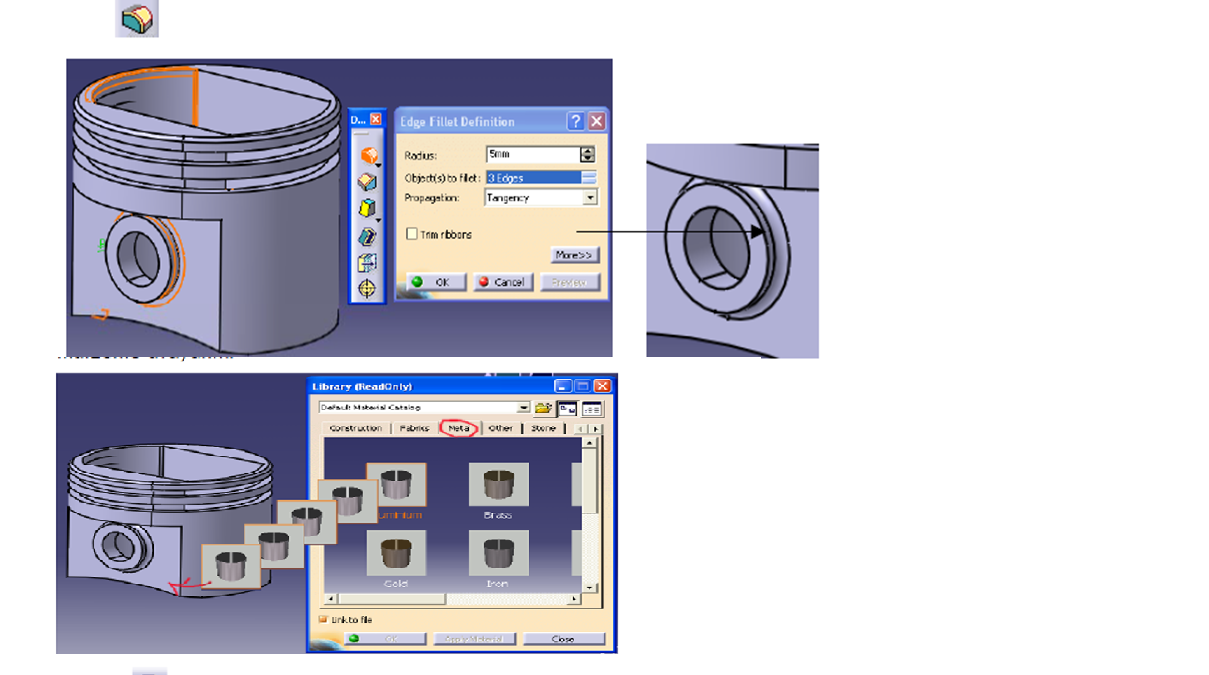

    Fillet icon to create the required surface radius
    To make various static analyzes of this part we have created
    Let's assign stuff.

  15. Step 15:

    By pressing the view icon, the color of this material on the screen
    See properties.
