How to do a Chain

By Jakob Andersson on May 5th, 2017 No comments

In this tutorials I will create a chain in Fusion 360. For the tutorials for swedish:
http://jakobia.se/2016/09/21/chopper-tutorial-chain-part-1/

  1. Step 1

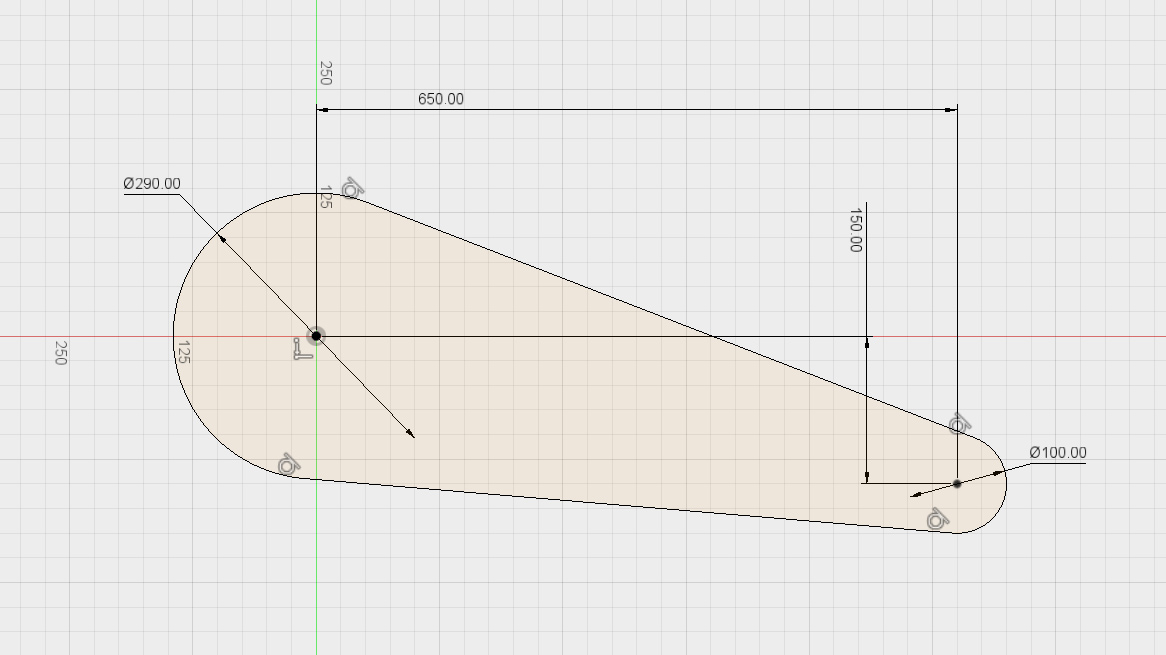

    Create the first sketch for the path for the pattern.

    Medium

  2. Step 2

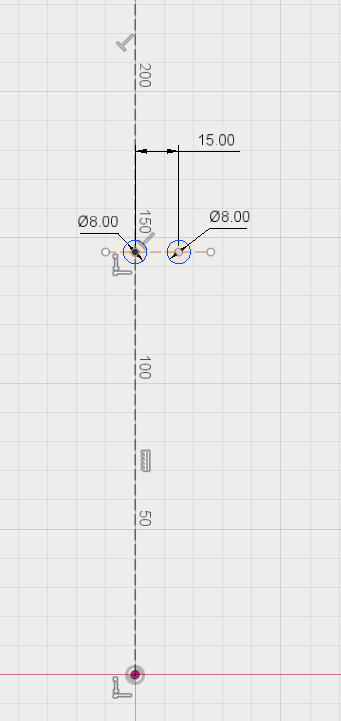

    Sketch for the chain part

    Medium

  3. Step 3

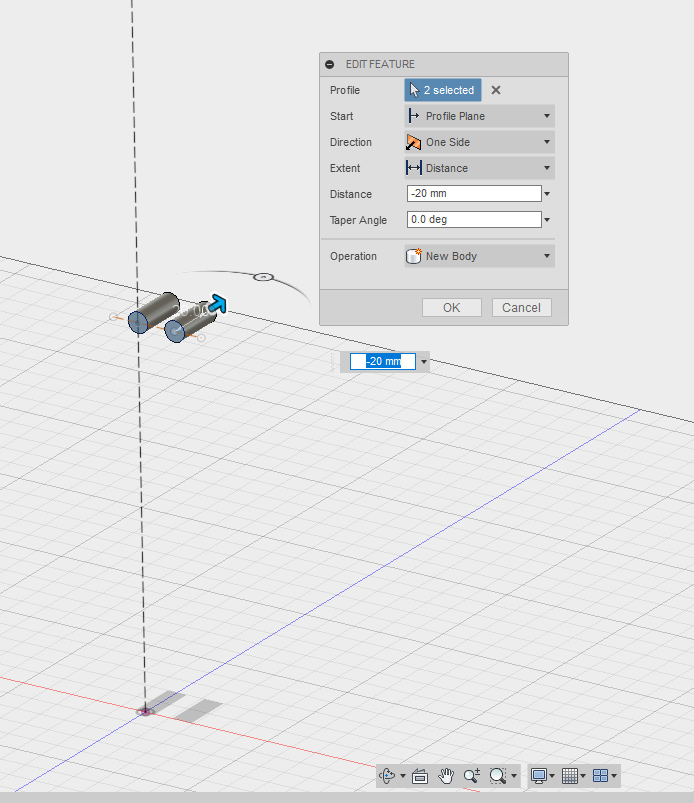

    Extrude the sketch from step 2.

    Medium

  4. Step 4

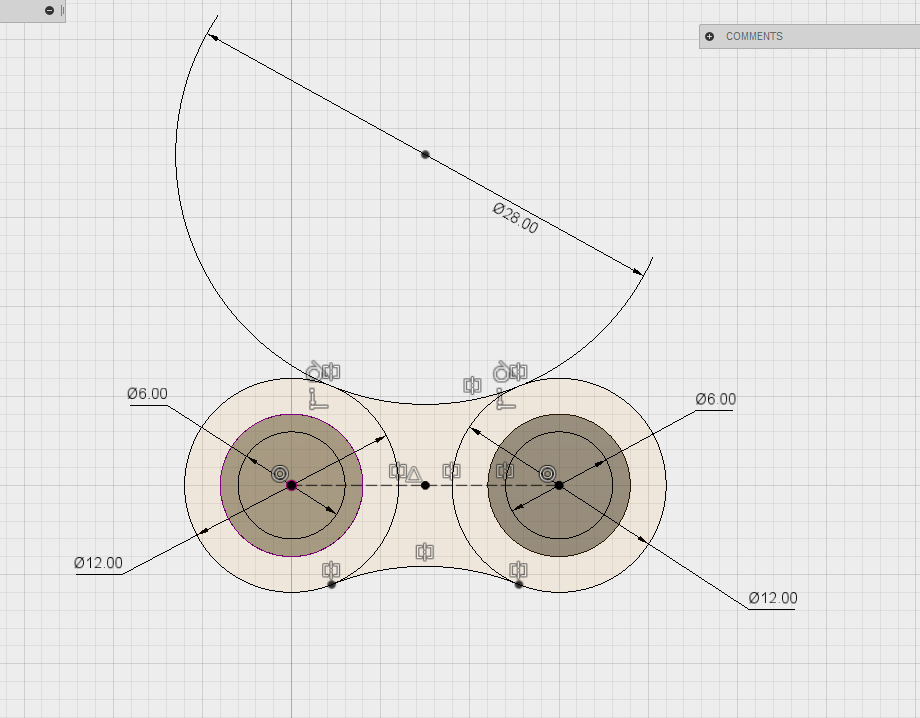

    Create the sketch for one side of the chain part.

    Medium

  5. Step 5

    Extrude the sketch from step 4.

    Medium
