How to Make Tri Finged Spinner

By steven ind on June 3rd, 2017 5 comments

In this tutorial i'll show you how to make toys as simple as you can see.

  1. Step 1:

    All of dimension using mm. 4x Hole diameter is 19mm base on bearing skf 607 outside diameter (19mm)

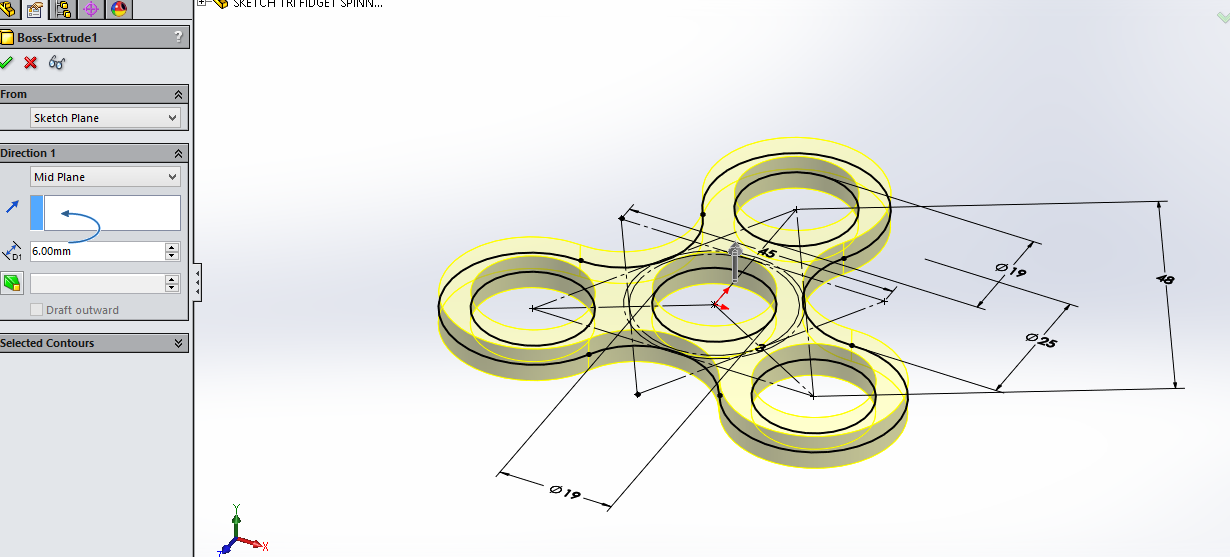

  2. Step 2:

    Extrude 6 mm,

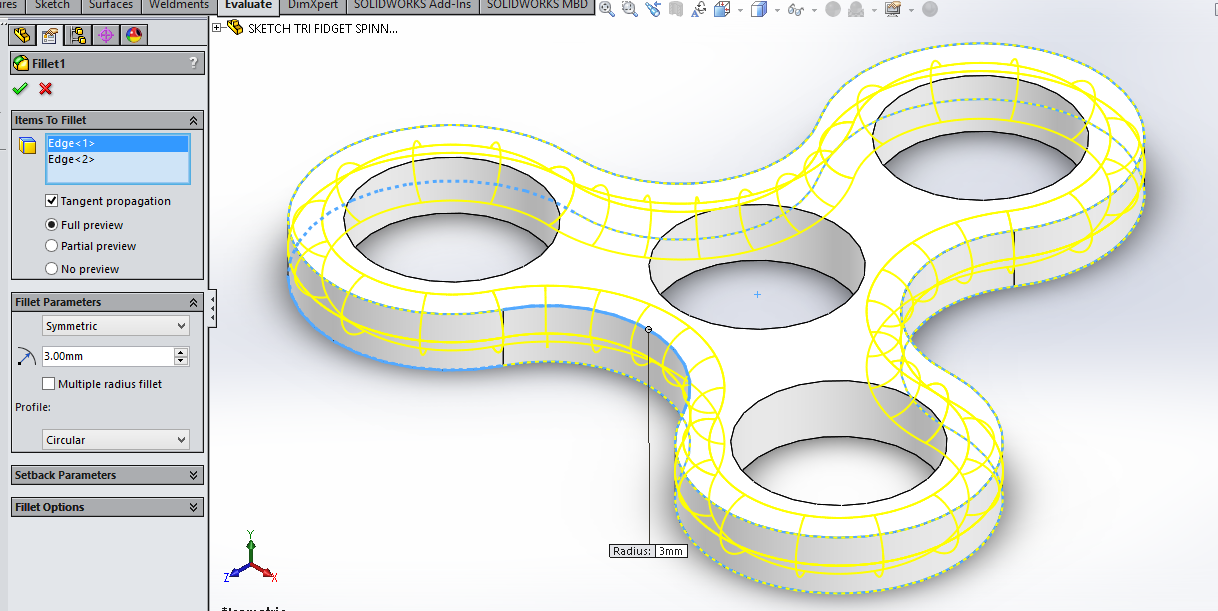

  3. Step 3:

    Fillet 3mm

  4. Step 4:

    After finished made a model, pick SKF bearing from Solidworks Toolbox.

    Done.
