Pipe drawing with Catia

22255d73

4 Nov, 2016 10:55 PM

A pipe drawing with catia is performed as follows.

1. Step 1:

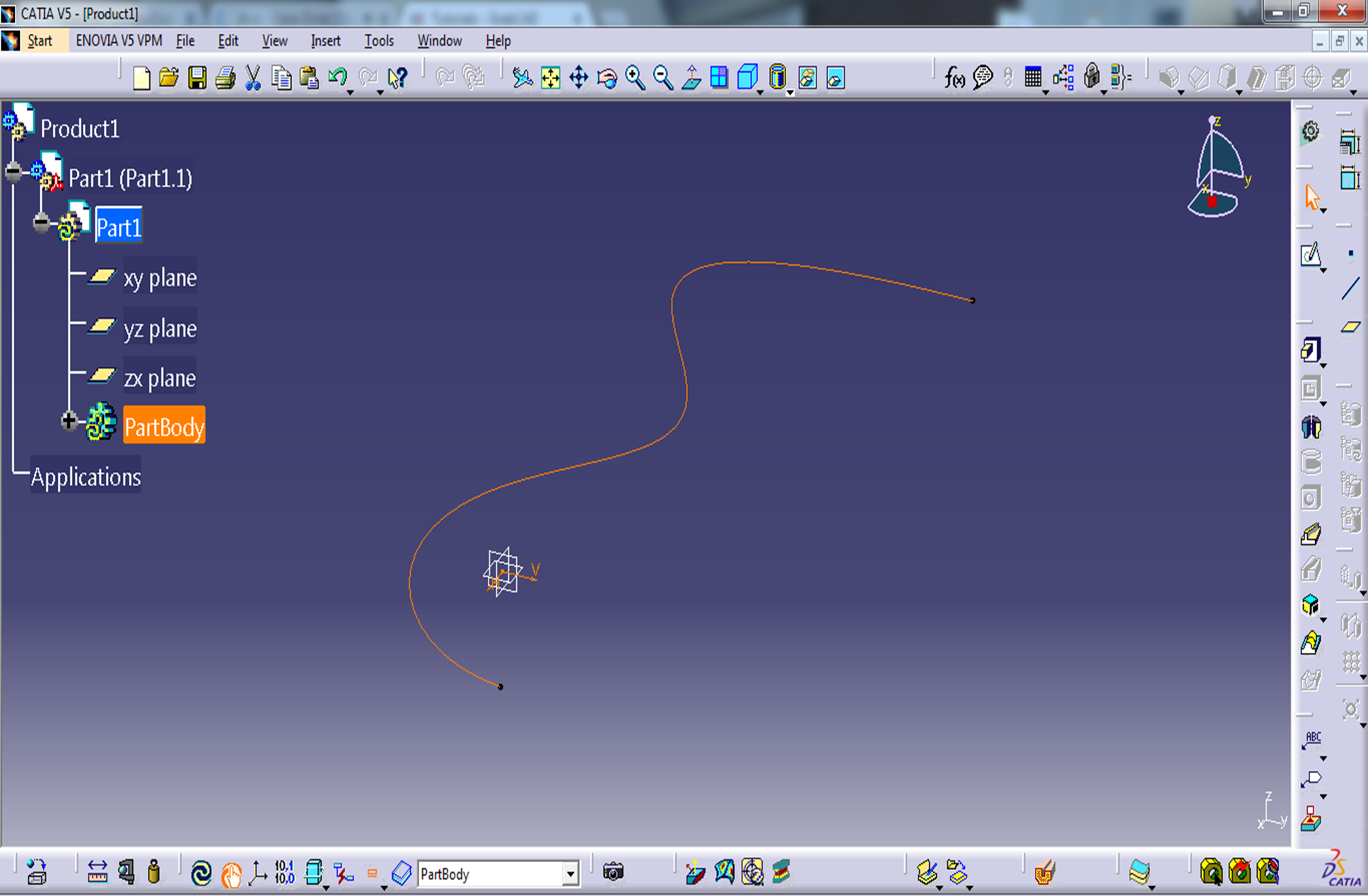

   First a wavy drawing is made with the spline.




2. Step 2:

   Then the exit is passed to the workbench environment.




3. Step 3:

   The spline is assigned to the spline.




4. Step 4:

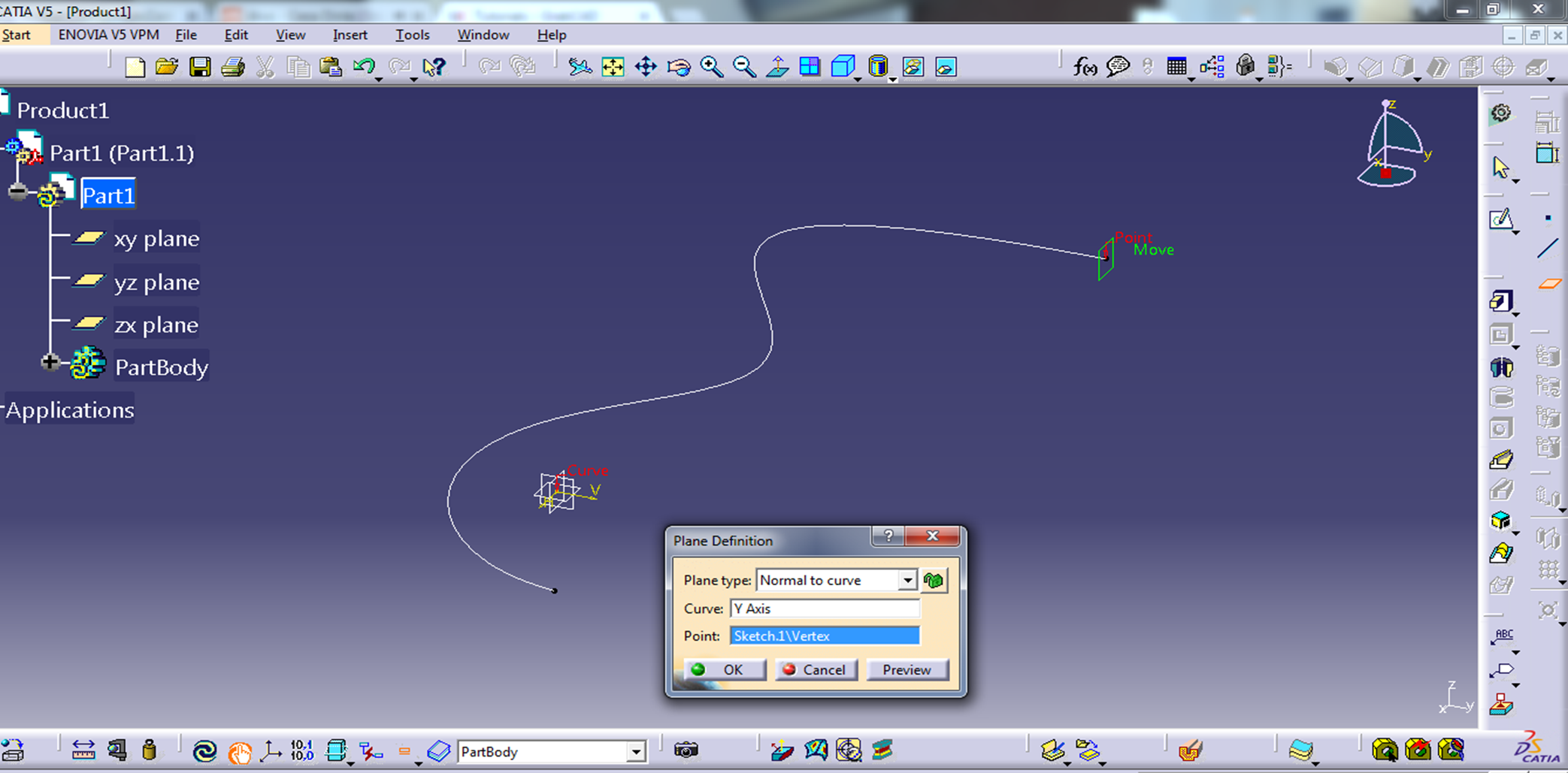

   With this plane, sketch environment is entered,
   Then a circle is drawn.




5. Step 5:

   Here, solid modeling is performed with the rib command.




6. Step 6:

   The shell is hollowed out with the command.




7. Step 7:

   The material is finally assigned and the process is completed.
