Solidworks Tutorial #163 Bevel Spur Gear Assembly Simulation in Solidworks Easy Design

Small

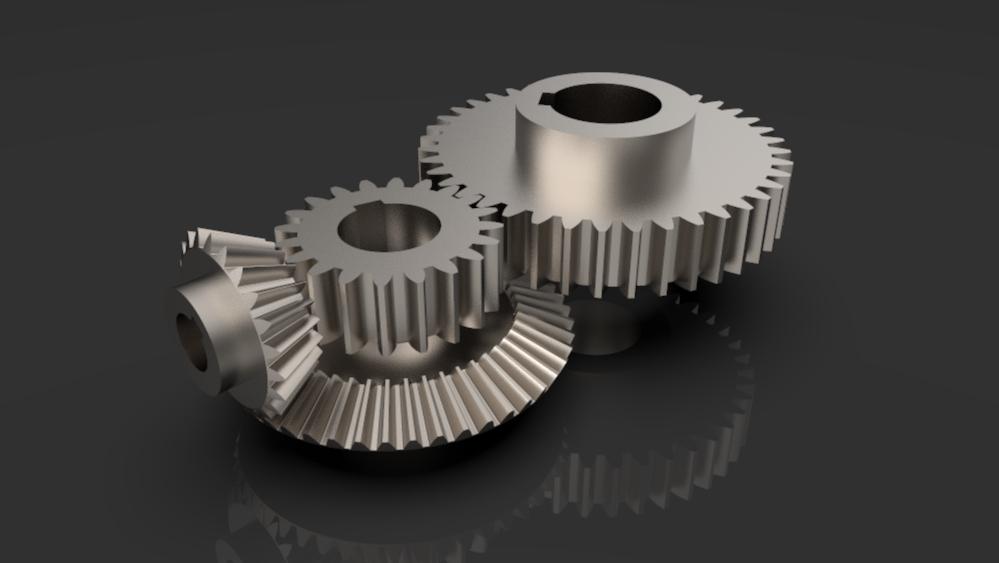

Bevel gears have a cone shaped appearance and are used to transmit force between two shafts which intersect at one point (intersecting shafts). A bevel gear has a cone as its pitch surface and its teeth are cut along the cone.
Spur gears or straight-cut gears are the simplest type of gear. They consist of a cylinder or disk with teeth projecting radially. Though the teeth are not straight-sided, the edge of each tooth is straight and aligned parallel to the axis of rotation.

We Provide SolidWorks, Auto-CAD,(Mechanical Drawing 3D Design,Catia V5......etc Software Free Tutorials. You can subscribe our channel to get more information.

  1. Step 1: Solidworks Tutorial #163 Bevel Spur Gear Assembly Simulation in Solidworks Easy Design

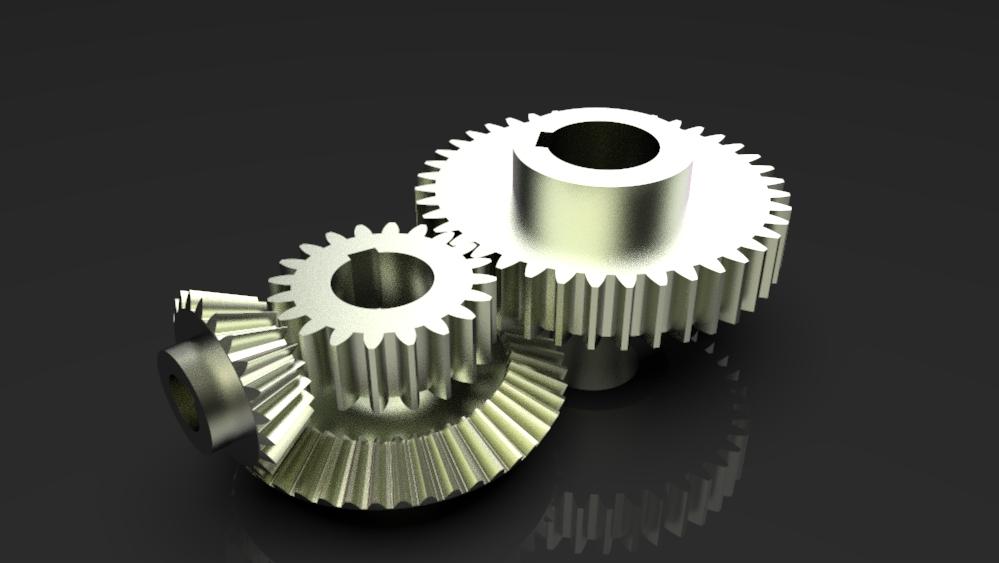

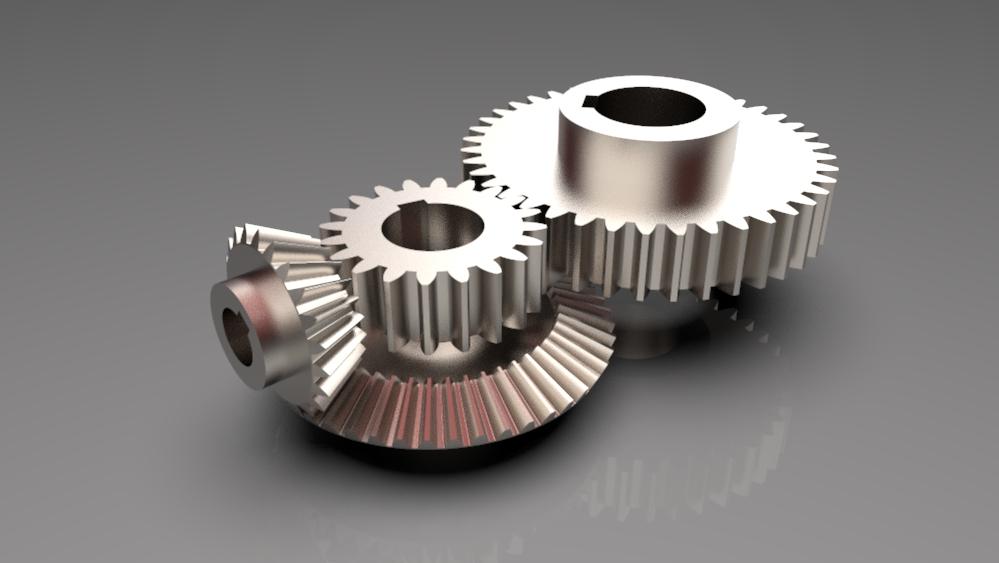

  2. Step 2: Rendering Images............
