Special Chrome Fitting

Edgar Gidoni

9 Jul, 2021 04:01 PM

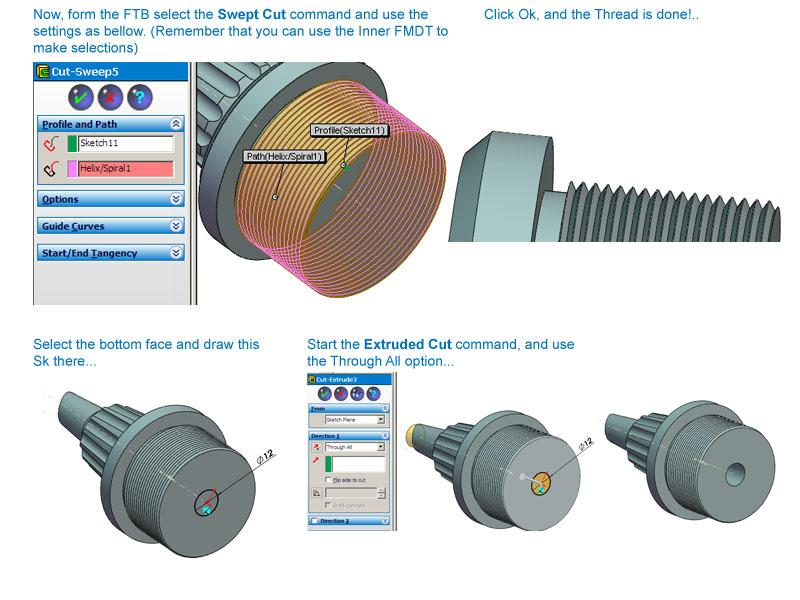

Exercise from our SolidWorks 001 Mini Course.
You can download de Course here:
SW MiniCourse

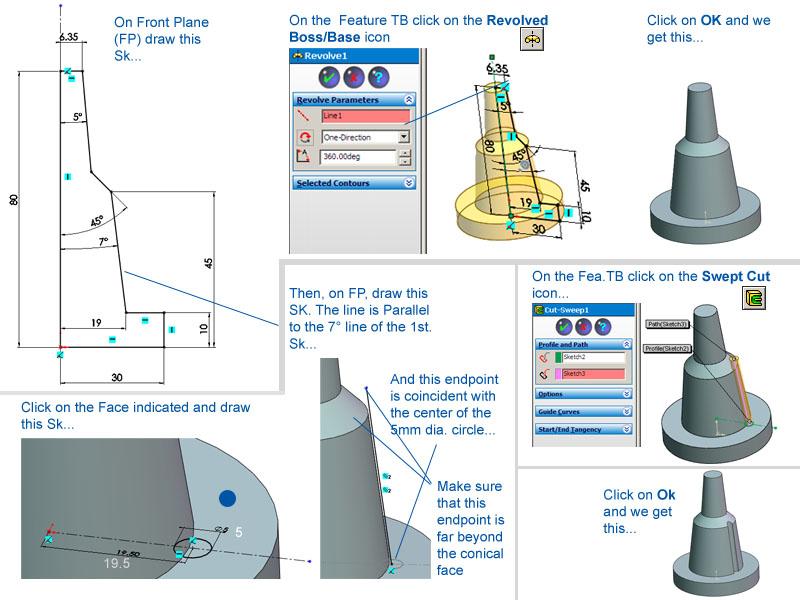

1. Step 1: Intial Steps...









2. Step 2: Grooves in Angle...









3. Step 3: Finishing Touches to the Head...









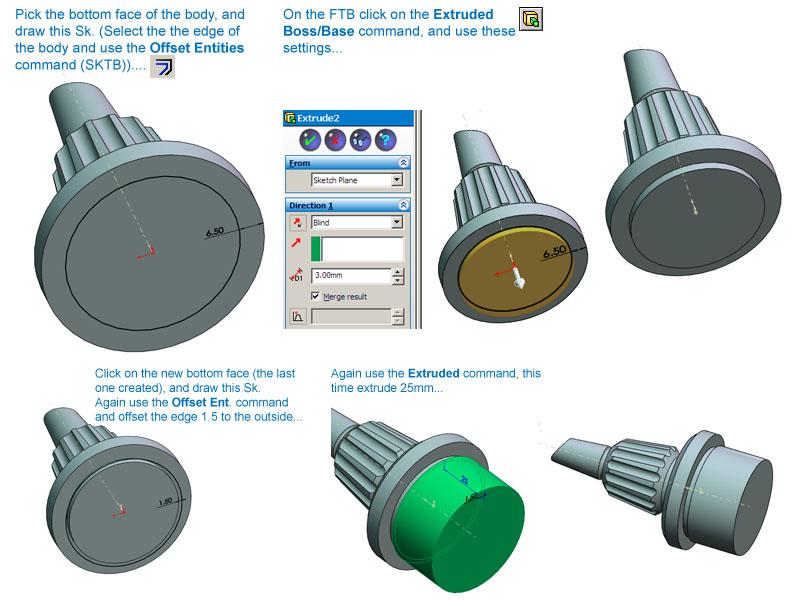

4. Step 4: Shaft Body...









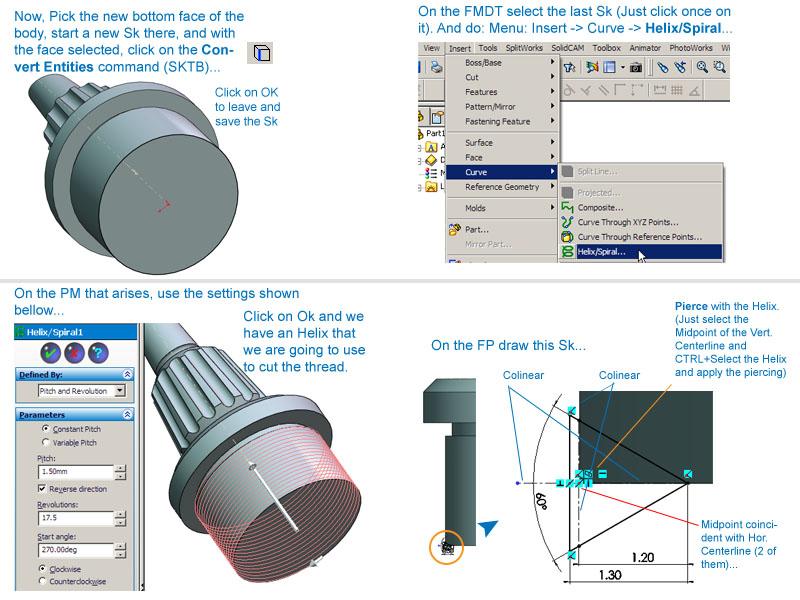

5. Step 5: Thread (1 of 2)...









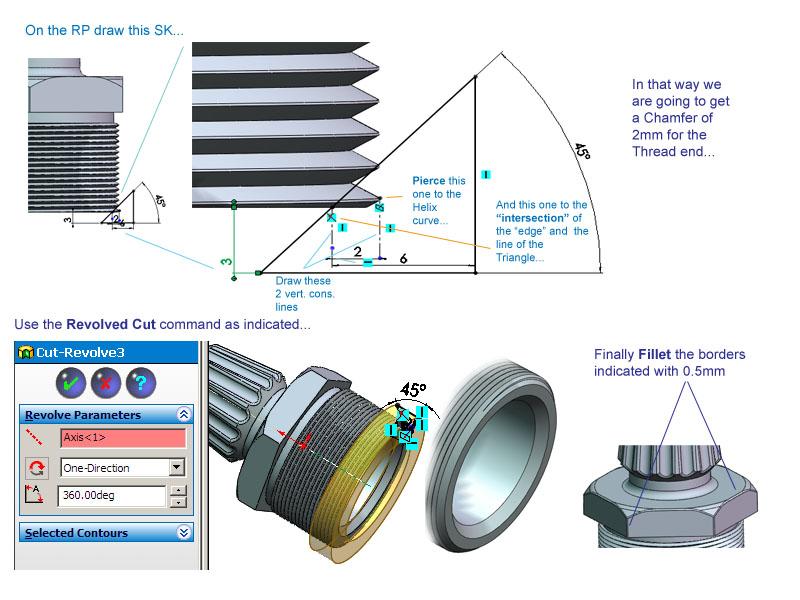

6. Step 6: Thread (2 of 2)...









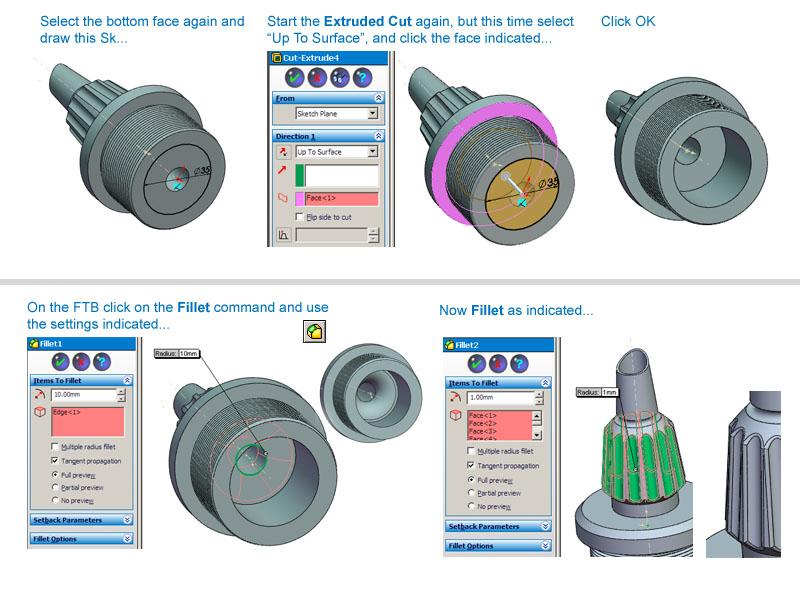

7. Step 7: Internal Cylinder & Some Fillets...









8. Step 8: Worging on details...









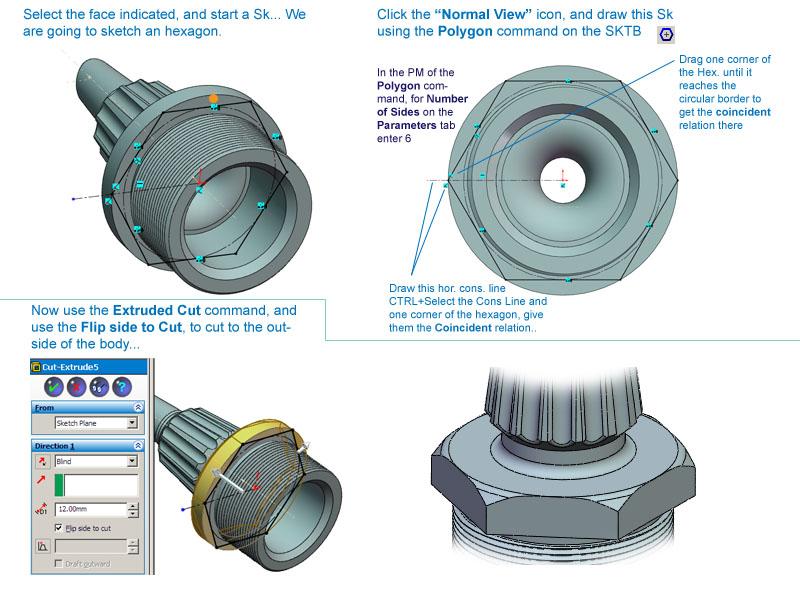

9. Step 9: Hexagon for Wrench...









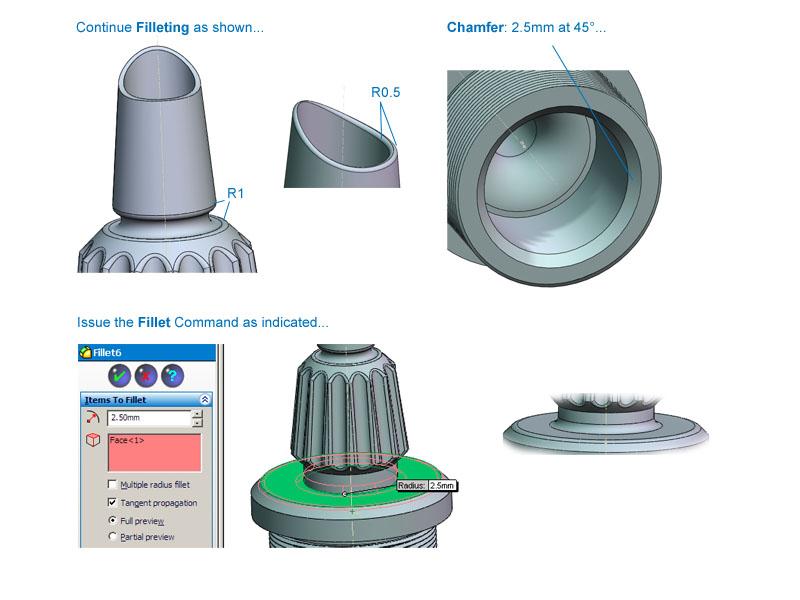

10. Step 10: Some Chamfering...









11. Step 11: Rendering..
