Tutorial How to Make Main Plate
This is a tutorial for making Main Plate in Swiss Army Knife.
Mechanical Modelling and Visualization
Fadhlan Kiska Anargya Dindra
-

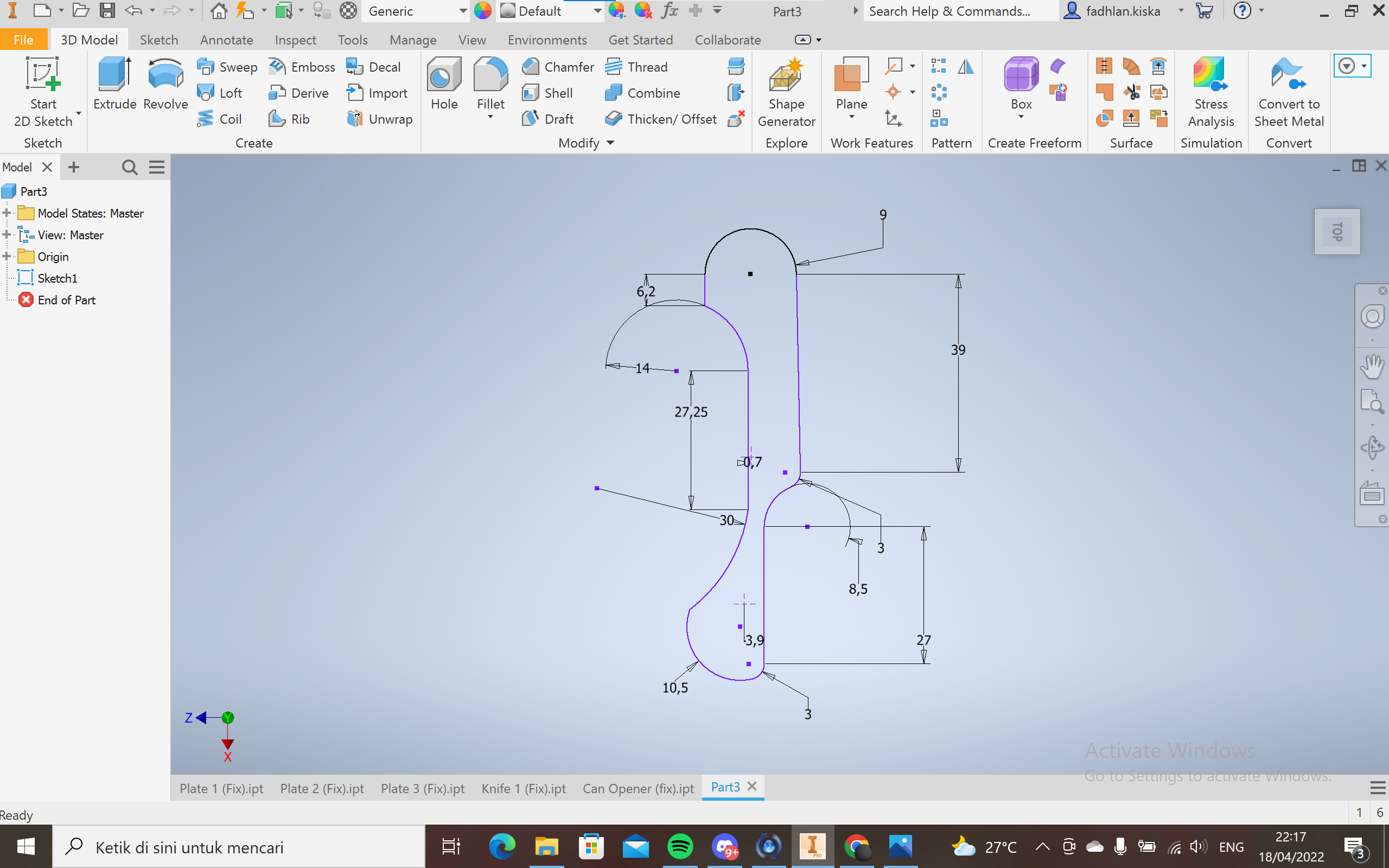

Step 1: Sketch the Main Plate in 2D
Sketch the Main Plate in 2D exactly like the size above using line, arc center point, arc tangent, and arc three points.
-
Step 2: Extrude the 2D Sketch
After that, we can extrude 0.625 mm and the step for Main Plate is done.
