TWO LEVER DRIVE SHAFT

Hitesh Trivedi

12 May, 2020 05:56 PM

CASTING PROJECT :TWO LEVER DRIVE SHAFT

USING PTC-CREO 4.0 WORKING PLATFORM FOR THIS PROJECT.

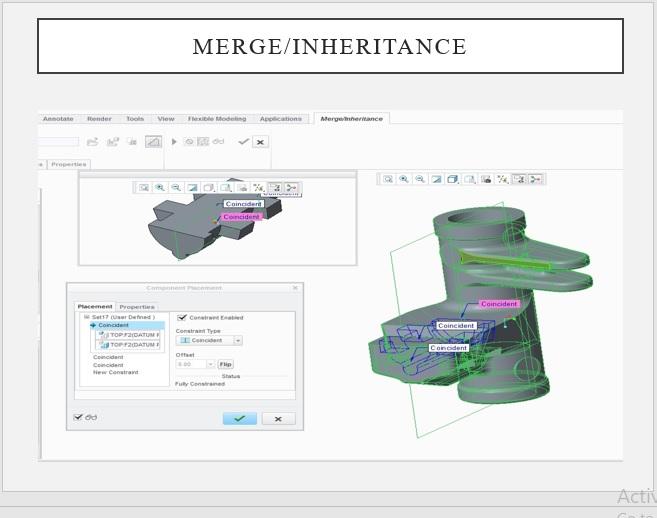

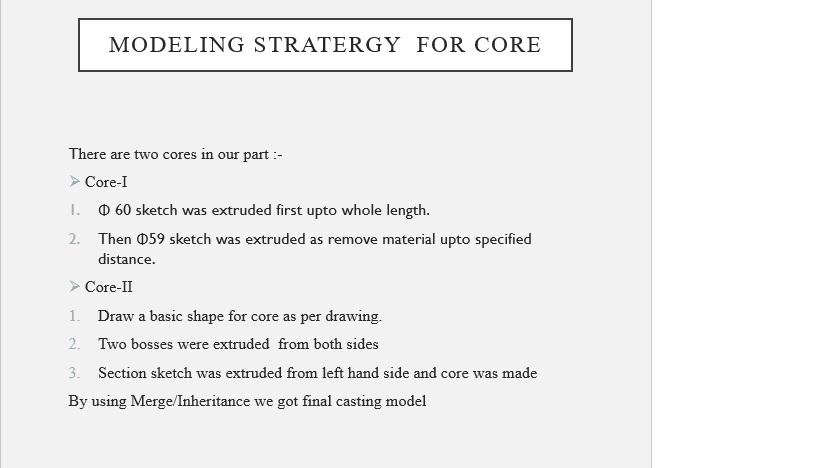

WE USE MERGE-INHERITANCE/REVOLVE FOR MODELLING PURPOSE.
HERE IS COMPLETE SOLUTION OF PROJECT.(FOR MODEL REFER MODELLING SECTION)

1. Step 1:

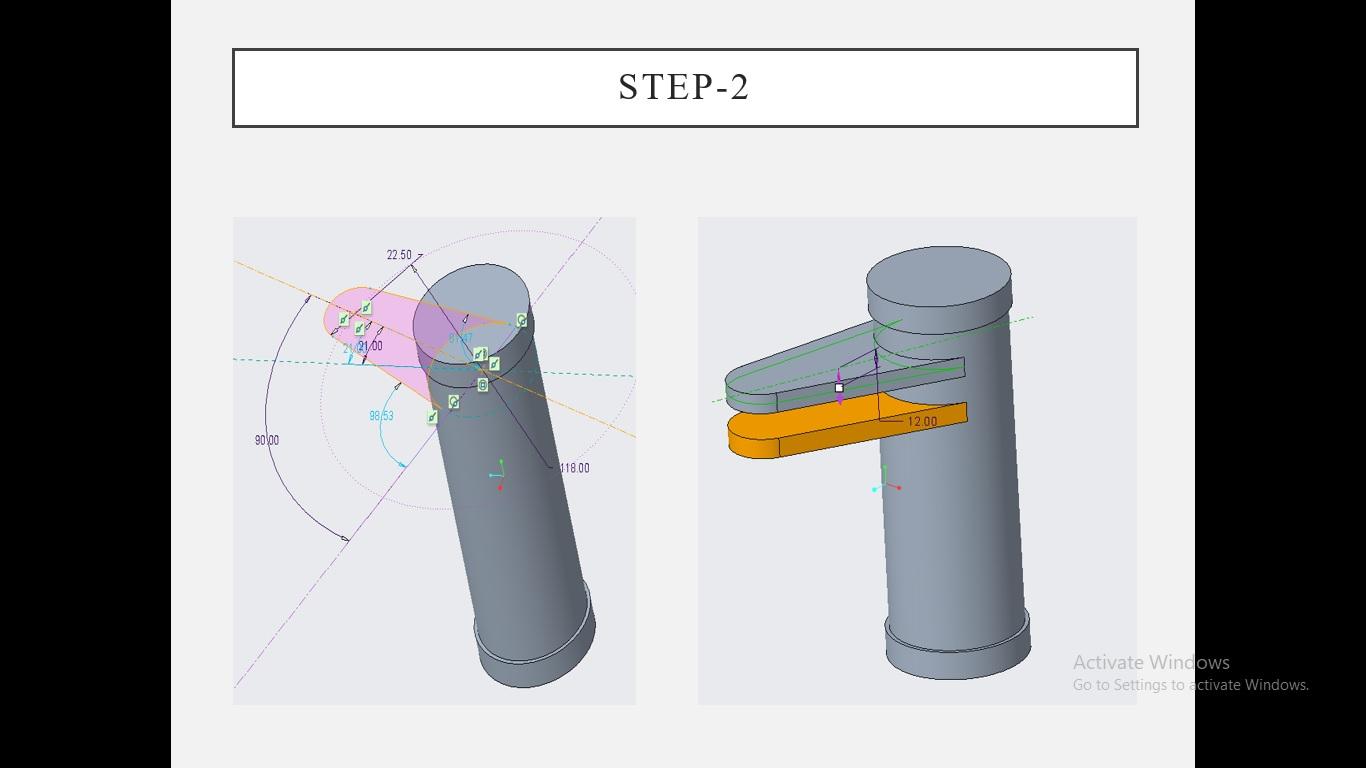

2. Step 2:









3. Step 3:

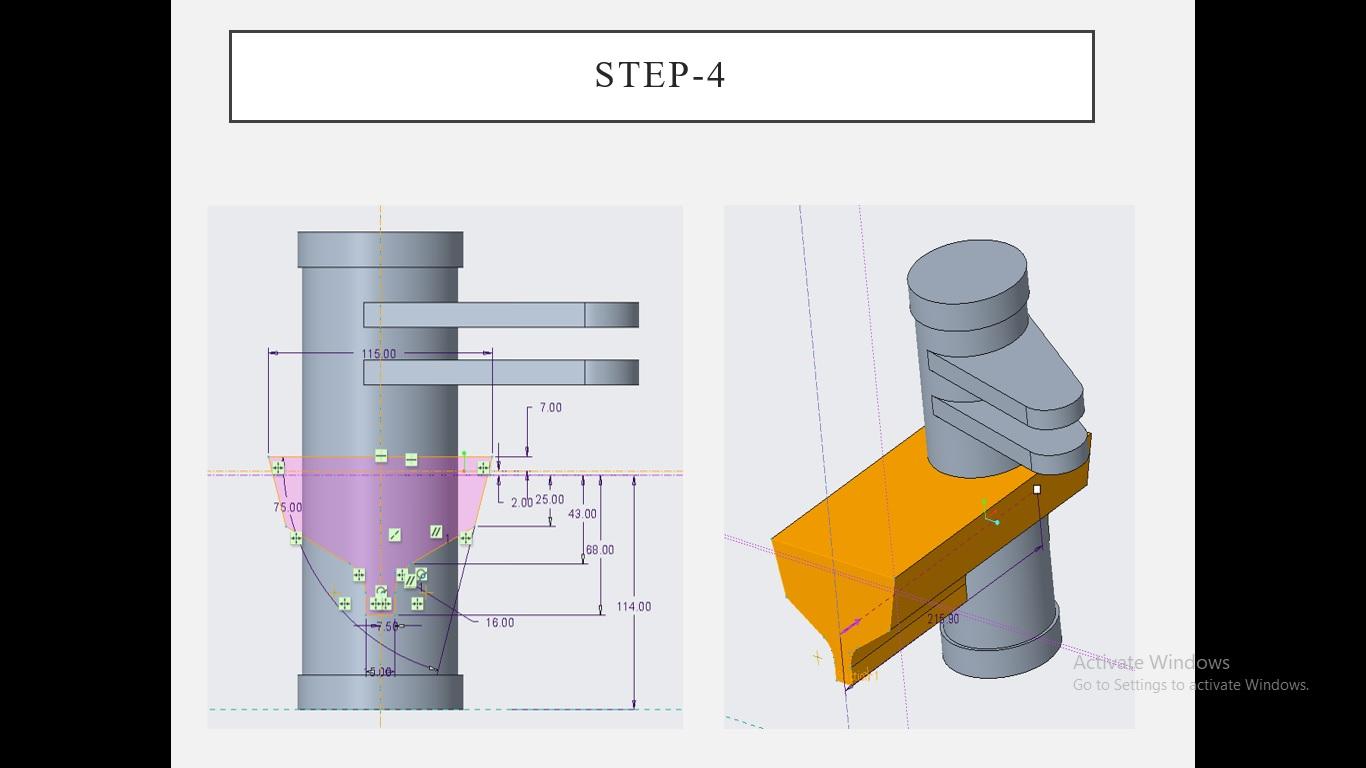

4. Step 4:




















5. Step 5:

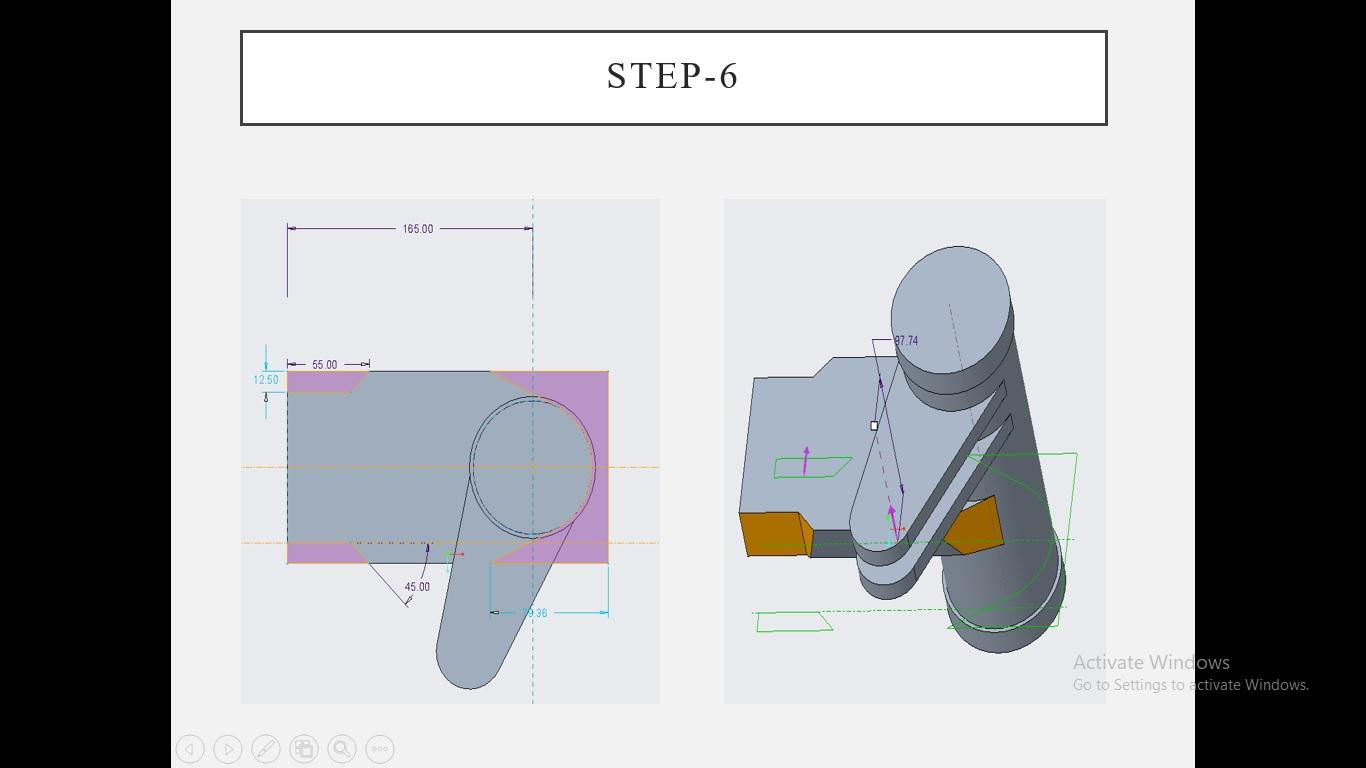

6. Step 6:





















7. Step 7:

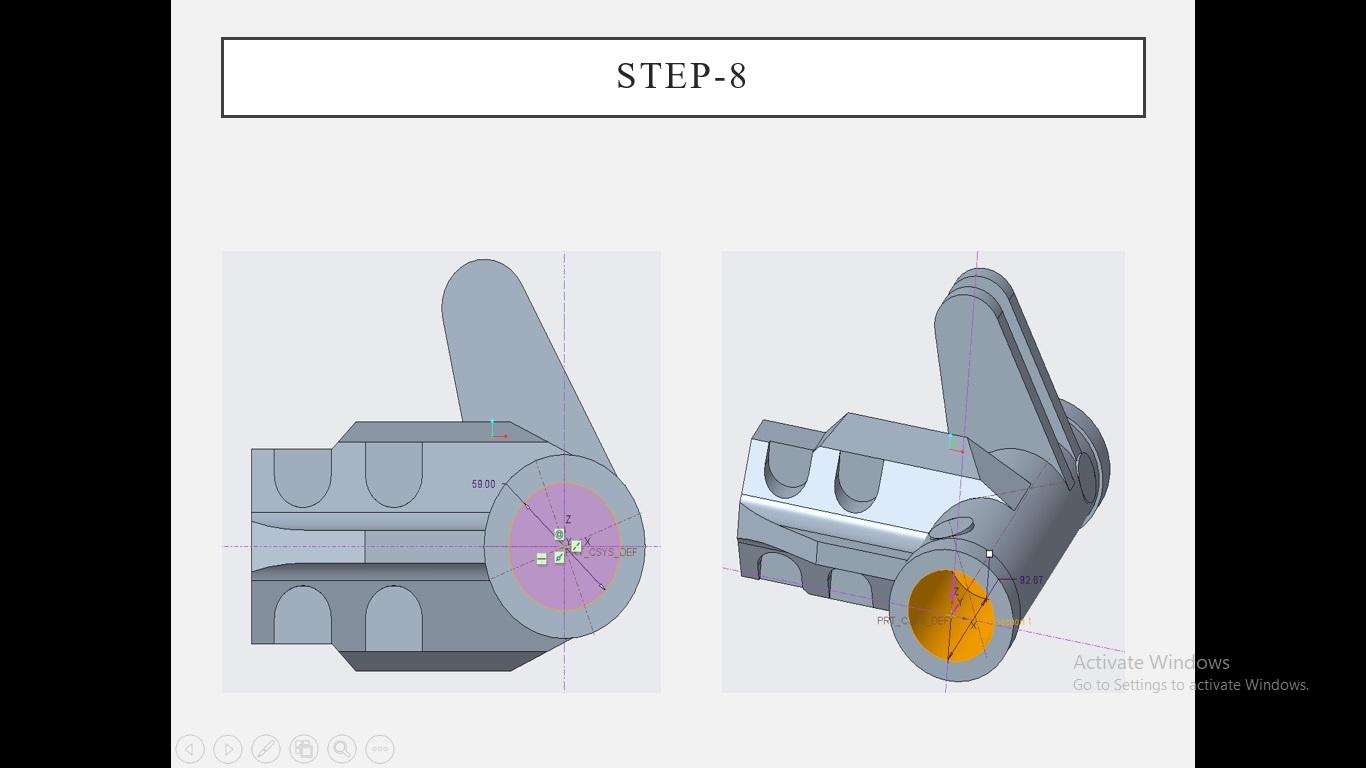

8. Step 8:









9. Step 9:

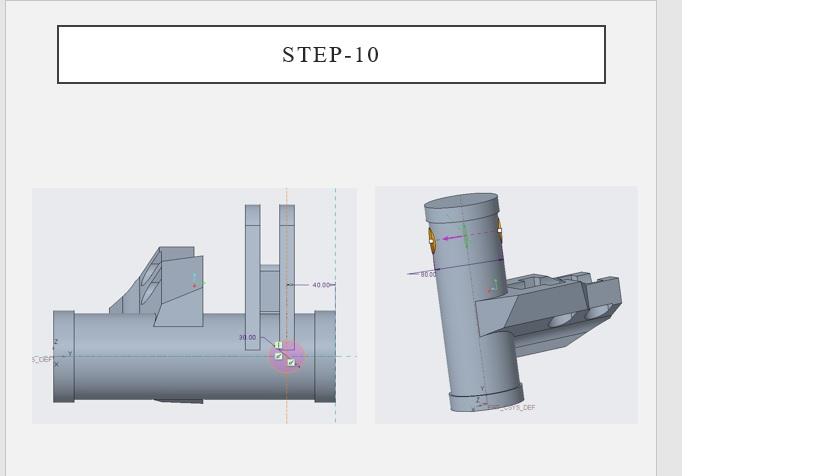

10. Step 10:









11. Step 11:

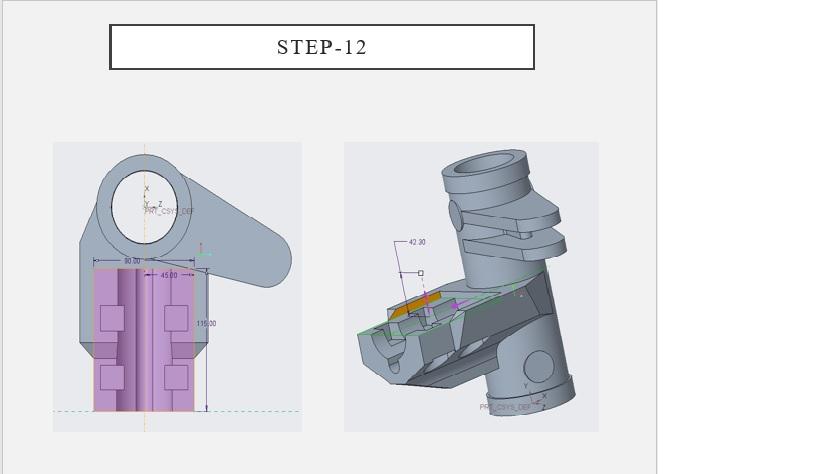

12. Step 12:









13. Step 13:












14. Step 14:



















15. Step 15:
