Universal Lateral Trainer Casing Design Challenge

The goal of this industrial design challenge is to design the casings for two different Helix Lateral Trainers using as many common plastic injection parts as possible.

What is a Helix Lateral Trainer

3 years ago, Helix introduced the world to an exercise technique called Lateral Training with their Helix Lateral Trainer. The exercise machine uses a patented side-to-side motion that studies have shown provides a better aerobic workout than traditional cardio training. Thanks to extensive research and testing, this movement has also been found to be beneficial in the seated (recumbent) position. Given this, Helix intends to introduce a second recumbent lateral trainer and as well as a revised upright lateral trainer to complement it. The intent is to have the two models appear as a product family.

About this Challenge

The goal of the Universal Lateral Trainer Casing Design Challenge is to design casings for the two exercise machines (upright and recumbent) with as many common parts between them as possible. For example, if a casing has 4 parts in total, 2 of the parts may appear in both the upright and recumbent versions. To extend the analogy to automobiles, two cars may have the same fender and front bumper, but different hoods and grills in order to accommodate different features. Many of these parts will need to be readily removable so that the machines can be cleaned and otherwise serviced. Some of the casings do not need to be readily removable for service and this is highlighted in the instructions.

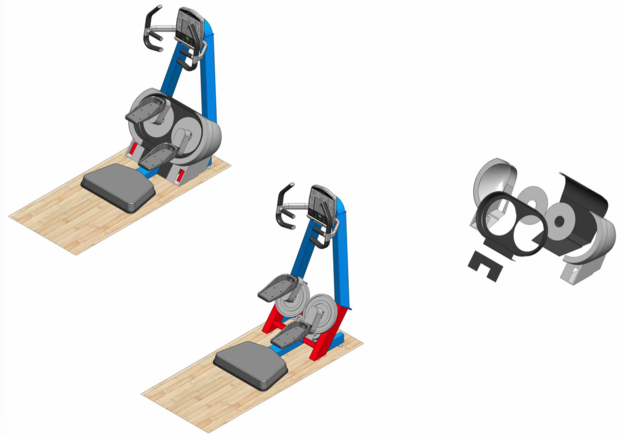

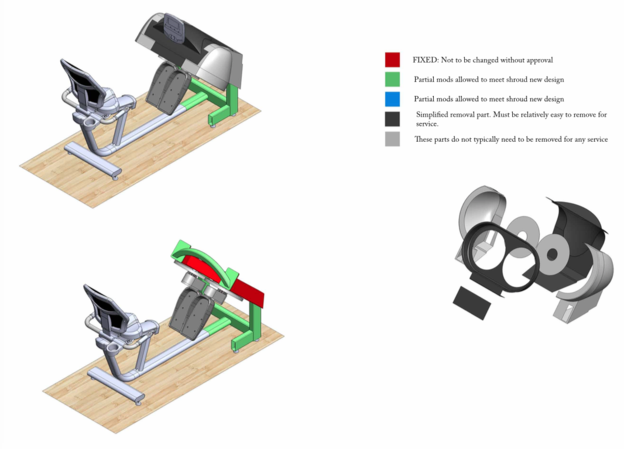

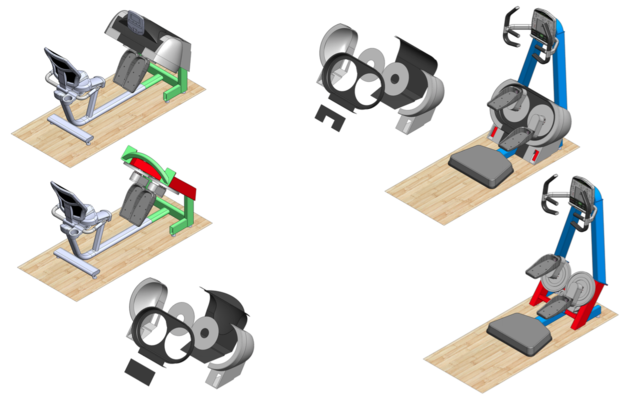

Please refer to the images of the current upright Helix to confirm what is considered the “casings”. IMPORTANT to note that the current design is just a representation of how the machines need to be “shrouded” and not necessarily a suggestion of design.

You can download STEP / IGES files of the trainers and additional instructions below.

Requirements

  • You must include:
    - STEP or IGES version
    - Rendering of your design

  • You are encouraged to include:
    - Solidworks CAD file
    - Why your design is unique and functional

  • Winning casing designs will be:
    - Smooth, aesthetic, simple, matching the trainers.
    - Designs with as many common parts that are used on both units as possible.
    - Specific parts of the casings will be easily removable for repair or service access.
    - Manufacturable with low costs and with common methods.
    - Durable.

  • Technical requirements:
    - The designs must be finalized and fit to the existing metal frame weldments and overall design. You can download Step / Iges file below.
    - Injection mold design is not required. However it is expected that in areas that are suspect to ribbing or otherwise to support the plastic, these additions will be included.
    - Material thickness of the plastic casings should be no less than 4mm.
    - All dimensions should use metric mm.

Download specification

Rules

  • ENTERING THE COMPETITION
    The Challenge is open to everyone except employees and families of GrabCAD and the Sponsor. Multiple entries are welcome. Team entries are welcome.

    By entering the Challenge you:
    1. Accept the official GrabCAD Challenges Terms & Conditions.
    2. Agree to be bound by the decisions of the judges (Jury).
    3. Warrant that you are eligible to participate.
    4. Warrant that the submission is your original work.
    5. Warrant, to the best of your knowledge, your work is not, and has not been in production or otherwise previously published or exhibited.
    6. Warrant neither the work nor its use infringes the intellectual property rights (whether a patent, utility model, functional design right, aesthetic design right, trademark, copyright or any other intellectual property right) of any other person.
    7. Warrant participation shall not constitute employment, assignment or offer of employment or assignment.
    8. Are not entitled to any compensation or reimbursement for any costs.
    9. Agree the Sponsor and GrabCAD have the right to promote all entries.

    If you think an entry may infringe on existing copyrighted materials, please email challenges@grabcad.com

  • SUBMITTING AN ENTRY
    Only entries uploaded to GrabCAD through the "Submit entry" button on this Challenge page will be considered an entry. Only public entries are eligible.

    We encourage teams to use GrabCAD Workbench for developing their entries.

    Entries are automatically given the tag "trainercasing" when uploading to GrabCAD. Please do not edit or delete this tag. Only entries with valid tag will participate in the Challenge.

  • AWARDING THE WINNERS
    The sum of the Awards is the total gross amount of the reward. The awarded participant is solely liable for the payment of all taxes, duties and other similar measures if imposed on the reward pursuant to the legislation of the country of his/her residence, domicile, citizenship, workplace, or any other criterion of similar nature. Only 1 award per person.
    All judging decisions are final.

    All winners will be contacted by the GrabCAD staff to get their contact information and any other information needed to get the prize to them. Payment of cash awards is made through PayPal. All team awards will be transferred to the member who entered the Challenge.

    We will release the finalists before the announcement of the winners to give the Community an opportunity to share their favorites in the comments, discuss concerns, and allow time for any testing or analysis by the Jury. The Jury will take the feedback into consideration when picking the winners.

    Winning designs will be chosen based on the Rules and Requirements.
    - Entry deadline is April 13, 2015 (11:59pm UTC).
    - Winners will be announced by May 11, 2015.

    Void where prohibited.

Prizes

$3,500 prize pool

1st Place

$2,000 cash

2nd Place

$1,000 cash

3rd Place

$500 cash

About Helix

Helix Company has developed The Helix Lateral Trainer, the most revolutionary cardio fitness machine since the elliptical. It targets & shapes your entire lower body - glutes, inner & outer thighs. As the only machine to work the lower body side to side, the Helix is a revolutionary breakthrough in fitness systems. The results -- strengthening & shaping of the entire lower body - are made-to-order for everyone from competitive athletes to women seeking to tone up exactly the areas Helix focuses upon. The patented "figure 8" motion allows users to tone and strengthen trouble areas, while getting a great cardio workout at the same time.
