How to model a Lamborghini Aventador rim on Solidworks?

By Andreas Gkertsos on 22 Feb 10:43 10 answers 6268 views 6 comments

this is a tutorial about how to model a lamborghini aventador wheel in solidworks...

10 answers

  • Andreas Gkertsos
    Andreas Gkertsos over 2 years ago

    The steps...

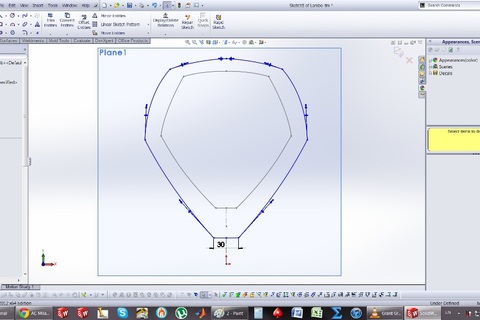

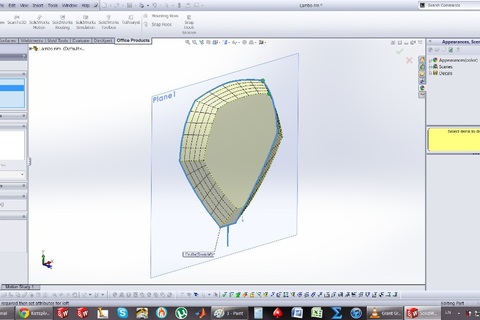

    1. Step 1

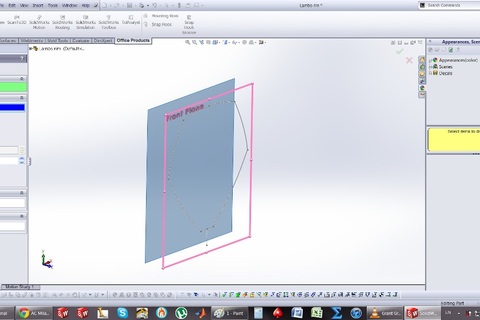

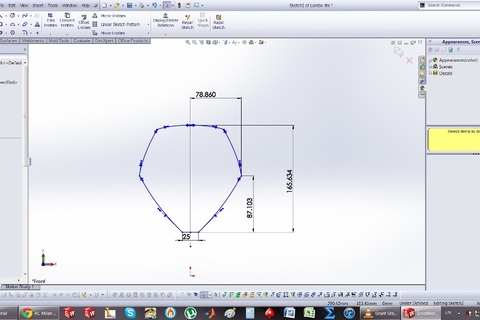

      Front plane -> sketch... we sketch the following shape...

      Medium

    2. Step 2

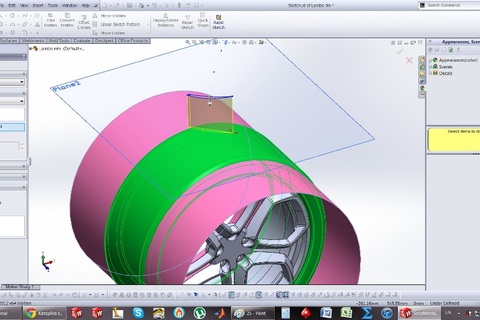

      create an offset plane from front plane.

      Medium

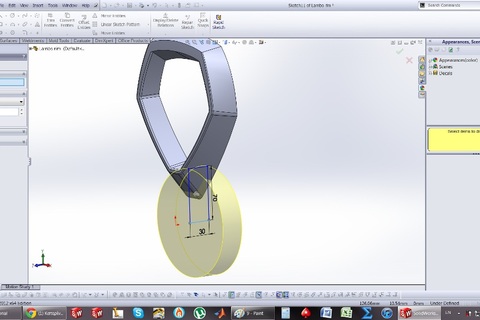

    3. Step 3

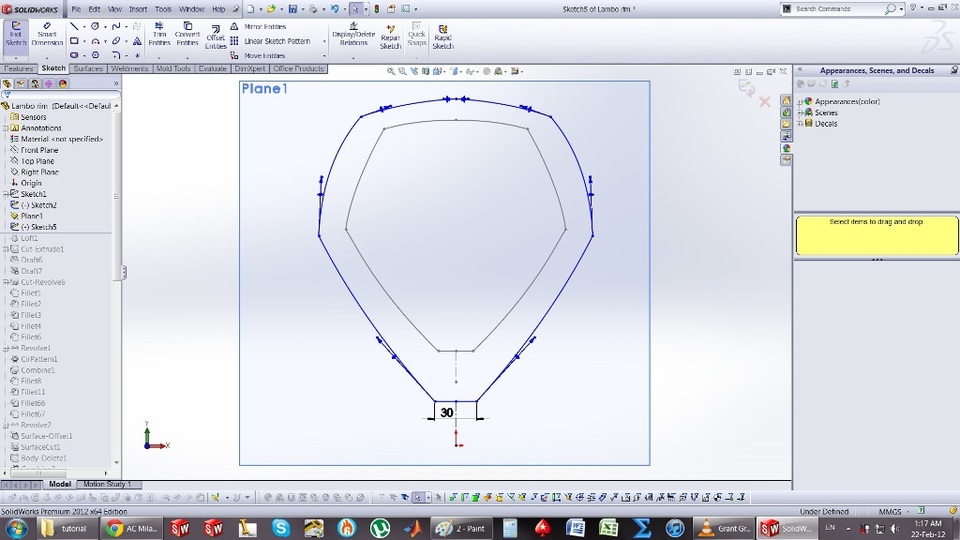

      another sketch...

      Medium

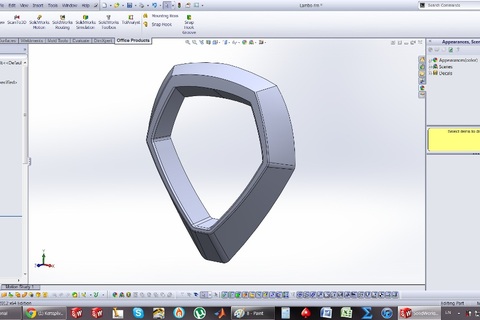

    4. Step 4

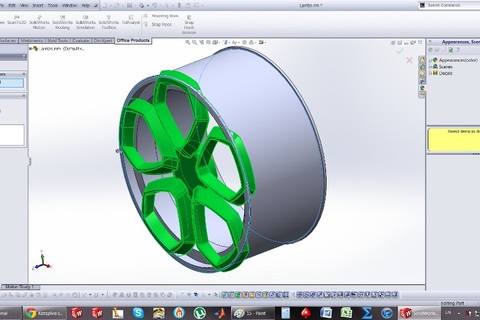

      loft the 2 sketches...

      Medium

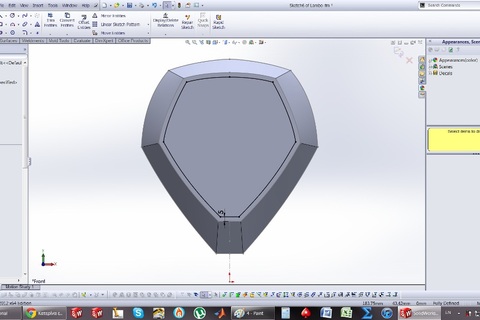

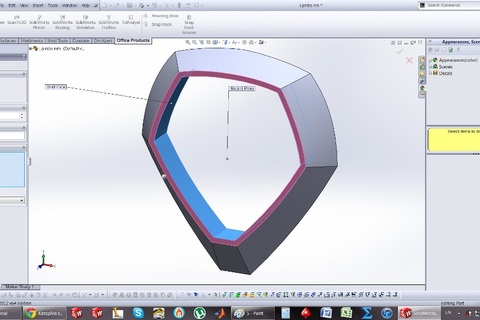

    5. Step 5

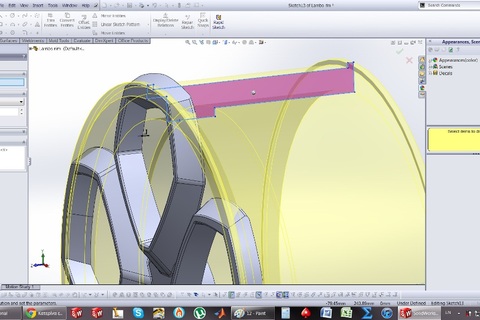

      create an offset sketch at the front face,

      Medium

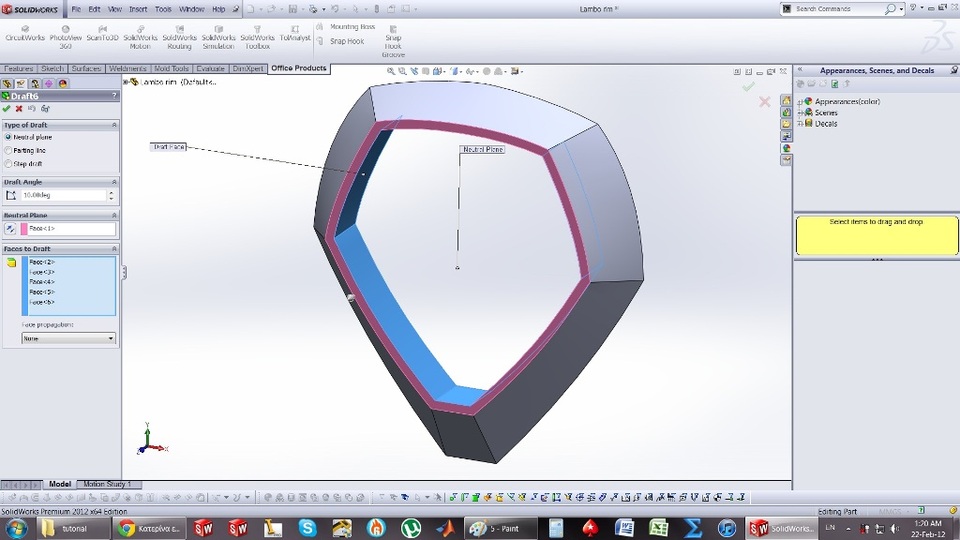

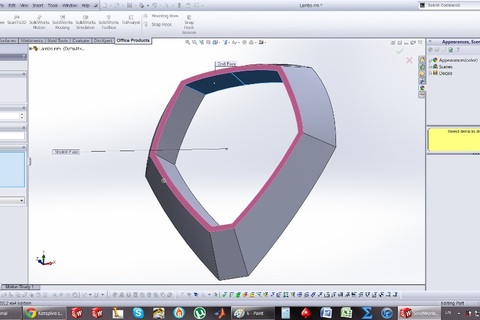

    6. Step 6

      extrude cut it, and then draft the inner faces..

      Medium

    7. Step 7

      then the top one..

      Medium

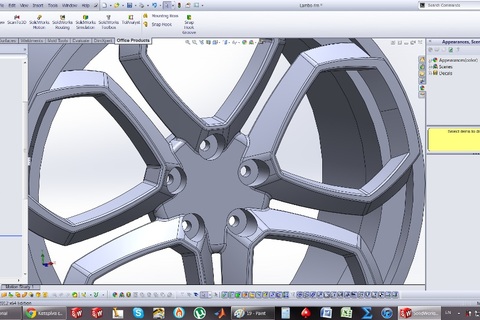

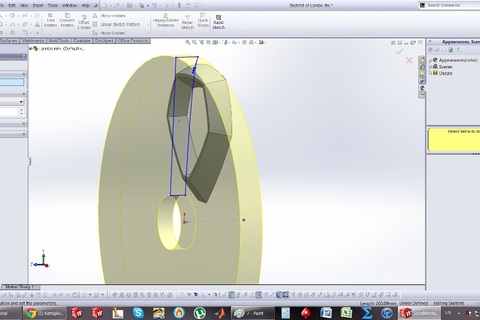

    8. Step 8

      revolve cut the front face to give it the final shape...

      Medium

    9. Step 9

      added some fillets...

      Medium

    10. Step 10

      revolve without merging result...

      Medium

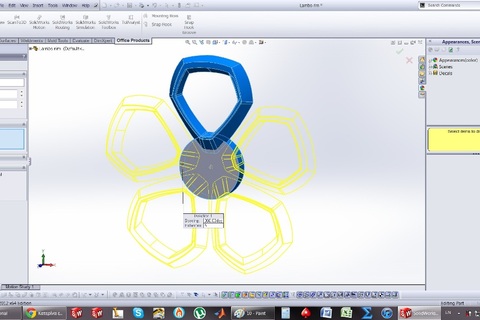

    11. Step 11

      circular pattern with bodies..

      Medium

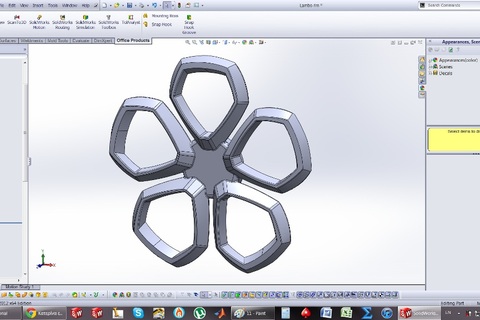

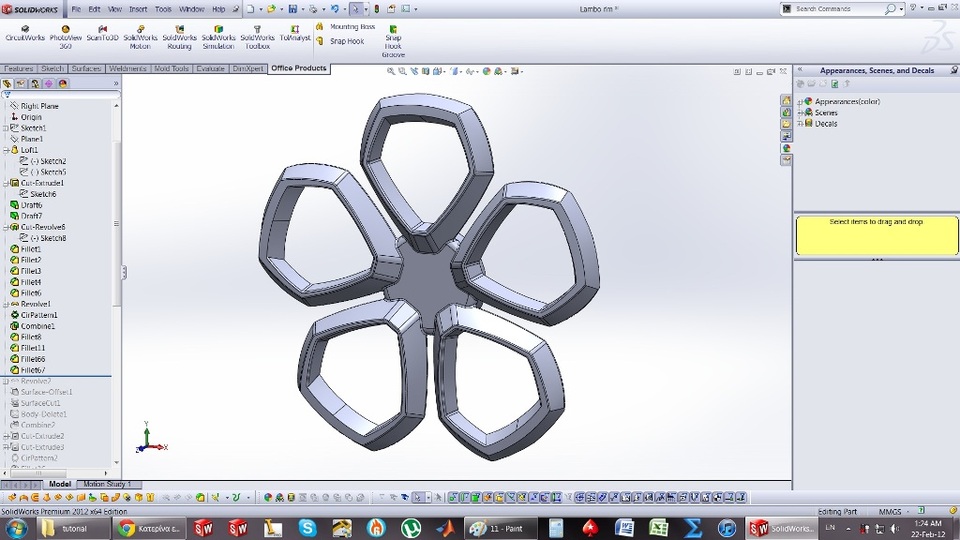

    12. Step 12

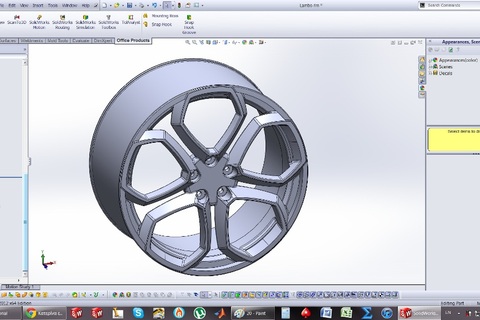

      and finally combine all bodies together.

      Medium

    13. Step 13

      revolve withoun merging result

      Medium

    14. Step 14

      offset that surfaces,

      Medium

    15. Step 15

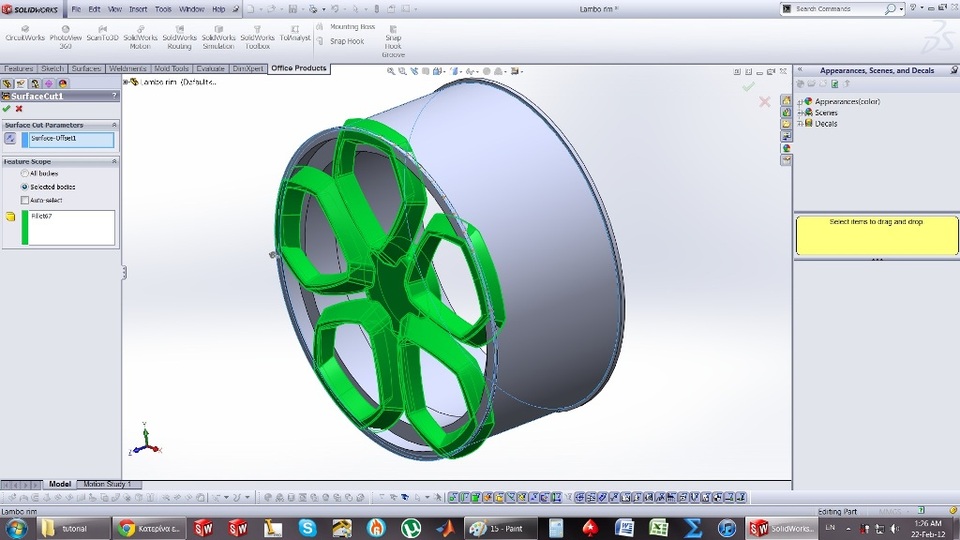

      cut with surface

      Medium

    16. Step 16

      combine.

      Medium

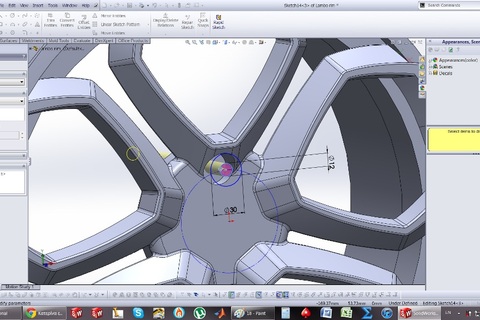

    17. Step 17

      cut extrude from front plane...

      Medium

    18. Step 18

      again...

      Medium

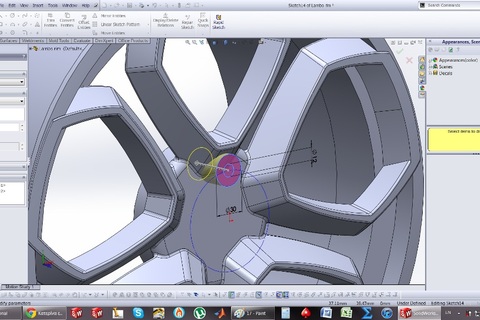

    19. Step 19

      circular pattern...

      Medium

    20. Step 20

      added some fillets...

      Medium

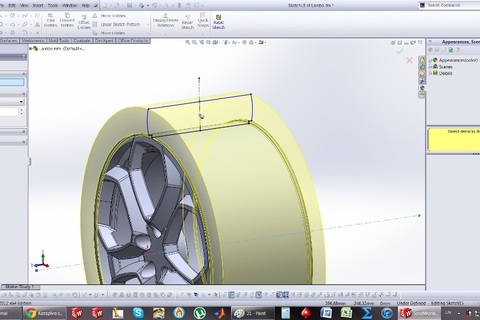

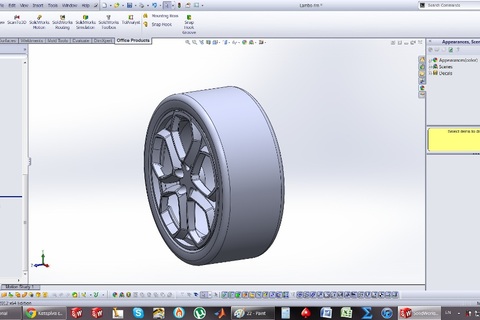

    21. Step 21

      revolve the tyre...

      Medium

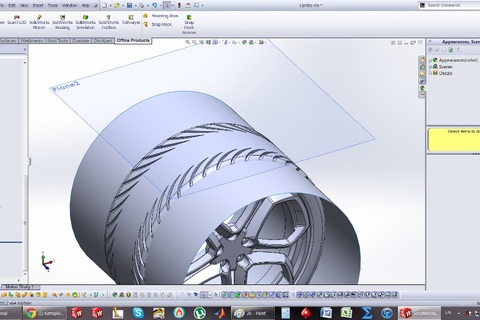

    22. Step 22

      fillet...

      Medium

    23. Step 23

      create offset surface...

      Medium

    24. Step 24

      extend

      Medium

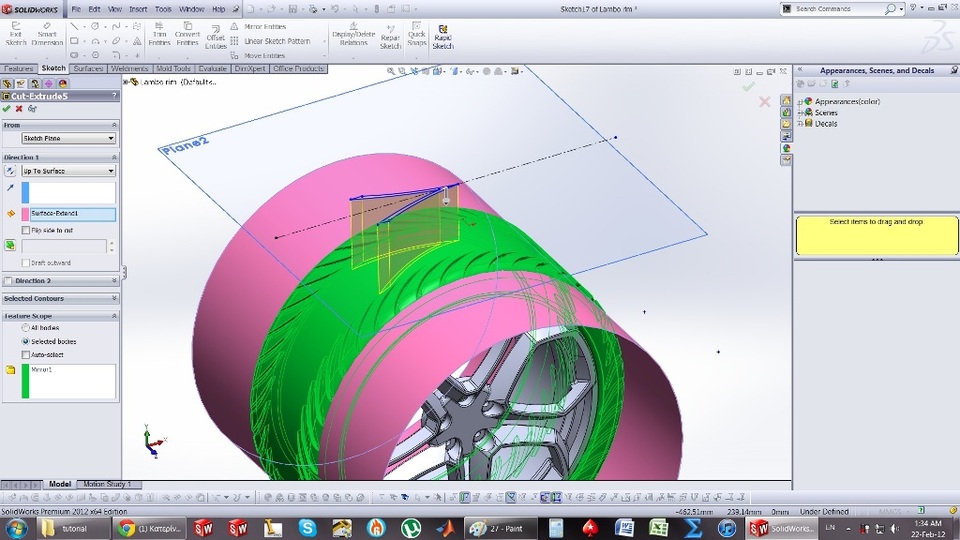

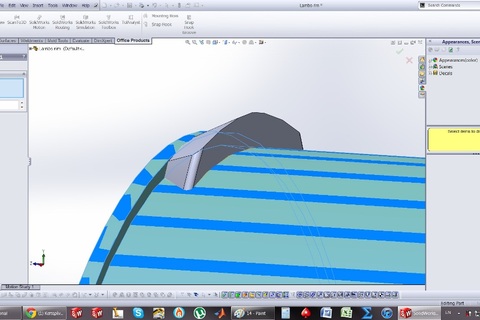

    25. Step 25

      cut up to surface..

      Medium

    26. Step 26

      pattern and mirror

      Medium

    27. Step 27

      cut up to surface again...

      Medium

    28. Step 28

      patern...

      Medium

    29. Step 29

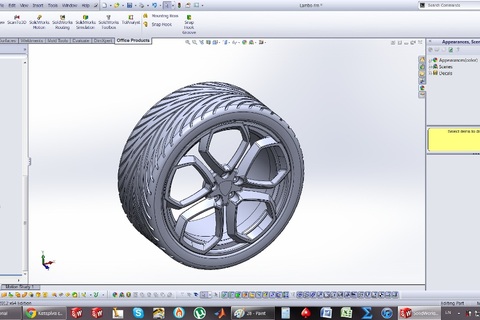

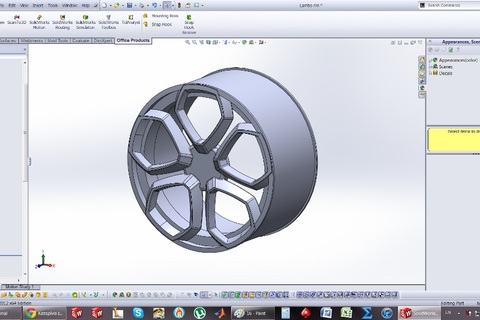

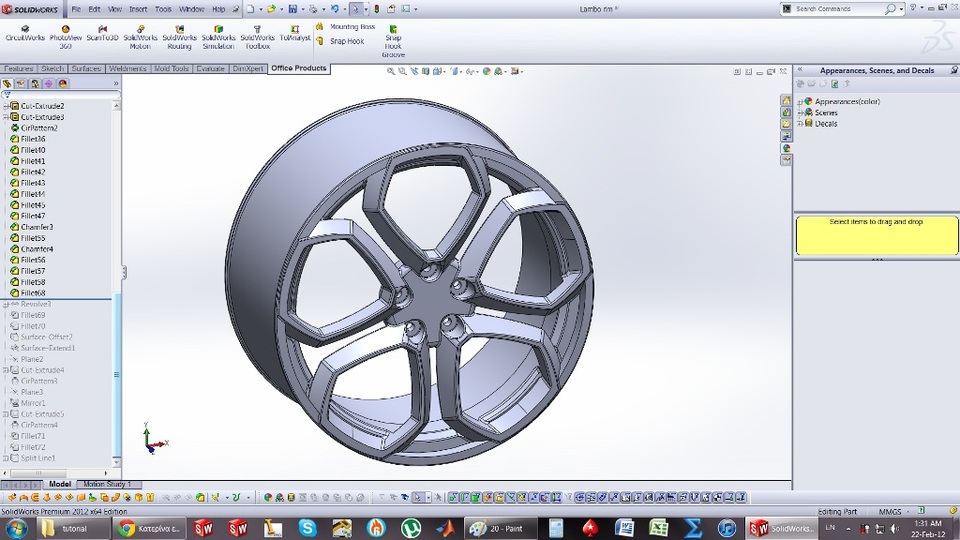

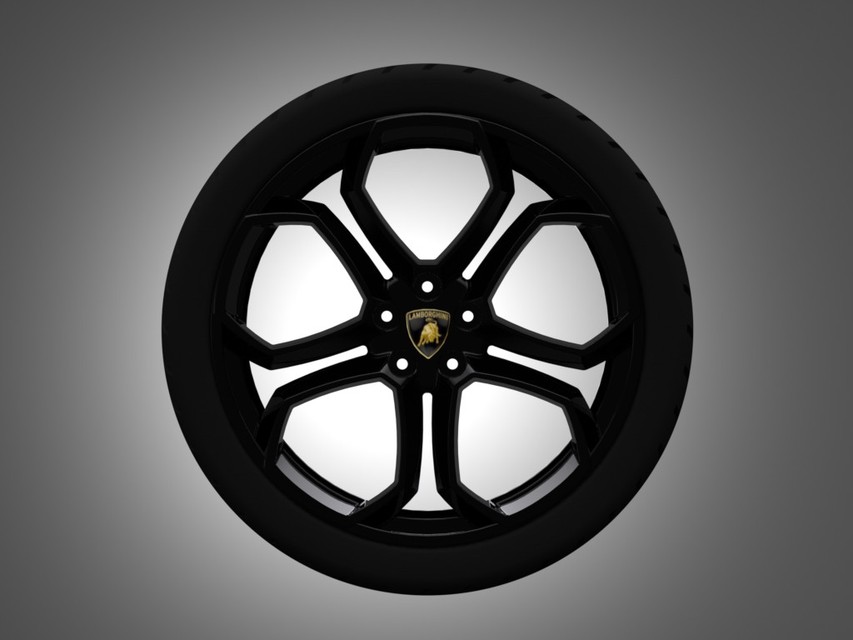

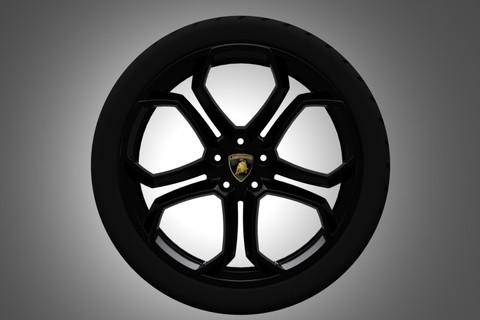

      And here is the result...
