  following general steps to make top down assembly from skeleton model

  1. Step 1

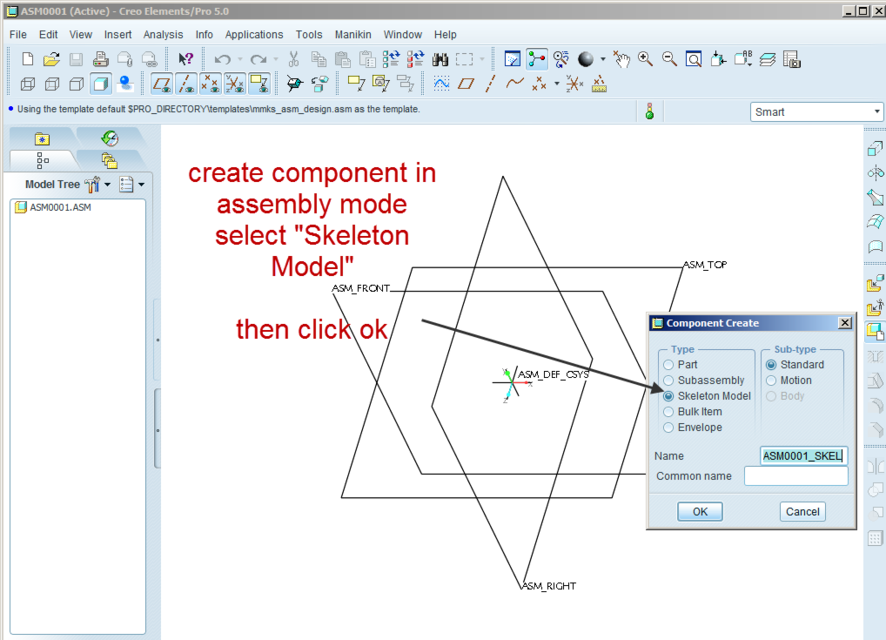

     create component in assembly mode then select skeleton model



  2. Step 2

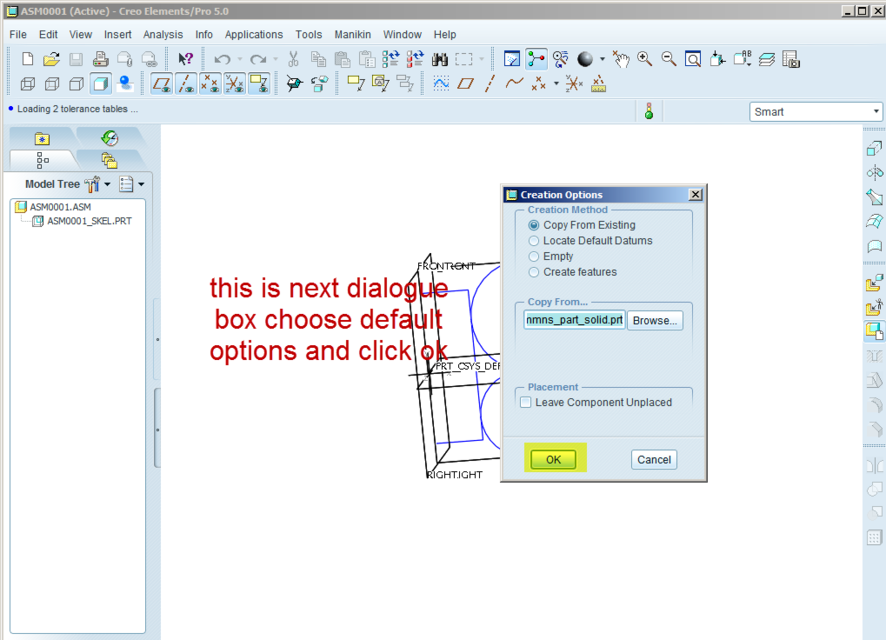

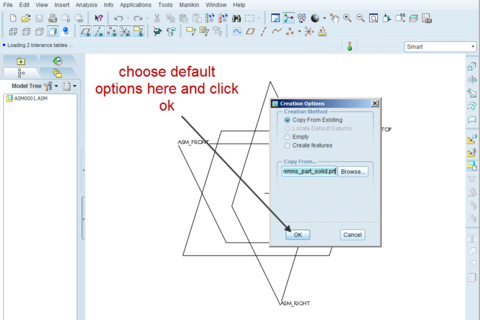

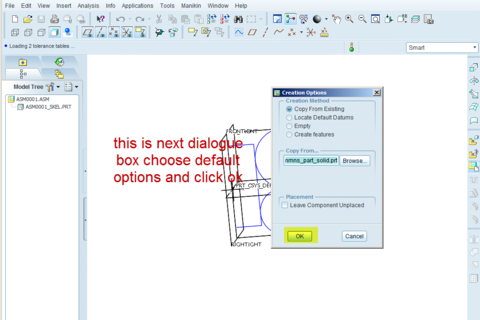

     choose default options and click ok



  3. Step 3

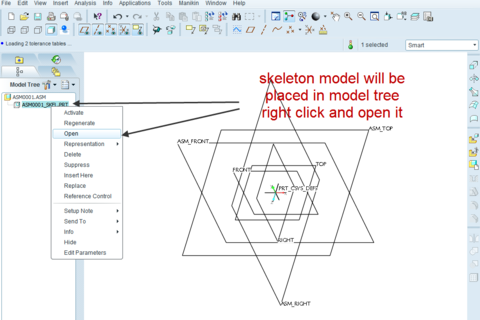

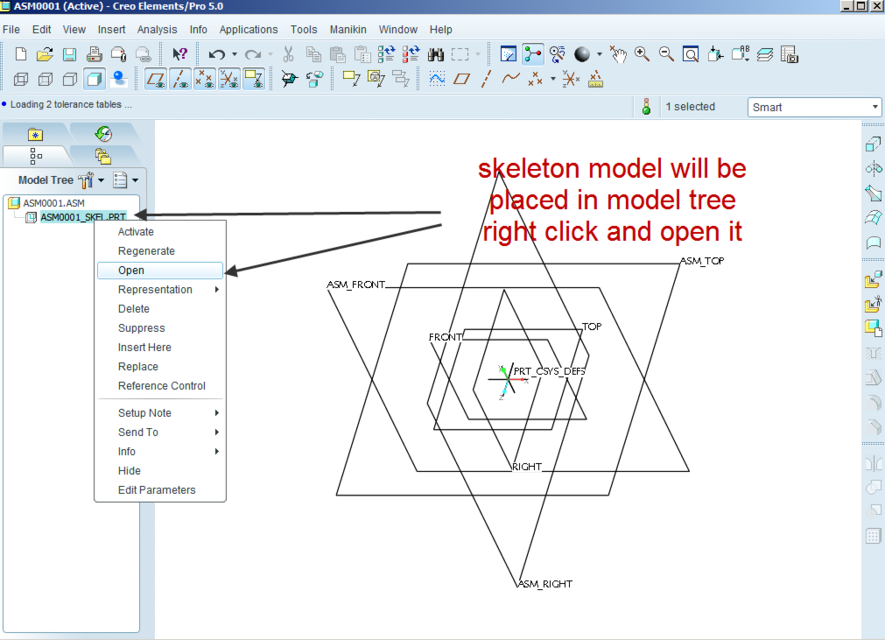

     skeleton model appears in assembly model tree right click and open it



  4. Step 4

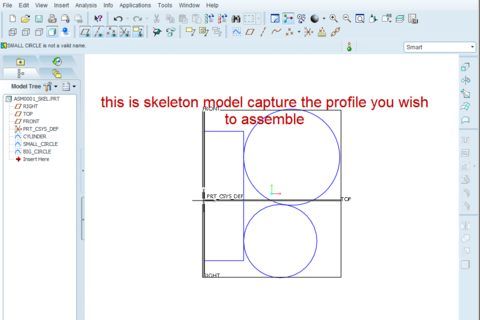

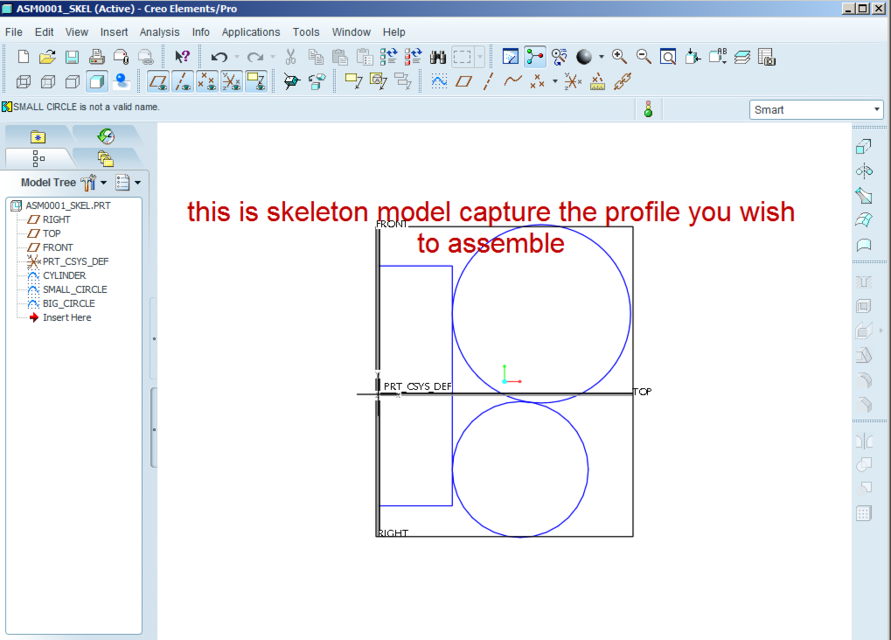

     capture the outline of assembly in skeleton model



  5. Step 5

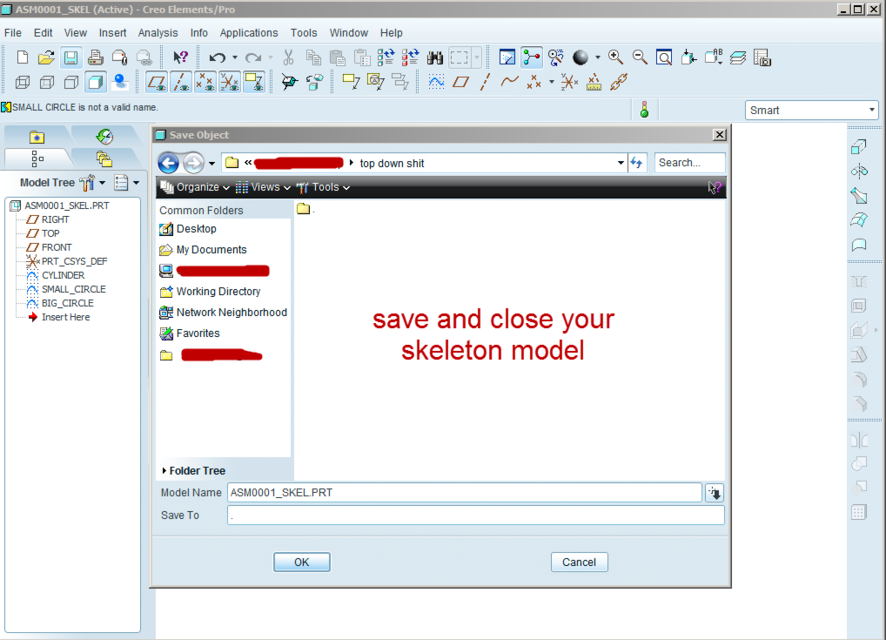

     save and close your skeleton



  6. Step 6

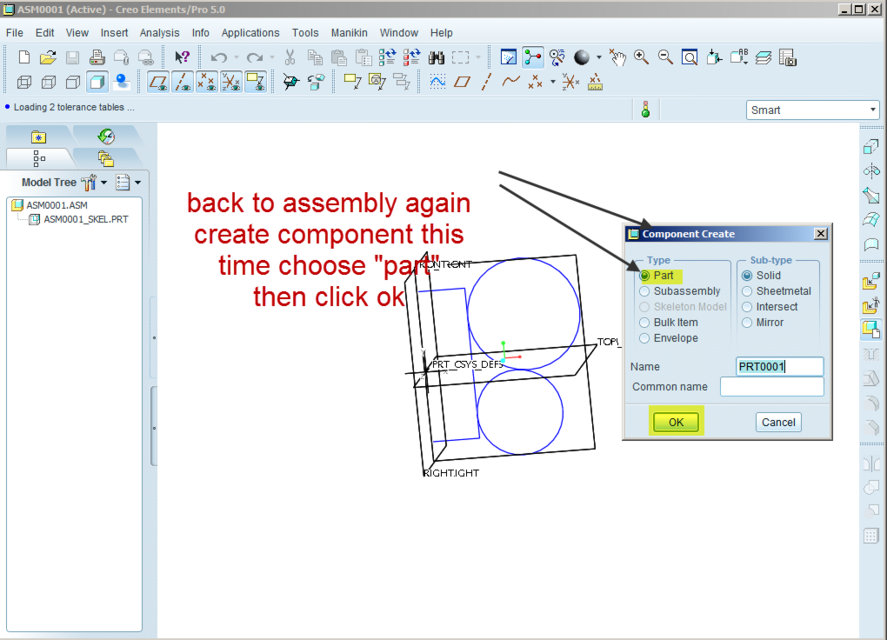

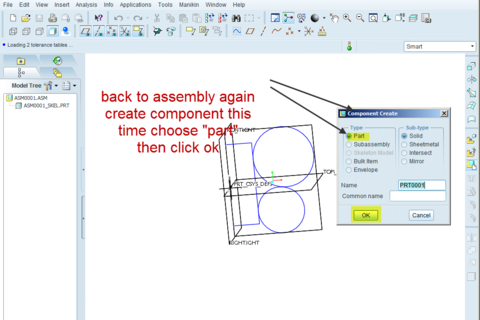

     back to assembly again create another part this time select solid in subtype



  7. Step 7

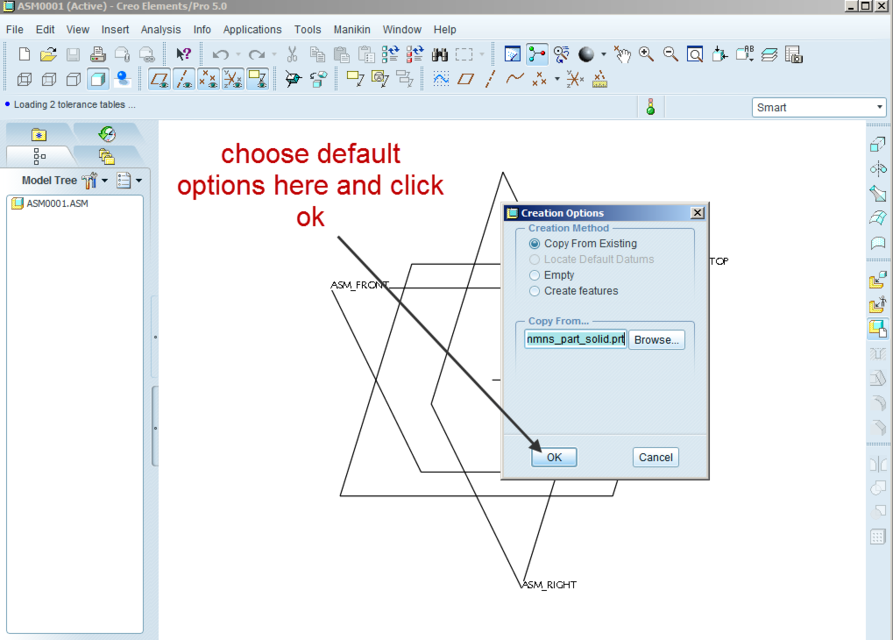

     choose default options here.



  8. Step 8

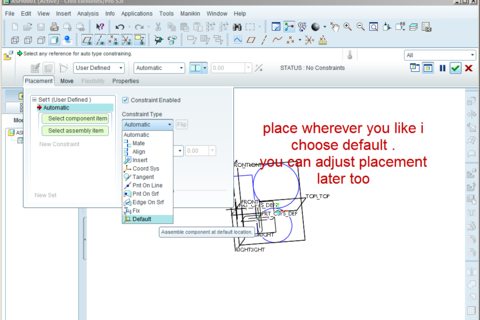

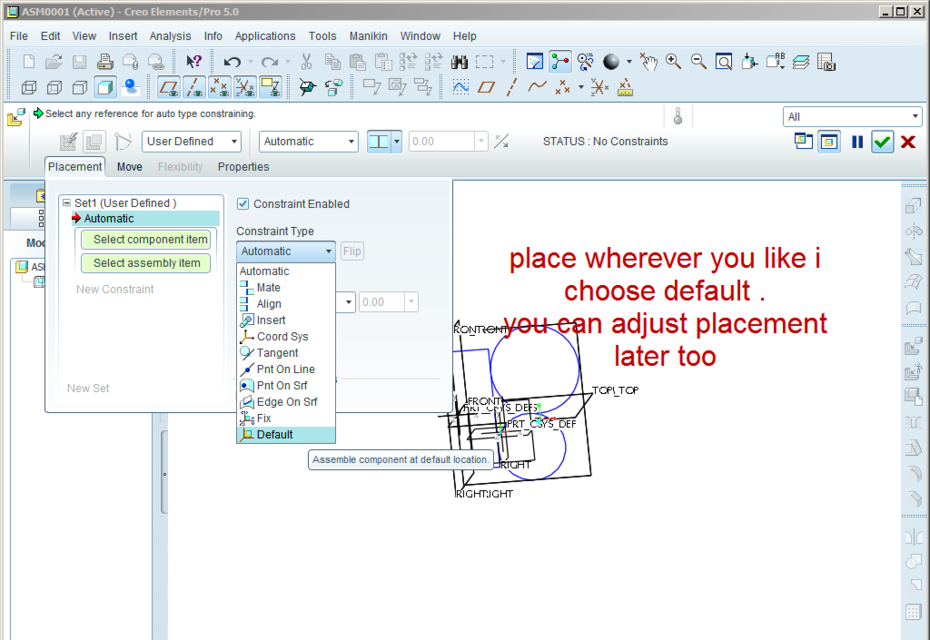

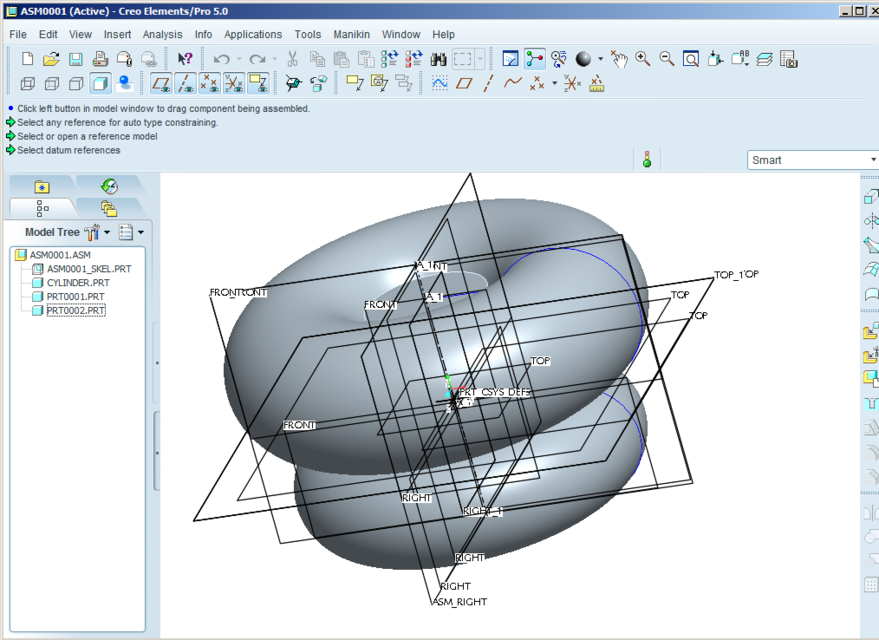

     place the component wherever you like,it's not known at this stage as where component will be placed,it can be tweaked later



  9. Step 9

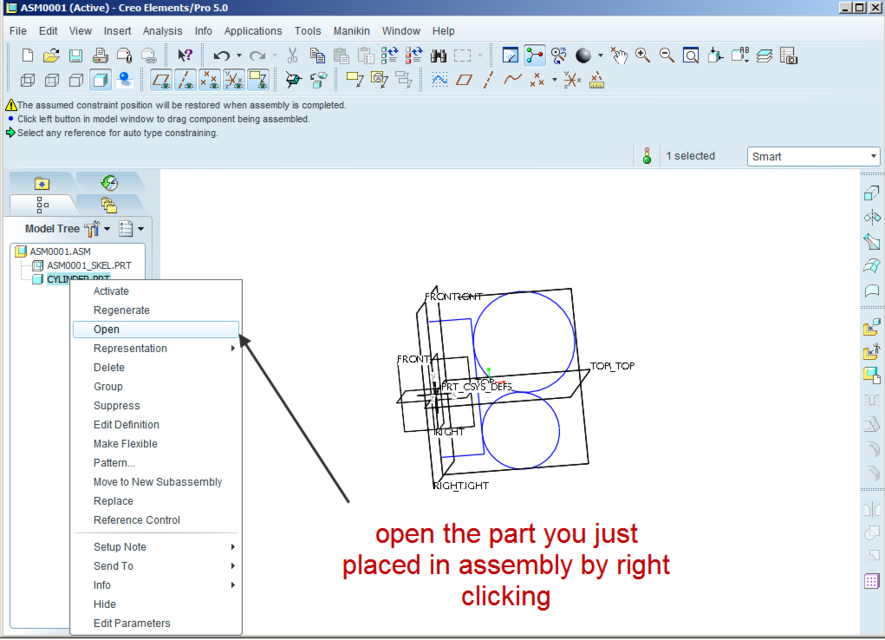

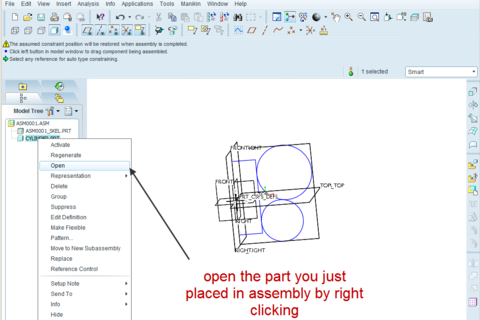

     open this newly placed part from model tree



  10. Step 10

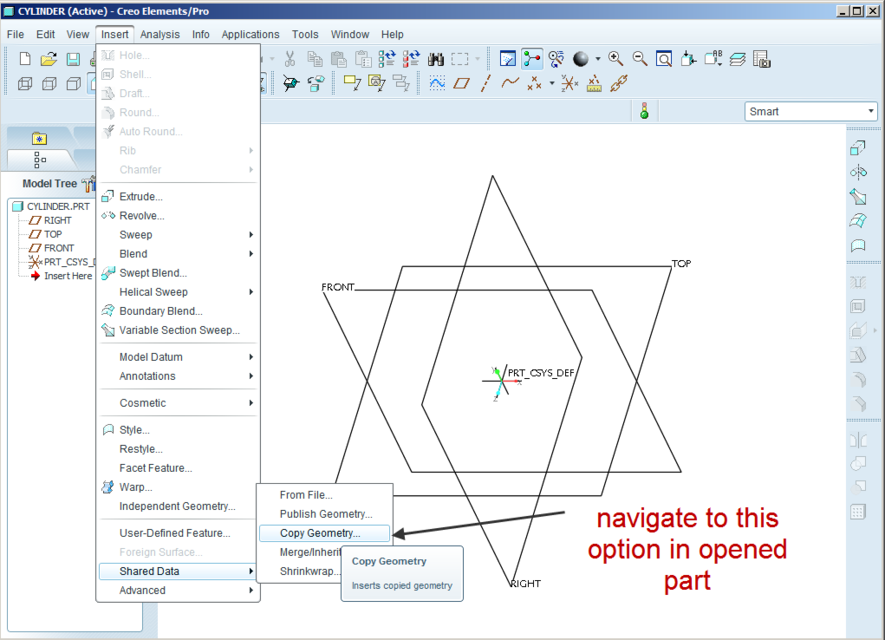

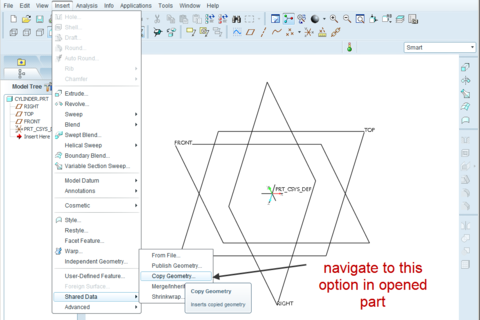

      to copy geometry from skeleton part navigate insert>shared data>copy geometry



  11. Step 11

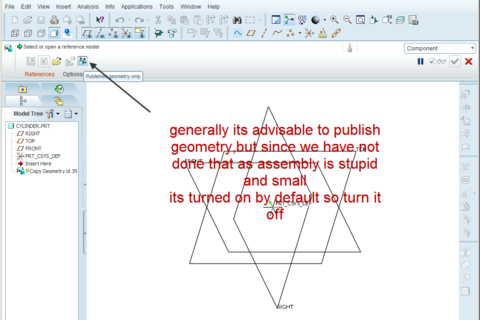

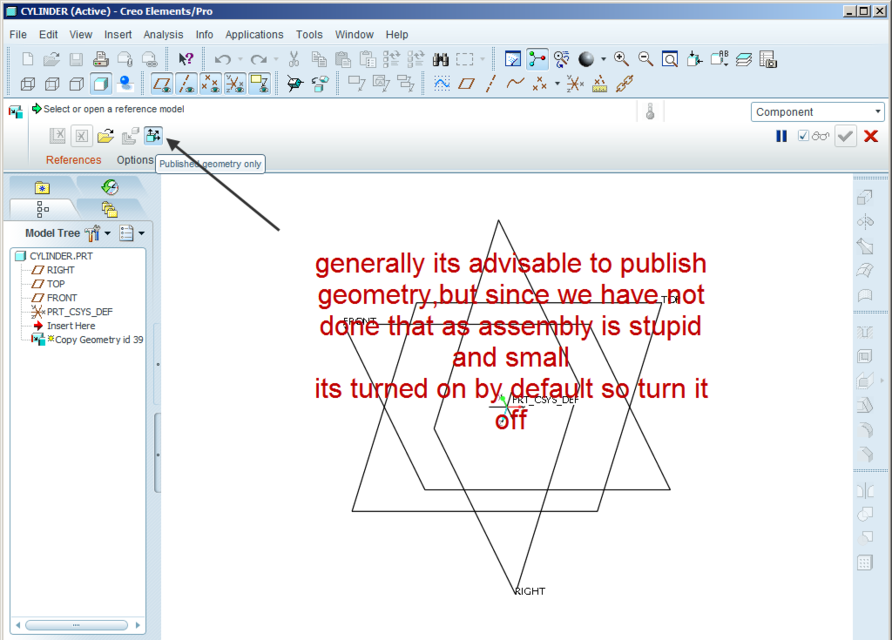

      i have not published geometry from assembly so have to turn off this option



  12. Step 12

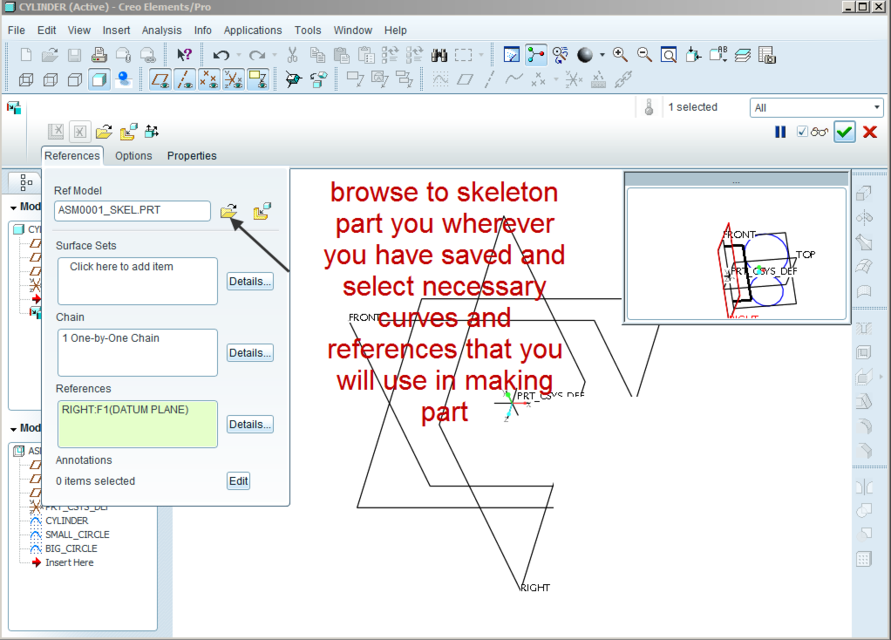

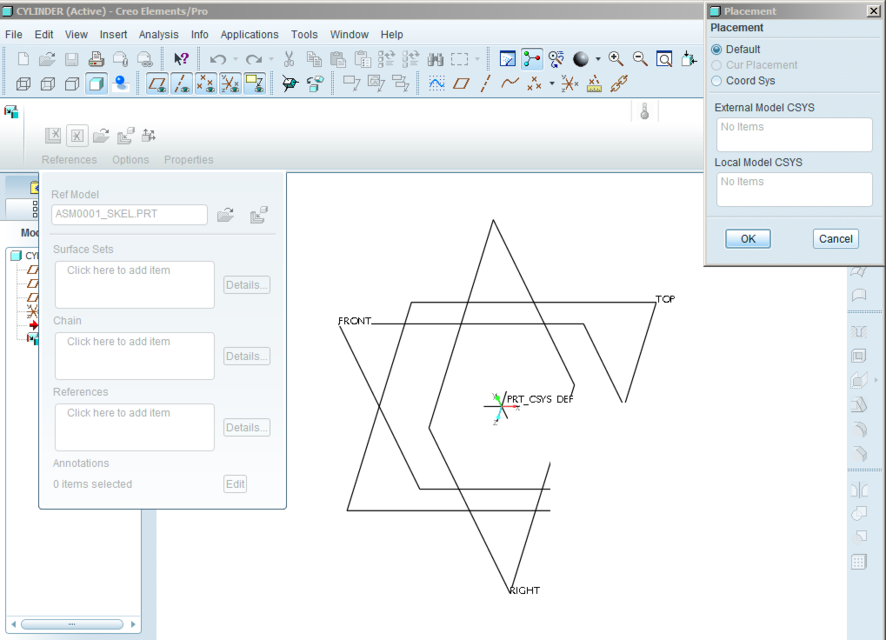

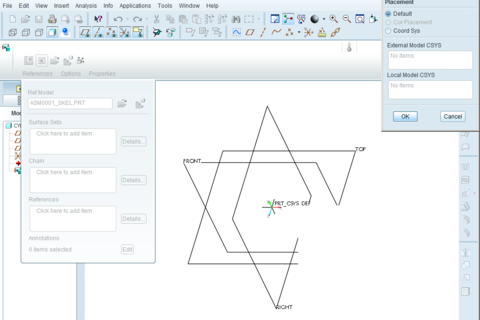

      from reference tab browse to skeleton part ,you can use default options here



  13. Step 13

      from reference tab browse to skeleton part select geometry whatever you need to make part



  14. Step 14

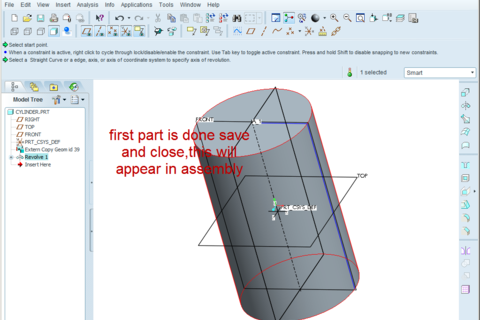

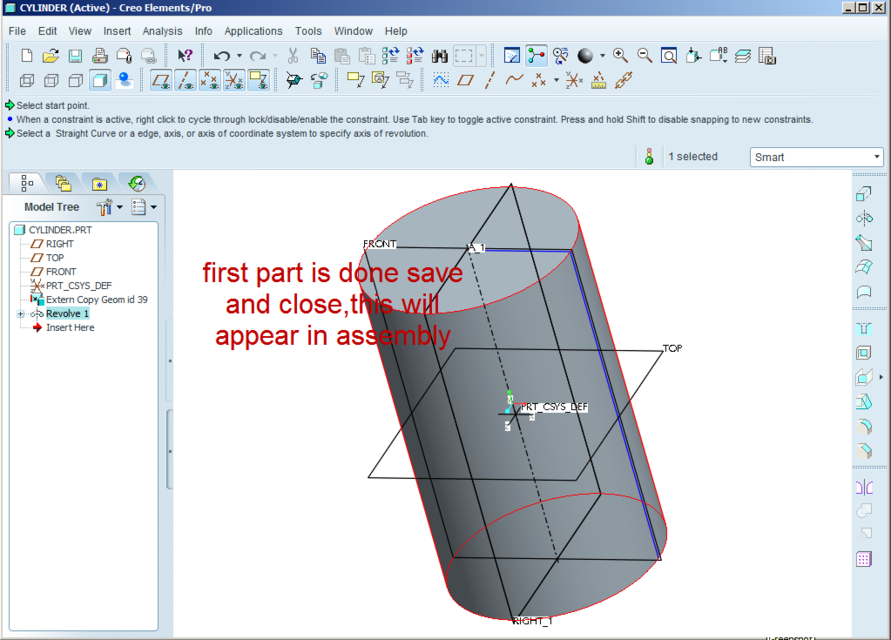

      make part with copied geometry save and close



  15. Step 15

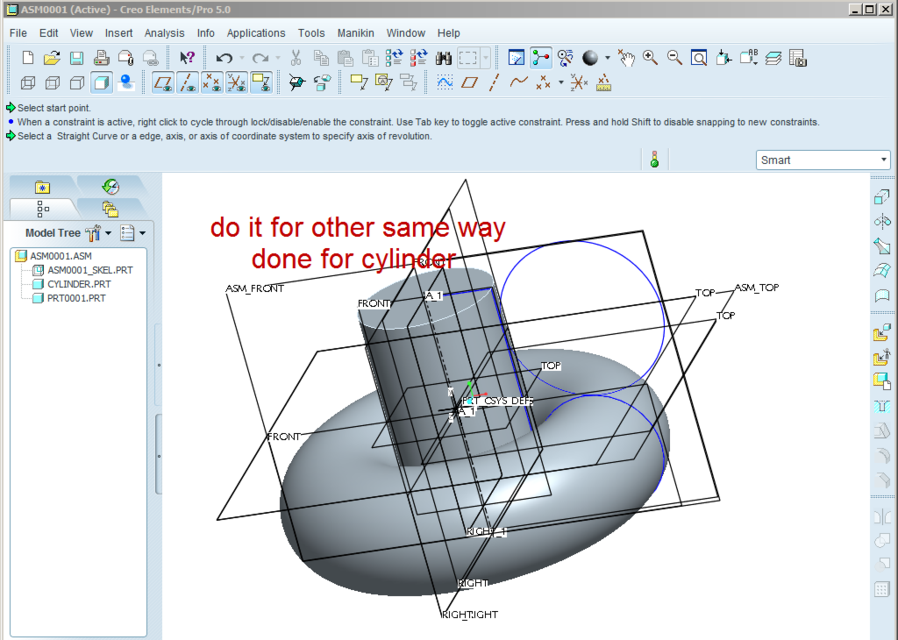

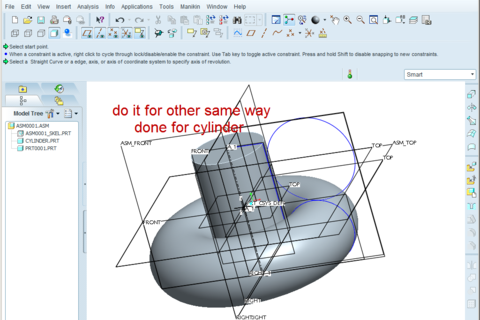

      when you save the part,it appears in assembly,same way do it for other geometry.



  16. Step 16

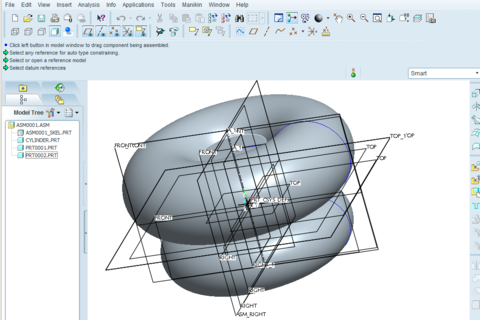

      completed assembly
